Transfer Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the seal ring to the transfer driven gear assembly.
    NOTE:
    • Use new seal rings.
    • When installing the seal rings, do not expand the seal rings too much.
    • Apply CVTF to the seal rings.
    Fig 1: Locating Seal Ring To Transfer Driven Gear Assembly
    G08317901Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear assembly.

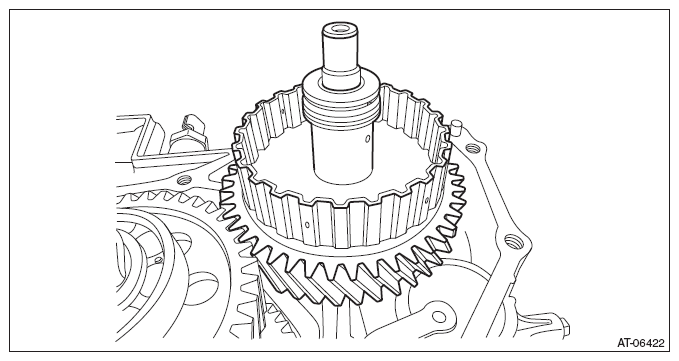

    Fig 2: Installing Transfer Driven Gear Assembly
    G08317923Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>INSTALLATION .
  4. Select the transfer driven gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>ADJUSTMENT .
  5. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
  6. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
