Transmission Control Device: Installation

WARNING: This page is about a different variant/trim than selected.

Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Locating Parking Support Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
Install the manual valve.

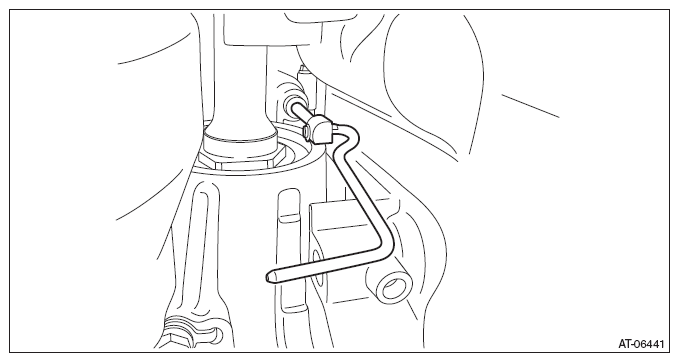

Fig 2: Installing Manual Valve
Courtesy of SUBARU OF AMERICA, INC.
Install the shifter arm shaft and bolt.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

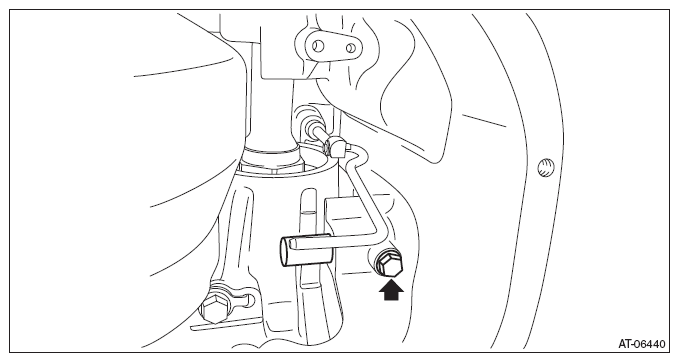

Fig 3: Locating Shifter Arm Shaft Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the parking rod to the manual plate.
Insert the parking rod into the transmission case, and install the shift connecting rod of the manual valve to the manual plate.

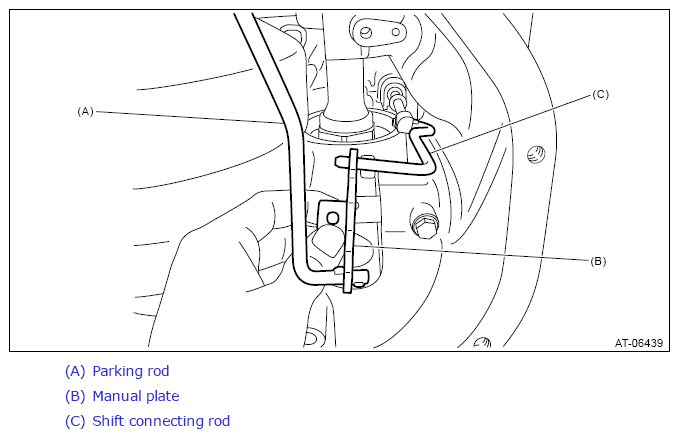

Fig 4: Identifying Parking Rod, Manual Plate And Shift Connecting Rod
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate to the shifter arm shaft.
Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

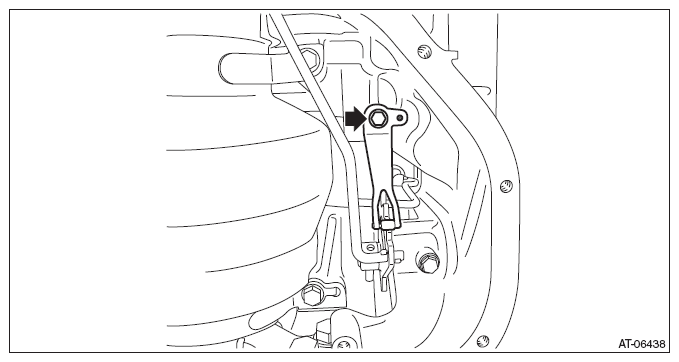

Fig 5: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

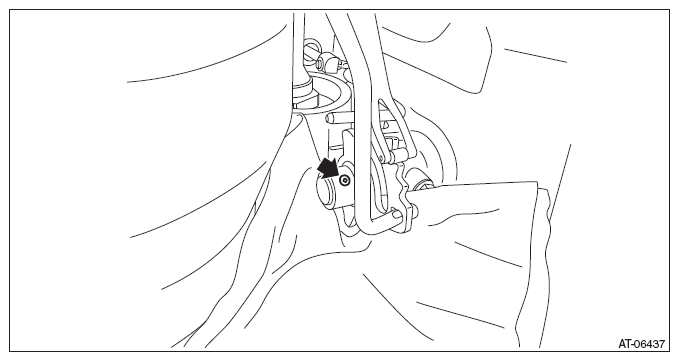

Fig 6: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>INSTALLATION .
Adjust the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>ADJUSTMENT .
Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan and Strainer>INSTALLATION .
Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>INSTALLATION .
