Remove/install complete rear axle - AR35.10-P-0010EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

MODIFICATION NOTES

17.12.14 Stop plate to body screw MODEL 212 BA35.10-P-1003-01N
17.12.14 Stop plate to body screw MODEL 218 BA35.10-P-1003-01N

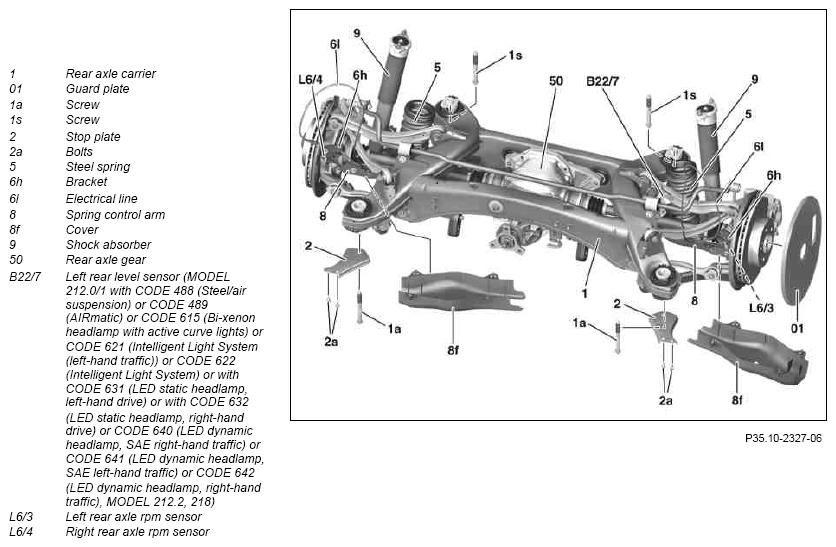

Fig 1: Complete Rear Axle Remove/Install Components
G09976297DANGERDANGERNOTESNOTESIMPORTANTREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSINSTALLATION NOTESREFER TO MAINTENANCETORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLINSTALLATION NOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION NOTESINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on AIRmatic   AH32.22-P-1000-02EW
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Move transmission into neutral or idle position and release parking brake
2 Empty air springs using diagnostic system MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 498 (Japanese version)
MODEL 212.2

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
    INSTALLATION NOTES
The air spring must be filled as per the specifications.
Otherwise, the air spring may suffer initial damage and it may malfunction at a later stage.

3.1 Switch off ignition and remove transmitter key from electronic ignition lock control unit MODEL 212, 218
without CODE 889 (KEYLESS-GO)

3.2 Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit MODEL 212, 218
with CODE 889 (KEYLESS-GO)

4 Secure vehicle on vehicle lift   AR00.60-P-0100EWS
5 Remove rear road wheels
REFER TO MAINTENANCE     AP40.10-P-4050EW
6 Release left and right underfloor paneling in area of threaded axle connection
7 Remove left and right rear diagonal strut MODEL 212.2, 218.9
TORQUE SPECIFICATION Bolt, rear diagonal strut bracket mount to body *BA61.10-P-1006-01H
8 Remove exhaust system as from connecting point MODEL 212, 218
MODEL 212, 218 with ENGINE 157, 276, 278 AR49.10-P-7100EL
MODEL 212 with ENGINE 156, 272, 273 AR49.10-P-7100EW
MODEL 212, 218 with ENGINE 642, 651 AR49.10-P-7100EWI
MODEL 212 with ENGINE 274 AR49.10-P-7100MR
9 Slacken off threaded connections of propeller shaft center support bearing on frame floor assembly by 3 or 4 turns   AR41.10-P-0050EW
10 Detach propeller shaft from rear axle differential (50)   AR41.10-P-0050EW
IMPORTANT Flex disk remains on propeller shaft.
11 Remove center brake cable   AR42.20-P-0523EW
12 Detach rear right brake wear sensor from electrical connection for rear right brake wear sensor on brake caliper
13 Detach electrical connection for rear right brake wear sensor from brake caliper TORQUE SPECIFICATION Screw/bolt, brake wear sensor to brake caliper *BA42.10-P-1003-12J
14 Detach electrical connection from rear left level sensor (B22/7) and unclip from bracket MODEL 212.0/1
with CODE 488 (Steel/air suspension)
MODEL 212.0/1
with CODE 489 (AIRMATIC)
MODEL 212.0/1
with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 212.0/1
with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 212.0/1
with CODE 622 (Intelligent Light System)
MODEL 212.0/1
with CODE 631 (Headlamps, LED static left-hand traffic)
MODEL 212.0/1
with CODE 632 (Headlamps, LED, static, right-side traffic)
MODEL 212.0/1
with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)
MODEL 212.0/1
with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 212.0/1
with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 212.2
MODEL 218

15 Detach electrical connection from rear right level sensor and unclip from bracket MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2

16 Detach electrical connection of left rear-axle damping valve unit from damper (9) and unclip relevant electrical line (6l) from left bracket (6h) on wheel carrier MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2

17 Detach electrical connection of right rear-axle damping valve unit from damper (9) and unclip relevant electrical line (6l) from right bracket (6h) on wheel carrier MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2

18 Detach left rear-axle rpm sensor (L6/3) and right rear-axle rpm sensor (L6/4) from wheel carrier   AR42.40-P-0820EW
19 Remove covers (8f) from spring control (8) arms
20 Remove steel springs (5) MODEL 212.0/1, 218
without CODE 488 (Steel/air suspension)
without CODE 489 (AIRMATIC)

AR32.20-P-0230EW
21 Remove air springs MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2
When replacing the rear axle or working on the body.

AR32.22-P-1500EW
22 Detach left and right rear brake hose from brake lines When replacing the rear axle or working on the body.
AR42.10-P-0013EW
23 Detach damper (9) at top from body When replacing the rear axle or working on the body.
MODEL 212.0/1
without CODE 488 (Steel/air suspension)
without CODE 489 (AIRMATIC)
MODEL 218.3
without CODE 488 (Steel/air suspension)
without CODE 489 (AIRMATIC)
AR32.25-P-0110EW
MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2
AR32.25-P-0110EWA
24 Detach left and right rear brake caliper from brake caliper support or wheel carrier When replacing the fuel tank or working on the rear axle.
MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292) AR42.10-P-0250EW
MODEL 212.074/075/076/077/092/274/275/276/277/292
MODEL 218.374/375/376/392/974/975/976/992
AR42.10-P-0250CMG
MODEL 218 (except 218.374/375/376/392/974/975/976/992) AR42.10-P-0080EL
25 Unclip air springs from the spring control arms (8) MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2
When replacing the fuel tank or working on the rear axle.

AR32.22-P-1500EW
26 Detach damper (9) from spring control arms (8) When replacing the fuel tank or working on the rear axle.
MODEL 212.0/1
without CODE 488 (Steel/air suspension)
without CODE 489 (AIRMATIC)
MODEL 218.3
without CODE 488 (Steel/air suspension)
without CODE 489 (AIRMATIC)
AR32.25-P-0110EW
MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
MODEL 212.2
AR32.25-P-0110EWA
27 Prop up rear axle differential (50) using telescopic lifter and transmission plate and lash down Transmission jack
Transmission platform

28 Mount guard plates (01)   AR42.00-P-0100-01A
SPECIAL TOOL Guard plate Fig 2
29 Remove bolts (1s) INSTALLATION NOTES
The threads in the frame floor assembly must be recut and blown out as any adhesive residue in the thread will prevent the bolts (1s) from achieving the required preload force, even when tightened to the specified torque and specified angle of rotation.
If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolts (1s), which could ultimately lead to bolt fracture.
INSTALLATION IMPORTANT Replace screw/bolts (1s) with new ones.

TORQUE SPECIFICATION Self-locking bolt of rear elastomer bearing on rear axle carrier to frame floor assembly *BA35.10-P-1002-01N
30 Unscrew bolts (1a, 2a) and remove stop plates (2) INSTALLATION NOTES
The threads in the frame floor assembly must be recut and blown out as any adhesive residue in the thread will prevent the bolts (1a, 2a) from achieving the required preload force, even when tightened to the specified torque and specified angle of rotation.
If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolts (1a, 2s), which could ultimately lead to bolt fracture.
INSTALLATION IMPORTANT Replace bolts (1a, 2a).

TORQUE SPECIFICATION Bolt, stop plate to body *BA35.10-P-1003-01N
TORQUE SPECIFICATION Self-locking bolt of front elastomer bearing on rear axle carrier to frame floor assembly *BA35.10-P-1001-01N
31 Lower rear axle and remove from working area NOTES
Pay attention to fuel lines and electrical cables when lowering.
Otherwise the lines may be damaged.

32 Install in the reverse order
REAR AXLE CARRIER

Number Designation MODEL 212 MODEL 218
BA35.10-P-1001-01N Self-locking bolt of front elastomer bearing on rear axle carrier to frame floor assembly Stage 1 Nm 80 80
Stage 2 loosen loosen
Stage 3 Nm 80 80
Stage 4 ∠° 90 90
REAR AXLE CARRIER

Number Designation MODEL 212 MODEL 218
BA35.10-P-1002-01N Self-locking bolt of rear elastomer bearing on rear axle carrier to frame floor assembly Stage 1 Nm 80 80
Stage 2 loosen loosen
Stage 3 Nm 80 80
Stage 4 ∠° 90 90
REAR AXLE CARRIER

Number Designation MODEL 212 MODEL 218
BA35.10-P-1003-01N Bolt, stop plate to body Nm 30 30
REAR AXLE BRAKE CALIPER

Number Designation MODEL 212 MODEL 218
BA42.10-P-1003-12J Screw/bolt, brake wear sensor to brake caliper Nm 8 8
FRAME FLOOR ASSEMBLY

Number Designation MODEL 212 MODEL 218
BA61.10-P-1006-01H Bolt, rear diagonal strut bracket mount to body Nm 60 60
