Replace brake hoses - AR42.10-P-0013EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212, 218

MODIFICATION NOTES

25.3.14 Brake hose to fixed or floating caliper on front axle   BA42.10-P-1002-04L
3.4.14 Brake hose to fixed or floating caliper on front axle MODEL 212.076/092/276/092 BA42.10-P-1002-04L
3.4.14 Brake hose to fixed or floating caliper on front axle MODEL 218.376/392/976/992 BA42.10-P-1002-04L

Rear brake hose

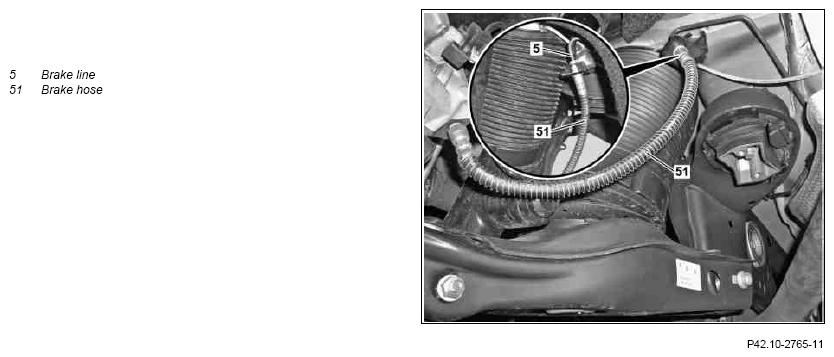

Fig 1: Rear Brake Hoses And Line
G09976529Courtesy of MERCEDES-BENZ USA

Front brake hose

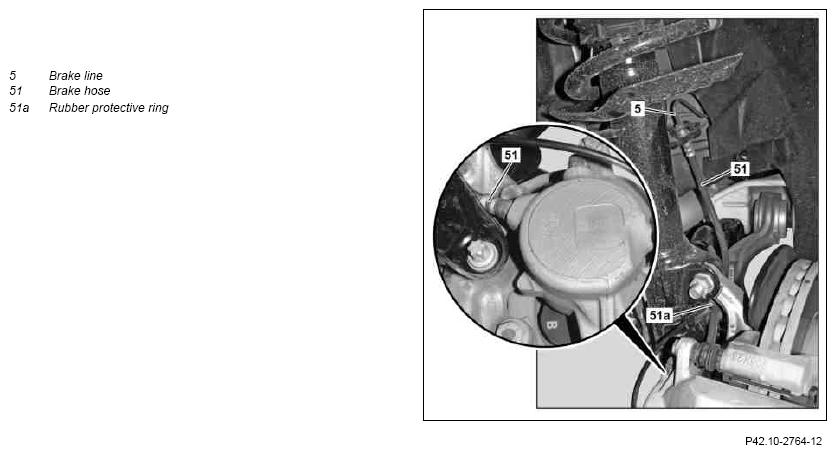

Fig 2: Front Brake Hose, Line And Protective Rubber Ring
G09976530Courtesy of MERCEDES-BENZ USA
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on externally invisible brake fluid loss   AH42.10-P-9406-02V
NOTES Notes on installing brake hoses   AH42.10-P-9406-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove complete wheel; rotate if necessary
REFER TO MAINTENANCE   MODEL 207 AP40.10-P-4050CW
REFER TO MAINTENANCE   MODEL 212, 218 AP40.10-P-4050EW
2 Detach brake line (5) from brake hose (51) IMPORTANT Seal the connection fittings immediately using SPECIAL TOOL stop plugs. The expansion reservoir for brake fluid must not run completely empty.
TORQUE SPECIFICATION Retaining screw, brake line to brake hose *BA42.10-P-1001-04L
SPECIAL TOOL Box wrench bit Fig 4
SPECIAL TOOL Record plug Fig 5
3 Guide brake hose (51) through the rubber protective ring (51a) IMPORTANT The protective rubber ring (51a) is present only on the front axle.
4.1 Detach brake hose (51) from brake caliper of front axle and remove MODEL 207
MODEL 212 (except 212.076/092/276/292)
MODEL 218 (except 218.376/392/976/992)
TORQUE SPECIFICATION Brake hose to fixed or floating caliper on front axle *BA42.10-P-1002-04L
SPECIAL TOOL Box wrench Fig 3
SPECIAL TOOL Box wrench bit Fig 4
4.2 Unscrew banjo bolt and remove brake hose of front axle (51) MODEL 212.076/092/276/292
MODEL 218.376/392/976/992
IMPORTANT Brake hoses with ring fitting and banjo bolt are only installed on the front axle.
INSTALLATION IMPORTANT Check sealing rings. If problems occur, brake hose (1) must be replaced.
TORQUE SPECIFICATION Brake hose to fixed or floating caliper on front axle *BA42.10-P-1002-04L
5 Detach brake hose (51) from brake caliper of rear axle and remove TORQUE SPECIFICATION Brake hose to fixed or floating caliper on rear axle *BA42.10-P-1006-04L
SPECIAL TOOL Box wrench bit Fig 4
SPECIAL TOOL Box wrench Fig 3
6 Install in the reverse order
7 Bleed brake system   AR42.10-P-0010EW
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 207 MODEL 212 (except 212.076/092/276/292)
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 212.076/092/276/292 MODEL 218 (except 218.376/392/976/992)
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 218.376/392/976/992
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 207 MODEL 212 (except 212.076/092/276/292)
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 212.076/092/276/292 MODEL 218 (except 218.376/392/976/992)
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 30 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 218.376/392/976/992
BA42.10-P-1002-04L Brake hose to fixed or floating caliper on front axle Nm 30
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 207 MODEL 212 (except 212.076/092/276/292)
BA42.10-P-1006-04L Brake hose to fixed or floating caliper on rear axle 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 212.076/092/276/292 MODEL 218 (except 218.376/392/976/992)
BA42.10-P-1006-04L Brake hose to fixed or floating caliper on rear axle 24 24
BRAKE LINES, BRAKE HOSES

Number Designation MODEL 218.376/392/976/992
BA42.10-P-1006-04L Brake hose to fixed or floating caliper on rear axle 24
Fig 3: Identifying Box Wrench (000 589 76 03 00)
G09976531Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)
G09976532Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G09976533Courtesy of MERCEDES-BENZ USA
