Remove/install air spring - AR32.22-P-1500EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1, 218 with CODE 488 (Steel/air suspension)

MODEL 212.0/1, 218 with CODE 489 (AIRMATIC)

MODEL 212.2

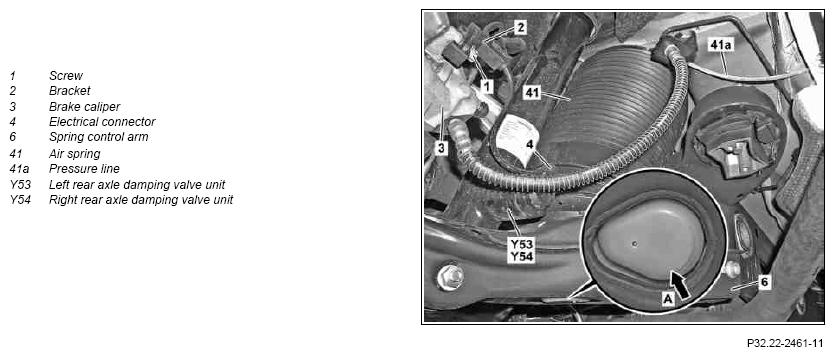

Fig 1: Air Spring Install/Remove Components (1 Of 2)
G09976065Courtesy of MERCEDES-BENZ USA

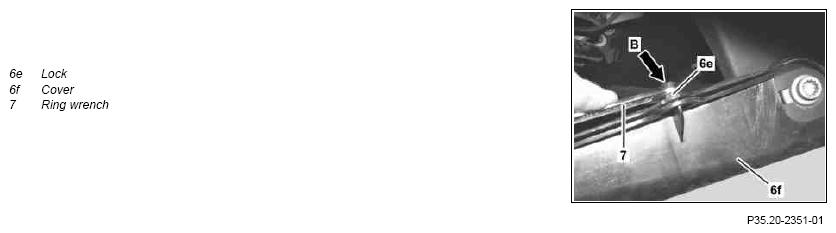

Fig 2: Air Spring Install/Remove Components (2 Of 2)
G09976066DANGERDANGERNOTESNOTESIMPORTANTREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSINSTALLATION NOTESREFER TO MAINTENANCETORQUE SPECIFICATIONINSTALLATION NOTESIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONINSTALLATION IMPORTANTNOTESINSTALLATION NOTESNOTESINSTALLATION IMPORTANTNOTESINSTALLATION NOTESINSPECTREFER TO SELF-DIAGNOSTIC SYSTEMSDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating range of the mechanism when moving components. AS00.00-Z-0009-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on AIRmatic   AH32.22-P-1000-02EW
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Empty air spring (41) using diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
    INSTALLATION NOTES
Carefully fill air spring (41) according to specifications.
The air spring (41) may otherwise be damaged and fail later.

2.1 Switch off ignition and remove transmitter key from electronic ignition lock control unit MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
without CODE 889 (KEYLESS-GO)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
without CODE 889 (KEYLESS-GO)
MODEL 212.2
without CODE 889 (KEYLESS-GO)

2.2 Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit MODEL 212.0/1, 218
with CODE 488 (Steel/air suspension)
with CODE 889 (KEYLESS-GO)
MODEL 212.0/1, 218
with CODE 489 (AIRMATIC)
with CODE 889 (KEYLESS-GO)
MODEL 212.2
with CODE 889 (KEYLESS-GO)

3 Remove left or right rear wheel
REFER TO MAINTENANCE     AP40.10-P-4050EW
4 Press locks (6e) of cover (6f) together using a suitable sleeve or a box wrench (7) (arrow B) and remove cover (6f) from left or right spring control arm (6)
5 Detach electrical connector (4) from left rear-axle damping valve unit (Y53) or right rear-axle damping valve unit (Y54)
6 Remove screw/bolt (1) When removing right air spring (41).
TORQUE SPECIFICATION Screw/bolt, brake wear sensor to brake caliper *BA42.10-P-1003-12J
7 Remove bracket (2) from brake caliper (3) When removing right air spring (41).
8 Detach pressure line (41a) from air spring (41) INSTALLATION NOTES
When reinstalling the old air spring (41), make sure that the pressure line (41a) is carefully screwed on to the plastic thread.
Otherwise, the plastic thread will be damaged thereby destroying the air spring (41).
IMPORTANT Seal pressure line (41a) with blind plugs during repair work.
When replacing the air spring (41):

Break open the clamping ring, detach pressure line connection and insert the pressure line (41a) up to the marking in the new pressure line connection. Pull back pressure line (41a) a short distance so that the peripheral retaining edges in the inside of the clamping ring engage in the line outer surface.
If pressure line (41a) is damaged or leaky or if pressure line connection is damaged:

Repair AIRmatic pressure line connection. AR32.22-P-2001-02SX
TORQUE SPECIFICATION Pressure line to air suspension/valve unit *BA32.22-P-1010-03E
SPECIAL TOOL Knife Fig 4
SPECIAL TOOL Socket wrench bit Fig 3
9 Unscrew nut for damper to spring control arm (6) and pull relevant bolt out of spring control arm (6) TORQUE SPECIFICATION Self-locking nut, shock absorber to spring control arm *BA32.25-P-1001-03M
10 Press damper together and remove rearwards out of the spring control arm (6) INSTALLATION IMPORTANT The air spring (41) with the air spring centering (arrow A) must be positioned correctly in the lower spring control arm (6).
11 Pull air spring (41) downwards carefully at its upper plastic frame until the air spring (41) releases from the retaining clip NOTES Do not turn air spring (41).
It will be damaged otherwise.
INSTALLATION NOTES
The air spring (41) must engage completely in the retaining clip.
Otherwise, when filling, the air spring (41) can tilt over in the upper spring cup thereby damaging the plastic frame of the air spring (41).
NOTESRemoval:  The retaining clip of air spring (41) is destroyed.
INSTALLATION IMPORTANT Replacing retaining clip. ↓

Replacing retaining clip. AR32.22-P-1500-02EW
12 Remove air spring (41) rearwards over the brake hose NOTESRemoval:
Carefully remove air spring (41).
Otherwise, the outer boot of the air spring (41) may be damaged.
INSTALLATION NOTES
The outer boot on the air spring (41) may not be pressed in during assembly, rectify any deformations.
Otherwise the movement of the spring will damage the spring bellows on the inside.

INSPECT Check
13 Check air spring (41) for damage If damage is present: ↓
Replace air spring (41).

14 Install in the reverse order
15 Check AIRmatic or steel/air suspension for leaktightness MODEL 212
with CODE 488 (Steel/air suspension)
MODEL 212
with CODE 489 (AIRMATIC)
AR32.22-P-8100EW
MODEL 218
with CODE 488 (Steel/air suspension)
MODEL 218
with CODE 489 (AIRMATIC)
AR32.22-P-8100EL
16 Read out fault memory using the diagnostic system and delete
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
17 Perform engine test run and check AIRmatic for proper operation
AIR SUSPENSION

Number Designation MODEL 212 MODEL 218
BA32.22-P-1010-03E Pressure line to air suspension/valve unit Nm 2 (+0, 5) 2 (+0, 5)
REAR AXLE SHOCK ABSORBER

Number Designation MODEL 212 MODEL 218
BA32.25-P-1001-03M Self-locking nut, shock absorber to spring control arm Stage 1 Nm 60 60
Stage 2 ∠° 60 60
REAR AXLE BRAKE CALIPER

Number Designation MODEL 212 MODEL 218
BA42.10-P-1003-12J Screw/bolt, brake wear sensor to brake caliper Nm 8 8
Fig 3: Identifying Socket Wrench Bit (211 589 00 09 00)
G09976067Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Knife (000 589 12 28 00)
G09976068Courtesy of MERCEDES-BENZ USA
