Remove/install components for exhaust system - AR49.10-P-7100MR

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 274 in MODEL 204

ENGINE 274 in MODEL 212, 218

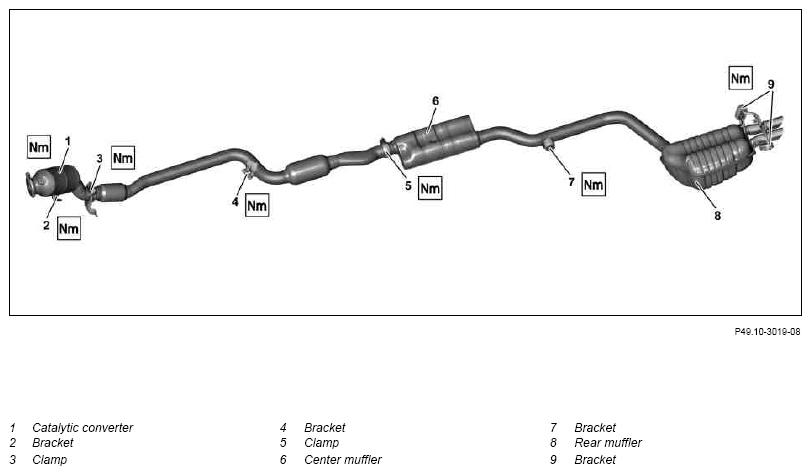

Shown on model 204 (except 204.9)

Fig 1: Exhaust System Components Remove/Install Components - Shown On Model 204
G10241460Courtesy of MERCEDES-BENZ USA

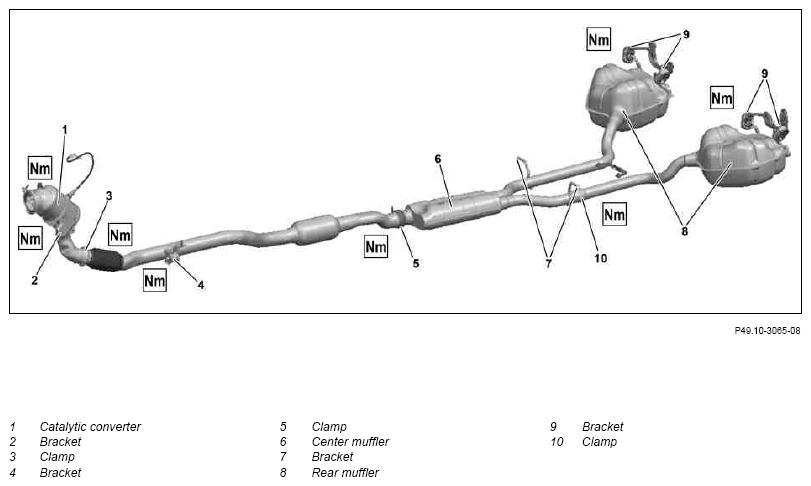

Shown on model 204.9

Fig 2: Exhaust System Components Remove/Install Components - Shown On Model 204.9
G10241461Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
DANGER Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
REMOVINGINSTALLING Remove/install
1 Remove engine compartment paneling ENGINE 274 in MODEL 204.9 AR61.20-P-1105CY
ENGINE 274 in MODEL 204 (except 204.9), 212, 218 AR61.20-P-1105EW
2 Disconnect electrical connections on oxygen sensors and expose feed lines If necessary
↓
Remove heatable oxygen sensor.
ENGINE 274.9 in MODEL 212
with CODE 924 (Bivalent natural gas drive)		 AR07.52-P-5303MRC
ENGINE 274 in MODEL 204 AR07.52-P-5303MR
ENGINE 274 in MODEL 212
without CODE 924 (Bivalent natural gas drive)
ENGINE 274 in MODEL 218		 AR07.52-P-5303MRS
3 Loosen corresponding components of exhaust system at respective connecting points and remove INSTALLATION IMPORTANT Align components for the exhaust system before firmly tightening screw connections free of tension.
INSTALLATION IMPORTANT Apply lubricating paste at the elastomer bearings of the exhaust system.
TORQUE SPECIFICATION Model 204, screw/bolt exhaust rubber mount holder to frame floor assembly/rear axle carrier *BA49.10-P-1015-01AC
TORQUE SPECIFICATION Model 204, screw/bolt, CAT clamp to ATL *BA49.10-P-1034-01AC
TORQUE SPECIFICATION Model 204, nut, CAT holder to CAT *BA49.10-P-1037-01AC
TORQUE SPECIFICATION Model 204, screw/bolt, CAT holder to crankcase/oil pan *BA49.10-P-1038-01AC
TORQUE SPECIFICATION Model 204, nut, CAT clamp to exhaust system at the front *BA49.10-P-1039-01AC
TORQUE SPECIFICATION Model 204, screw/bolt, clamp for exhaust system at the front to exhaust system at the rear *BA49.10-P-1040-01AC
TORQUE SPECIFICATION Model 204, nut to exhaust bracket suspension *BA49.10-P-1041-01AC
TORQUE SPECIFICATION Model 212, 218, screw/bolt exhaust rubber mount holder to frame floor assembly/rear axle carrier *BA49.10-P-1036-01AE
TORQUE SPECIFICATION Model 212, 218, screw/bolt, CAT clamp to ATL *BA49.10-P-1042-01AE
TORQUE SPECIFICATION Model 212, 218, nut, CAT holder to CAT *BA49.10-P-1043-01AE
TORQUE SPECIFICATION Model 212, 218, screw/bolt, CAT holder to crankcase/oil pan *BA49.10-P-1044-01AE
TORQUE SPECIFICATION Model 212, 218, nut, CAT clamp to exhaust system at the front *BA49.10-P-1045-01AE
TORQUE SPECIFICATION Model 212, 218, nut to suspension for front exhaust system *BA49.10-P-1046-01AE
TORQUE SPECIFICATION Model 212, 218, screw/bolt, clamp for exhaust system at the front to exhaust system at the rear *BA49.10-P-1048-01AE
Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
CLEANING Clean
4 Remove combustion and corrosion residue at separating points
5 Check elastomer bearing for exhaust system for damage, check wear and replace if necessary
6 Install in the reverse order
INSPECT Check
7 Check installation position and unobstructed movement of all components of the exhaust system
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
8 Perform an engine test run and check exhaust system for leaktightness
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1015-01AC Bolt, exhaust rubber mount holder to frame floor assembly/rear axle carrier Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1034-01AC Bolt connecting catalytic converter clamp to exhaust gas turbocharger Nm 15
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1036-01AE Bolt, exhaust rubber mount holder to frame floor assembly/rear axle carrier Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1037-01AC Nut, catalytic converter holder to catalytic converter Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1038-01AC Bolt, bracket for CAT to crankcase/oil pan Nm 25
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1039-01AC Nut, clamp for CAT to front exhaust system Nm 22
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1040-01AC Bolt, clamp for front exhaust system to rear exhaust system Nm 35
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 204
BA49.10-P-1041-01AC Nut to exhaust bracket mounting bracket Nm 23
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1042-01AE Bolt, catalytic converter clamp to turbocharger Nm 15
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1043-01AE Nut, catalytic converter holder to catalytic converter Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1044-01AE Bolt, bracket for CAT to crankcase/oil pan Nm 25
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1045-01AE Nut, clamp for CAT to front exhaust system Nm 22
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1046-01AE Nut to front exhaust system mounting bracket Nm 23
EXHAUST SYSTEM

Number Designation ENGINE 274 in MODEL 212, 218
BA49.10-P-1048-01AE Bolt, clamp for front exhaust system to rear exhaust system Nm 35
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
