Remove/install components for exhaust system - AR49.10-P-7100EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278 in MODEL 212, 218

MODEL 212, 218 with CODE 920 (Gasoline direct injection with stratified charge), shown on MODEL 218.355

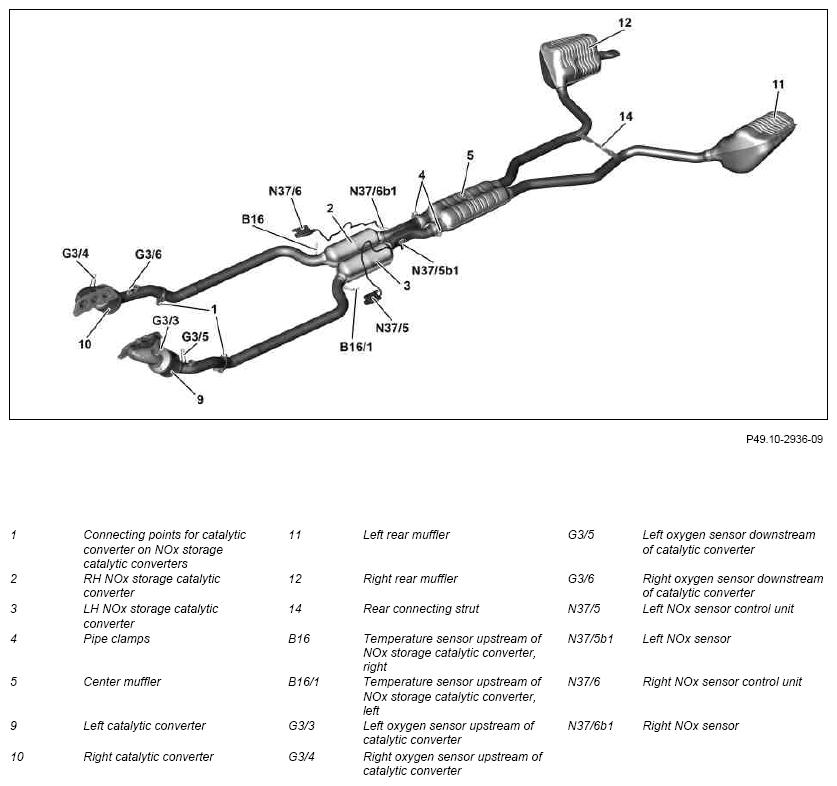

Fig 1: Exhaust System Remove/Install Components - Shown On Model 218.355
G09976851Courtesy of MERCEDES-BENZ USA

MODEL 212, 218 except CODE 920 (gasoline direct injection with stratified charge), shown on MODEL 218.373

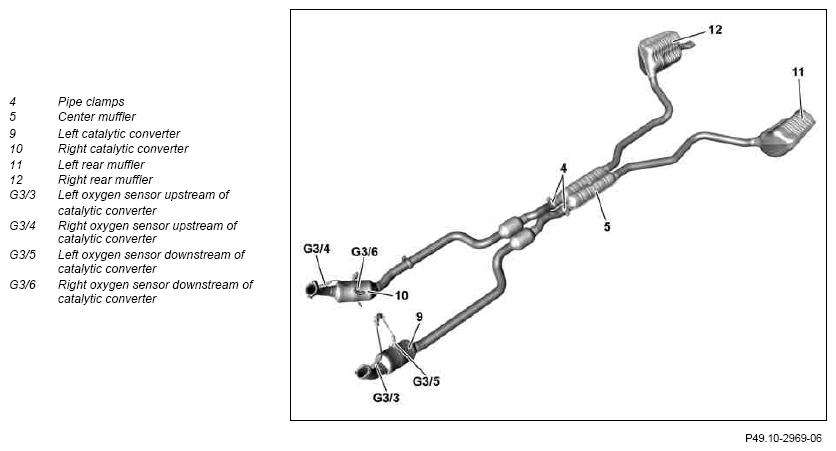

Fig 2: Exhaust System Remove/Install Components - Shown On Model 218.373
G09976852Courtesy of MERCEDES-BENZ USA

Shown on MODEL 212 with ENGINE 276.8

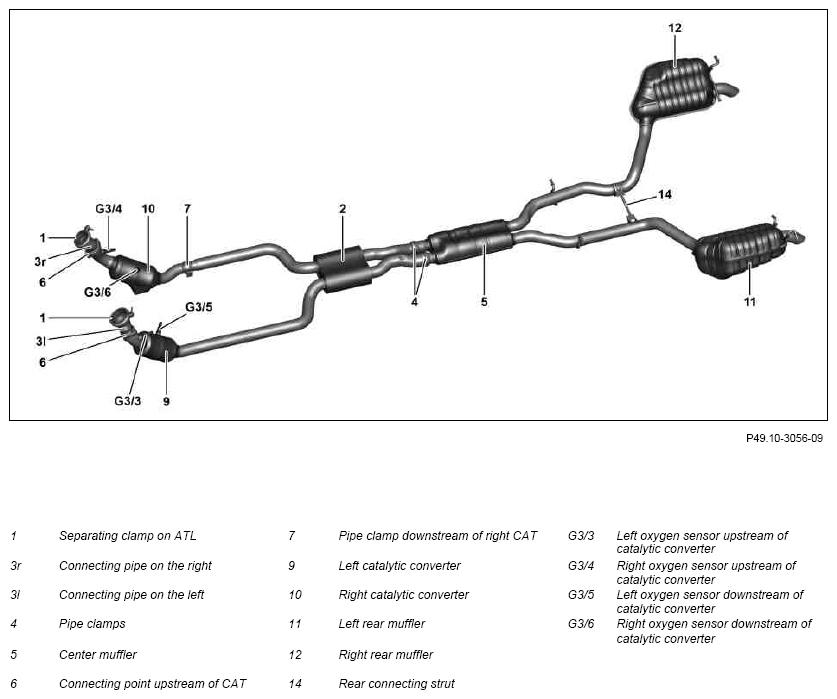

Fig 3: Exhaust System Remove/Install Components - Shown On Model 212
G09976853Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Remove engine compartment paneling If necessary.
  AR61.20-P-1105EW
INSTALLATION IMPORTANT Only install lower engine compartment paneling after the engine test run and leak test.
2 Disconnect electrical connection for the respective oxygen sensors (G3/3, G3/4, G3/5, G3/6) and expose feed lines If necessary.
ENGINE 276.8 in MODEL 212 AR07.52-P-5303ELS
ENGINE 276.9 in MODEL 212, 218 AR07.52-P-5303EL
ENGINE 157, 278 in MODEL 212, 218 AR07.52-P-5303ELB
3 Disconnect electrical connection for left NOx sensor (N37/5b1) or right NOx sensor (N37/6b1) and expose feed lines ENGINE 276 in MODEL 212, 218 with CODE 920 (gasoline direct injection with stratified charge)
If necessary.
  AR07.70-P-0001EL
4 Disconnect electrical connection for temperature sensor upstream of right NOx storage catalytic converter (B16) or temperature sensor upstream of left NOx storage catalytic converter (B16/1) of the respective NOx storage catalytic converter (2, 3) and expose feed lines ENGINE 276 in MODEL 212, 218 with CODE 920 (gasoline direct injection with stratified charge)
If necessary.
  AR07.70-P-0002EL
5.1 Remove exhaust manifold with left catalytic converter (9) or exhaust manifold with right catalytic converter (10) ENGINE 276.9 in MODEL 212, 218
with CODE 920 (Direct petrol injection with stratified charging)
If necessary.
  AR14.10-P-4095EL
5.2 Remove ATL with exhaust manifold If necessary.
ENGINE 276.8 in MODEL 212, 218 AR09.40-P-6025ELS
ENGINE 157, 278 in MODEL 212, 218 AR09.40-P-6025ELB
5.3 Remove exhaust manifold ENGINE 276.9 in MODEL 212, 218
without CODE 920 (Direct petrol injection with stratified charging)
If necessary.
  AR14.10-P-3006EHV
6 Remove exhaust gas recirculation lines ENGINE 276 in MODEL 212, 218 with CODE 920 (gasoline direct injection with stratified charge)
If necessary.
TORQUE SPECIFICATION Bolt, flange for exhaust gas recirculation lines to exhaust gas recirculation positioner *BA49.10-P-1040-01AE
TORQUE SPECIFICATION Bolt, clamp for exhaust gas recirculation line to catalytic converter *BA49.10-P-1041-01AE
7 Remove front reinforcement brace from frame floor assembly If necessary.
TORQUE SPECIFICATION Bolt, front reinforcement brace to frame floor assembly *BA61.10-P-1002-01H
8 Loosen corresponding components of exhaust system at connecting points and remove INSTALLATION IMPORTANT Align components for the exhaust system before firmly tightening screw connections free of tension.
INSTALLATION IMPORTANT Apply lubricating paste to exhaust rubber mounts.
TORQUE SPECIFICATION Bolt, catalytic converter to pipe *BA49.10-P-1051-01AE
TORQUE SPECIFICATION Bolt, pipe clamp to exhaust gas turbocharger *BA49.10-P-1050-01AE
TORQUE SPECIFICATION Bolt, catalytic converter to exhaust manifold *BA49.10-P-1001-01AE
TORQUE SPECIFICATION Bolt, catalytic converter holder to catalytic converter *BA49.10-P-1010-01AE
TORQUE SPECIFICATION Bolt, bracket to transmission *BA49.10-P-1011-01AE
TORQUE SPECIFICATION Nut, catalytic converter holder to catalytic converter *BA49.10-P-1012-01AE
TORQUE SPECIFICATION Bolt, catalytic converter pipe to catalytic converter *BA49.10-P-1021-01AE
TORQUE SPECIFICATION Bolt, exhaust system bracket to transmission *BA49.10-P-1023-01AE
TORQUE SPECIFICATION Bolt/nut, exhaust system bracket to exhaust system *BA49.10-P-1024-01AE
TORQUE SPECIFICATION Bolt/nut, clamp for center muffler to pipe with catalytic converter *BA49.10-P-1032-01AE
TORQUE SPECIFICATION Bolt/nut, center muffler clamp/SCR catalytic converter to rear muffler *BA49.10-P-1033-01AE
TORQUE SPECIFICATION Bolt, vibration damper to center muffler *BA49.10-P-1034-01AE
TORQUE SPECIFICATION Bolt, cross connection left rear to right rear *BA49.10-P-1035-01AE
TORQUE SPECIFICATION Bolt, exhaust rubber mount holder to frame floor assembly/rear axle carrier *BA49.10-P-1036-01AE
TORQUE SPECIFICATION Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
CLEANING Clean
9 Remove combustion and corrosion residue at separating points
10 Check exhaust rubber mount for damage and wear
11 Install in the reverse order
INSPECT Check
12 Check installation position and unobstructed movement of all components of the exhaust system
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
13 Perform an engine test run and check exhaust system for leaktightness
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1001-01AE Bolt, catalytic converter to exhaust manifold Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1010-01AE Bolt, catalytic converter holder to catalytic converter Nm 35 35
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1011-01AE Bolt, bracket to transmission Nm 39 39
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1012-01AE Nut, catalytic converter holder to catalytic converter Nm 20 -
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1021-01AE Bolt, catalytic converter pipe to catalytic converter Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1023-01AE Bolt, exhaust system bracket to transmission Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1024-01AE Bolt/nut, exhaust system bracket to exhaust system Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1032-01AE Bolt/nut, clamp for center muffler to pipe with catalytic converter Nm 35 35
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1033-01AE Bolt/nut, center muffler clamp/SCR catalytic converter to rear muffler Nm 35 35
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1034-01AE Bolt, vibration damper to center muffler Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1035-01AE Bolt, cross connection left rear to right rear Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1036-01AE Bolt, exhaust rubber mount holder to frame floor assembly/rear axle carrier Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1040-01AE Bolt, flange for exhaust gas recirculation lines to exhaust gas recirculation positioner Nm 9 9
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1041-01AE Bolt, clamp for exhaust gas recirculation line to catalytic converter Nm 9 9
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1050-01AE Bolt, pipe clamp to exhaust gas turbocharger Nm 15 15
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 157, 276, 278 in MODEL 218
BA49.10-P-1051-01AE Bolt, catalytic converter to pipe Nm 20 -
FRAME FLOOR ASSEMBLY

Number Designation MODEL 212 MODEL 218
BA61.10-P-1002-01H Bolt, front reinforcement brace to frame floor assembly Nm 30 30
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
