Remove/install oil pan - AR01.45-P-7500CMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 204, 212

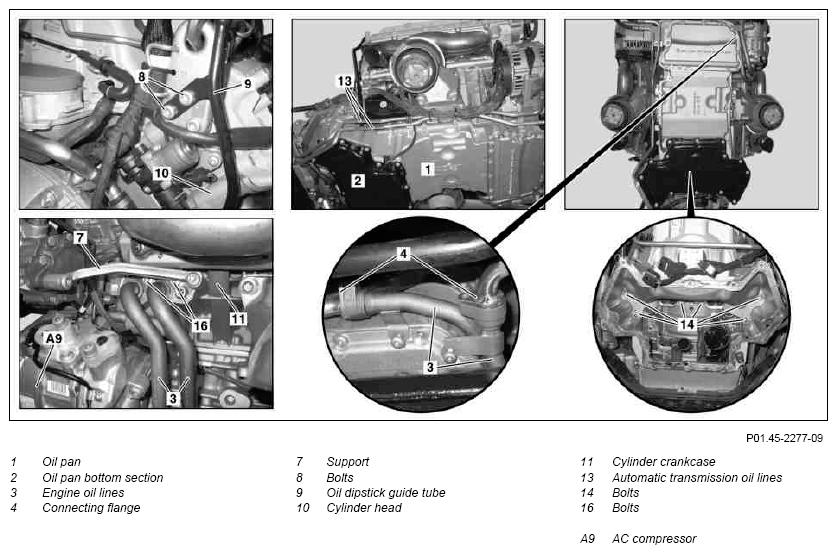

Fig 1: Oil Pan Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

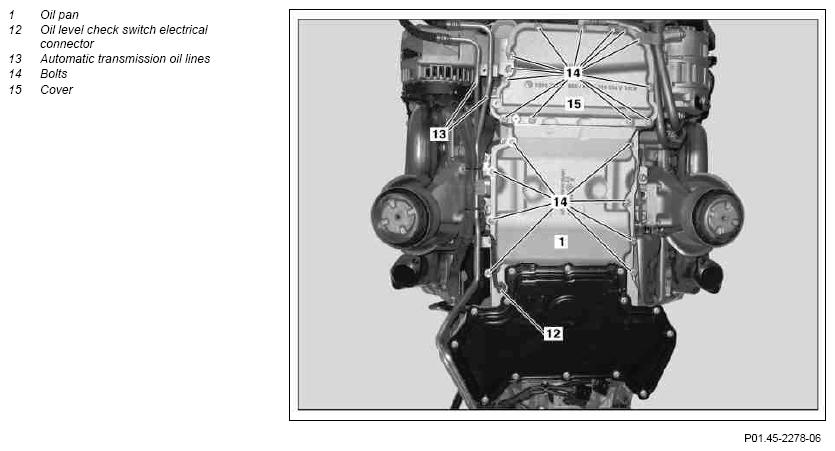

Fig 2: Oil Pan Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

12.11.08

Value changed: Bolt for attaching diagonal strut to front axle carrier/longitudinal member

*BA61.10-P-1004-01H

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.		AS00.00-Z-0013-01A
1	Switch off ignition
2	Deactivate easy entry/exit function for driver seat and steering wheel	Vehicles with code 275, Memory package (driver seat, steering column, mirrors)
3	Detach ground line from battery	Model 204	AR54.10-P-0003CW
		Model 212	AR54.10-P-0003EW
	Notes on battery		AH54.10-P-0001-01A
4	Turn front wheels to straight-ahead position and secure steering wheel with holding device	The steering wheel must not be turned when the steering coupling is detached, otherwise the clock spring contact will be destroyed.
			Fig 3
5	Remove air filter housing		AR09.10-P-1150CMG
6	Extract oil from power steering expansion reservoir		Fig 7
7	Remove poly-V belt	Only remove poly-V belt from the belt pulley of A/C compressor (A9).	AR13.20-P-0001CMG
8	Remove bolts (8) on the oil dipstick guide tube (9) bracket	Replace sealing ring. Ensure the correct seating of the seal ring in the oil pan (1).	AR18.40-P-3510CMG
9	Attach engine hoist and raise engine	Model 204	AR33.10-P-0105CW
9	Attach engine hoist and raise engine	Model 212	AR33.10-P-0105EW
10	Remove cold air intake
11	Secure radiator package with cable ties to prevent it from falling down
12	Detach oil lines of automatic transmission (13) at oil pan (1)	Loosen double hose clamp and rotate top section by 90°.
			*BA27.55-P-1003-01D
13	Remove oil pan bottom section (2)		AR01.45-P-7555CMG
14	Loosen engine mounts on front axle carrier		AR22.10-P-1260CMG
15	Detach steering coupling from steering shaft	Model 204, 207	AR46.10-P-8000CW
16	Disconnect electrical connector at the speed-sensitive power steering solenoid valve of the rack-and-pinion steering (23) and unclip at front axle carrier
17	Disconnect electrical connector (12) at oil level check switch (S43)		AR18.40-P-5113CMG
18	Detach bracket of the connecting linkage of the headlamp range adjustment/level sensor at the stabilizer bar
19	Disconnect and seal power steering hydraulic line at the separation point at the front axle carrier		Fig 4
20	Loosen nut of wheel arch oil cooler bracket at front axle carrier	Model 204	AR18.30-P-1000CMR
20		Model 212	AR18.30-P-1000EMG
21	Disconnect lower engine oil line on connecting flange	Model 204	AR18.30-P-1000CMR
21	Disconnect lower engine oil line on connecting flange	Model 212	AR18.30-P-1000EMG
22	Detach diagonal strut at front axle carrier and underfloor	The bolts of the diagonal struts must not be tightened until the vehicle is standing with its wheels on the ground.
			*BA61.10-P-1004-01H
23	Detach support strut at underfloor and front axle carrier		*BA33.10-P-1002-01M
24	Loosen and lower front axle carrier	Secure front axle carrier with tensioning strap to prevent it from falling down.
		Model 204	AR33.10-P-0001CW
		Model 212	AR33.10-P-0001EW
25	Separate electrical connector of the A/C compressor (A9) at separation point	Model 204	AR83.55-P-5300CMG
26	Detach A/C compressor (A9) from cylinder crankcase (11)	Move with connected lines until the bolts of the support (7) are accessible and secure to prevent from falling down.
27	Remove support (7) for power steering pump
		Model 204	*BA46.30-P-1007-01R
		Model 204	*BA46.30-P-1008-01R
		Model 212	*BA46.30-P-1008-01T
28	Disconnect and seal engine oil lines (3) at connecting flange (4)	Replace sealing rings.
			Fig 4
29	Unscrew bolts (16), remove engine oil lines (3) from cylinder crankcase (11) and seal connection openings	Replace sealing rings.
			*BA03.20-P-1006-01J
			*BA01.45-P-1005-01R
			Fig 4
30	Detach front cover (15) from oil pan (1)	To do this, insert a bolt and use an assembly wedge to loosen and then pry off from the oil pan (1). 5 bolts of the oil pan (1) are located under the front cover (15).
30	Detach front cover (15) from oil pan (1)		Fig 5
31	Remove bolts (14) on oil pan (1)		*BA01.45-P-1002-01R
			*BA01.45-P-1006-01R
			*BA01.45-P-1007-01R
32	Pry off oil pan (1) from crankcase (11) and remove	Pry off oil pan (1) by turning a bolt on the crankcase (11) and loosen with an assembly wedge. Do not manage the sealing surfaces of the oil pan (1) and crankcase (11). If oil pan (1) cannot be detached from the crankcase (11), heat up the sealing surfaces of the oil pan (1) using a hot air gun.
			Fig 5
			AH01.45-P-0001-01CMG
	Notes on sealant path for oil pan		Fig 6
		Loctite sealant 5970	*BR00.45-Z-1013-01A
	Clean
33	Clean sealing surfaces on oil pan (1) and cylinder crankcase (11)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
34	Install in the reverse order
35	Fill power steering pump and bleed	Model 204, 207	AR46.30-P-0010CW

OIL PAN

Number	Designation			Engine 156
BA01.45-P-1002-01R	Oil pan top section on crankcase	M6	Nm	8.4
BA01.45-P-1005-01R	Bracket, oil lines to oil pan	M6	Nm	5
BA01.45-P-1006-01R	Oil line return to oil pan	M6	Nm	8.4
BA01.45-P-1007-01R	Oil line feed line to oil pan	M6	Nm	8.4

POWER STEERING PUMP

Number	Designation		Model 212
BA46.30-P-1008-01T	Bolt, support to cylinder crankcase/power steering pump	Nm	20

POWER STEERING PUMP

Number	Designation		Model 204 without engine 651
BA46.30-P-1007-01R	Bolt, support holder to cylinder crankcase	Nm	20
BA46.30-P-1008-01R	Bolt, support holder to power steering pump	Nm	20

FRAME FLOOR ASSEMBLY

Number	Designation		Model 204	Model 212
BA61.10-P-1004-01H	Bolt, diagonal strut mount on front axle carrier/longitudinal member	Nm	50	60

CRANKSHAFT BEARING CAP

Number	Designation			Engine 156
BA03.20-P-1006-01J	Oil line (oil radiator) with bracket	M8	Nm	20

FRONT AXLE CARRIER

Number	Designation		Model 204	Model 212
BA33.10-P-1002-01M	Fixing of support (strut)	Nm	110	110

TRANSMISSION OIL COOLING SYSTEM

Number	Designation		Transmission 722.9
BA27.55-P-1003-01D	Bolt, oil cooler line to engine oil pan	Nm	12

Fig 3: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite sealant 5970	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
