Remove/install oil dipstick guide tube - AR18.40-P-3510CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212

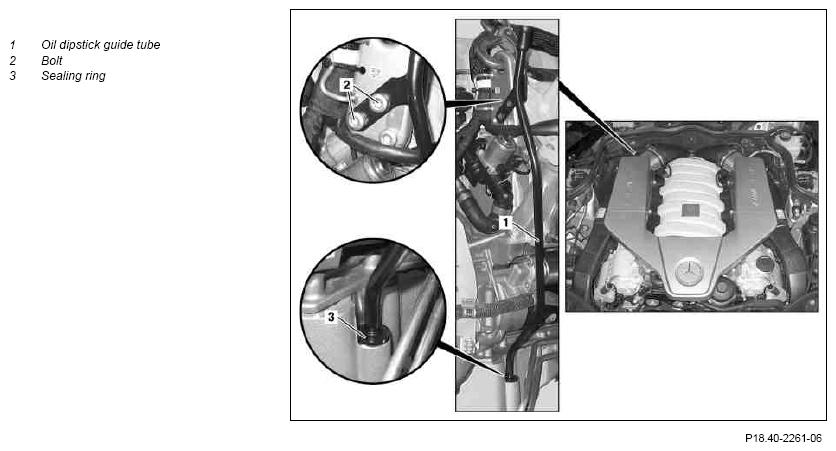

Shown on model 211
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Pull oil dipstick out of oil dipstick guide tube (1) | ||
| 2 | Remove bottom engine compartment paneling | ||
| 3 | Drain engine oil | ||
| Engine oil and filter change | AP18.00-P-0101TMG | ||
| 4 | Remove starter | AR15.30-P-7100CMG | |
| 5 | Remove oil dipstick guide tube (1) by unscrewing bolts (2) | ||
| *BA01.30-P-1005-01U | |||
| 6 | Install in the reverse order | ||
| Checking | |||
| 7 | Check engine oil level and adjust correctly | ||
| Engine oil and filter change | AP18.00-P-0101TMG | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run and check oil dipstick guide tube (1) for leaks |
CYLINDER HEAD
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA01.30-P-1005-01U | Bolt, lifting eye to cylinder head/timing case | M8 | Nm | 20 |
