Remove/install bottom part of oil pan - AR01.45-P-7555CMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 204, 212

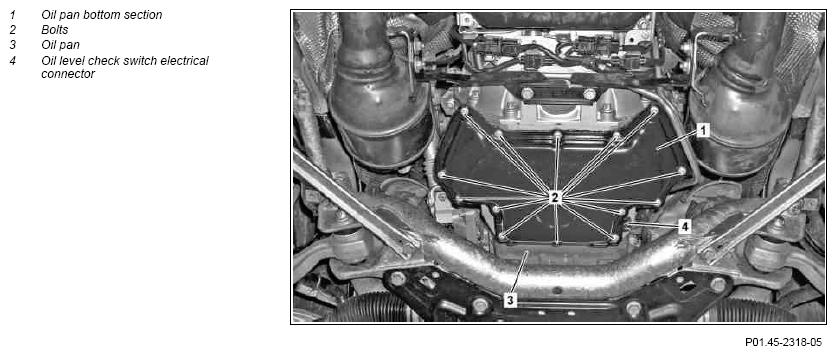

Fig 1: Bottom Part Of Oil Pan Remove/Install Components
G09973984Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove bottom engine compartment paneling INSTALLATION IMPORTANT Only install lower engine compartment paneling after engine test run and leak test.
2 Drain engine oil IMPORTANT Collect the oil for possible reuse.
REFER TO MAINTENANCE Engine oil and filter change Model 204 AP18.00-P-0101CMG
3 Disconnect electrical connector (4) at oil level check switch (S43)
4 Remove bolts (2) on oil pan bottom section (1) TORQUE SPECIFICATION *BA01.45-P-1003-01R
5 Pry off oil pan bottom section (1) from oil pan (3) and remove NOTES Insert a bolt to pry off oil pan bottom section (1) from oil pan (3) and use an assembly wedge to loosen from the oil pan (3). Do not damage the sealing surfaces of oil pan bottom section (1) and oil pan (3).
IMPORTANT If oil pan bottom section (1) cannot be loosened from oil pan (3), heat oil pan bottom section (1) in the area around the sealing surfaces using a hot air gun.
    SPECIAL TOOL Figure
    INSTALLATION IMPORTANT Observe application of sealant to oil pan bottom section (1).
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01CMG
    SPECIAL TOOL Figure
    Loctite sealant 5970 *BR00.45-Z-1013-01A
CLEAN Clean
6 Clean the sealing surfaces on oil pan bottom section (1) and oil pan (3). NOTES Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
7 Install in the reverse order
8 Check engine oil level and correct if required
REFER TO MAINTENANCE Engine oil and filter change Model 204 AP18.00-P-0101CMG
DANGER
9		 Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running
Conduct engine test run and check engine for leaks whilst it is running		 Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
OIL PAN

Number Designation Engine 156
BA01.45-P-1003-01R Bolt, oil pan bottom section to oil pan M6 Nm 8.4
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G09973985Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Squeeze Gun (112 589 00 25 00)
G09973986Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite sealant 5970 A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
