Remove/install oil level check switch - AR18.40-P-5113CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 204, 212
| Remove/install | |||

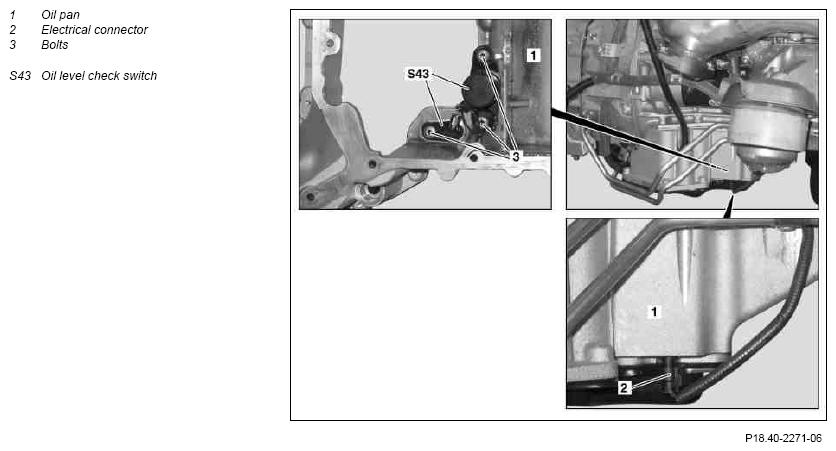

| 1 | Remove oil pan (1) | AR01.45-P-7500CMG | |
| 2 | Remove bolt (3) | *BA01.45-P-1004-01R | |
| 3 | Remove oil level check switch (S43) from oil pan (1) | ||
| 4 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Conduct engine test run and check engine for leaks whilst it is running |
OIL PAN
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA01.45-P-1004-01R | Oil level/oil level switch | M6 | Nm | 8.4 |
