Remove/install high-pressure pump drive gear - AR07.02-P-1021CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

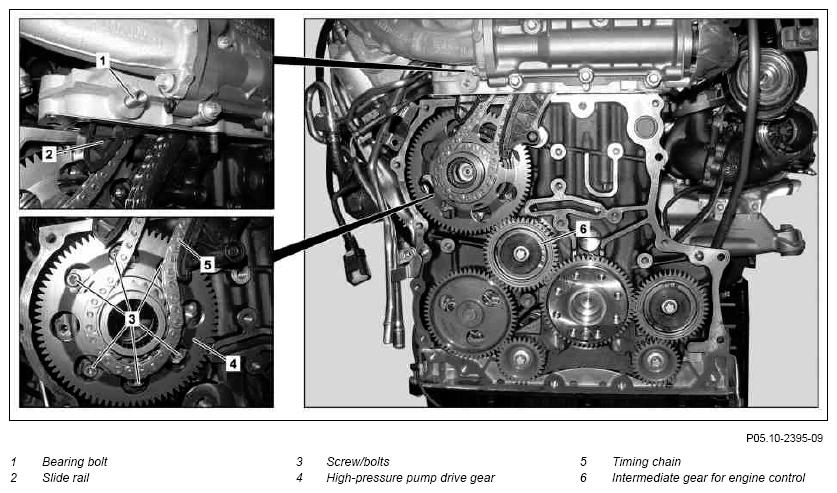

Fig 1: High-Pressure Pump Drive Gear Remove/Install Components
G09974577Courtesy of MERCEDES-BENZ USA
REMOVING Removing
1 Secure vehicle on vehicle lift Model 166 AR00.60-P-0100GZ
    Model 172 AR00.60-P-0100T
    Model 204, 207 AR00.60-P-0100CW
    Model 212, 218 AR00.60-P-0100EWS
    Model 221.0/1 AR00.60-P-0100SX
2 Remove timing case cover   AR01.40-P-8000CD
3.1 Remove oil pan bottom section Model 172, 204 (except 204.9), 212 except 4MATIC
Model 207, 218
AR01.45-P-7555CD
3.2 Remove oil pan Model 166.0 AR01.45-P-7500GQA
    Model 204, 212 - only 4MATIC AR01.45-P-7500OMD
    Model 221 AR01.45-P-7500SXA
4.1 Set piston of cylinder 1 with a counterholder to Top Dead Center Except code (B03) ECO start-stop function
NOTES The engine must not be turned back. The timing chain can skip otherwise and can cause engine damage.
IMPORTANT Rotate engine at crankshaft using a SPECIAL TOOL counterholder in direction of engine rotation until the 0° marking on the belt pulley/vibration damper coincides with the marking on the cylinder crankcase.

    SPECIAL TOOL Counterholder Fig 3
4.2 Set piston of cylinder 1 with a suitable tool to Top Dead Center With code (B03) ECO start/stop function
NOTES The engine must not be turned back. The timing chain can skip otherwise and can cause engine damage.
IMPORTANT Rotate engine at crankshaft using a SPECIAL TOOL counterholder in direction of engine rotation until the 0° marking on the belt pulley/vibration damper coincides with the marking on the cylinder crankcase.

    SPECIAL TOOL Counterholder Fig 3
5 Remove chain tensioner   AR05.10-P-7800CD
6 Remove intermediate gear for engine control (6) between crankshaft and high-pressure pump drive gear (4)   AR05.10-P-7620CD
7 Remove bearing pins (1) on slide rail (2) SPECIAL TOOL Impact extractor Fig 2
8 Remove screws/bolts (3)
9 Detach high-pressure pump drive gear (4) and remove timing chain (5)
INSTALLING Install
10 Lay timing chain (5) on high-pressure pump drive wheel (4), position high-pressure pump drive wheel (4) on crankcase and tighten down screw/bolts (3) TORQUE SPECIFICATION *BA07.16-P-1006-01H
11 Lock slide rail (2) with bearing pin (1)
12 Mount intermediate gear for engine control (6)   AR05.10-P-7620CD
13 Check basic setting of balance shaft   AR03.20-P-3637CD
14 Install chain tensioner   AR05.10-P-7800CD
15 Check basic setting for camshafts. IMPORTANT Adjust if necessary.
See ↓
AR05.20-P-6010CD
    Set basic position of camshafts AR05.20-P-6020CD
16.1 Install oil pan bottom section Model 172, 204 (except 204.9), 212 except 4MATIC
Model 207, 218
AR01.45-P-7555CD
16.2 Install oil pan Model 166.0 AR01.45-P-7500GQA
    Model 204, 212 - only 4MATIC AR01.45-P-7500OMD
    Model 221 AR01.45-P-7500SXA
17 Install timing case cover   AR01.40-P-8000CD
18 Release vehicle on lifting platform Model 166 AR00.60-P-0100GZ
    Model 172 AR00.60-P-0100T
    Model 204, 207 AR00.60-P-0100CW
    Model 212, 218 AR00.60-P-0100EWS
    Model 221.0/1 AR00.60-P-0100SX
19 Connect STAR DIAGNOSIS, read out fault memory and erase if required IMPORTANT Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work. AD00.00-P-2000-04A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
20 Test run engine and check for leaks
COMMON RAIL DIESEL INJECTION (CDI)

Number Designation ENGINE 651
BA07.16-P-1006-01H Screw/bolt, drive wheel for high-pressure pump to cylinder crankcase Nm 19
Fig 2: Identifying Impact Extractor (116 589 20 33 00)
G09974578Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Counterholder (651 589 00 40 00)
G09974579Courtesy of MERCEDES-BENZ USA
