Set basic position of camshafts - AR05.20-P-6020CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

Shown on engine with belt pulley

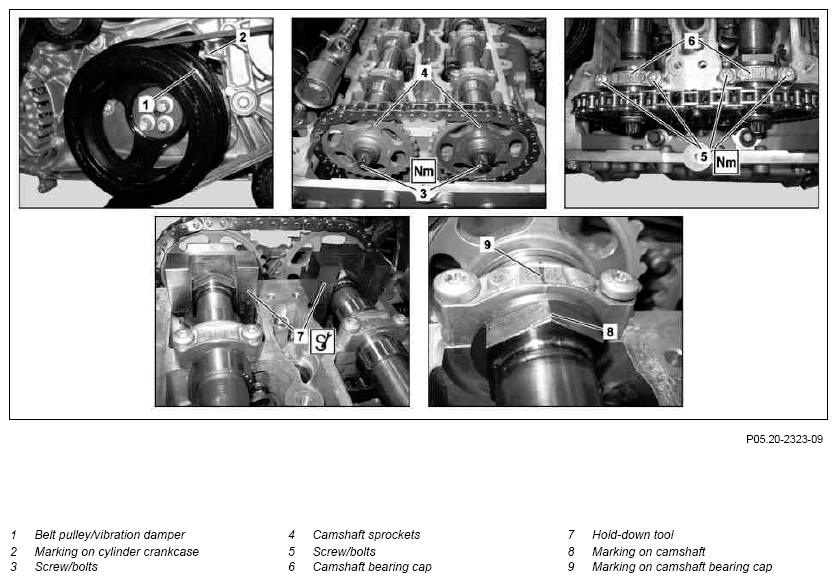

Fig 1: Camshafts Basic Position
G09974336Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove cylinder head cover trim
2 Remove cylinder head cover Remove/install cylinder head cover AR01.20-P-5014CD
3.1 Rotate engine at crankshaft using counterholder in direction of engine rotation and place piston for cylinder 1 at top dead center Except code (B03) ECO start/stop function
NOTES Do not rotate engine at the camshaft sprocket bolt. The engine must not be turned back.
The timing chain can skip otherwise and cause engine damage.
IMPORTANT The 0° marking on belt pulley/vibration damper (1) must match with marking on cylinder crankcase (2).

    SPECIAL TOOL Counterholder Figure
3.2 Rotate engine at crankshaft using a suitable tool in direction of engine rotation and place piston for cylinder 1 at the TDC With code (B03) ECO start/stop function
NOTES Do not rotate engine at the camshaft sprocket bolt. The engine must not be turned back. The timing chain can skip otherwise and cause engine damage.
IMPORTANT The 0° marking on belt pulley/vibration damper (1) must match with marking on cylinder crankcase (2).

4 Loosen screw/bolts (3) until the camshaft sprockets (4) can be turned on the camshafts IMPORTANT Screw/bolts (3) are designed with a left-hand thread.
5 Remove screw/bolts (5) and remove camshaft bearing cap (6) at both camshafts on camshaft sprocket (4) IMPORTANT Mark installation position of camshaft bearing cap (6) before taking off.
6 Position camshafts with hold-down tool (7) IMPORTANT To do this turn camshaft and mount hold-down tool (7) on the camshaft free of tension.
    SPECIAL TOOL ENGINE 651 as of 1/1/12 in MODEL 166, 172, 204, 207, 212, 218, 221 Hold-down device Fig 4
    SPECIAL TOOL ENGINE 651 up to 12/31/11 in MODEL 166, 172, 204, 207, 212, 218, 221 Tie-down set Fig 3
7 Tighten screw/bolts (3) on the camshaft sprockets (4) IMPORTANT Screw/bolts (3) are designed with a left-hand thread.
    TORQUE SPECIFICATION Screw/bolt, camshaft sprocket to camshaft *BA05.20-P-1001-01N
8 Remove hold-down tool (7) SPECIAL TOOL ENGINE 651 as of 1/1/12 in MODEL 166, 172, 204, 207, 212, 218, 221 Hold-down device Fig 4
    SPECIAL TOOL ENGINE 651 up to 12/31/11 in MODEL 166, 172, 204, 207, 212, 218, 221 Tie-down set Fig 3
INSTALLING Install
9 Mount camshaft bearing cap (6) at both camshafts on camshaft sprocket (4) and tighten down screw/bolts (5) NOTES The camshaft bearing caps (6) are asymmetrical. Note marking when mounting. The camshafts can get damaged otherwise.
    TORQUE SPECIFICATION Screw/bolt, camshaft bearing cap to cylinder head *BA05.20-P-1002-01N
10 Install cylinder head cover Remove/install cylinder head cover AR01.20-P-5014CD
11 Install cylinder head cover trim
CAMSHAFT

Number Designation ENGINE 651
BA05.20-P-1002-01N Screw/bolt, camshaft bearing cap to cylinder head Stage 1 Nm 5
Stage 2 Nm 9
CAMSHAFT

Number Designation ENGINE 651
BA05.20-P-1001-01N Screw/bolt, camshaft sprocket to camshaft Stage 1 Nm 55
Stage 2 ∠° 90
Fig 2: Identifying Counterholder (651 589 00 40 00)
G09974337Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Tie-Down Set (651 589 01 40 00)
G09974338Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Hold-down Device (651 589 09 40 00)
G09974339Courtesy of MERCEDES-BENZ USA
