Remove/install intermediate gear for engine control - AR05.10-P-7620CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

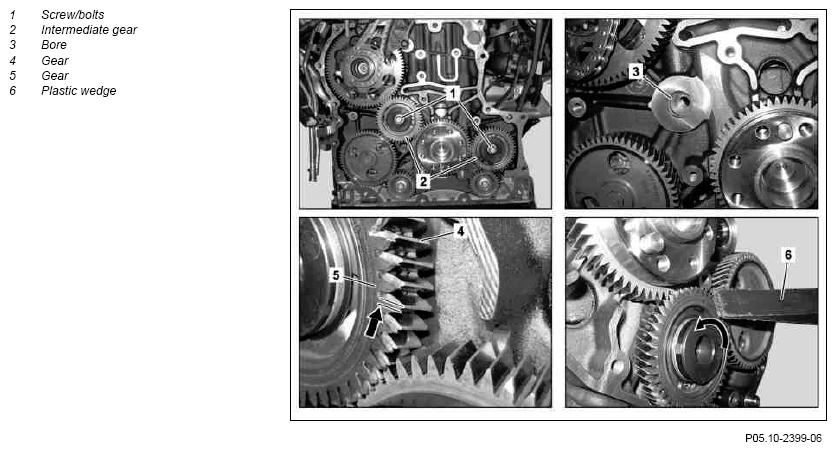

Fig 1: Intermediate Gear For Engine Control Remove/Install Components
G09974284Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

9.11.10 Check intermediate gear for damage and wear, added Operation step 4
REMOVING Removing
DANGER Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities No parts of the body or limbs should be within the operating range of the mechanism when moving components. AS00.00-Z-0009-01A
1 Remove timing case cover   AR01.40-P-8000CD
2 Remove screws/bolts (1)
3 Pry off intermediate gear (2) using a suitable tool
INSPECT Checking
4 Check intermediate gears (2) for damage and wear IMPORTANT Replace intermediate gears (2) if necessary.
INSTALLING Install
5 Plug intermediate gear (2) into bores (3) IMPORTANT Only as far as the gear (5) is still not engaged.
6 Pretension intermediate gear (2) IMPORTANT Tension gear (5) using a suitable plastic wedge (6) through applying short pressure anti-clockwise and press at the same time in the bore (3). The gear (5) must be tensioned anti-clockwise until the gears (4, 5) align with each other.
7 Screw in screw/bolts (1) TORQUE SPECIFICATION *BA05.10-P-1001-02A
8 Check spring preload IMPORTANT The gear (5) must be zero clearance.
9 Check basic setting of balance shaft IMPORTANT Adjust balance shafts if necessary. See: ↓ AR03.20-P-3637CD
    Set basic position of the balance shaft AR03.20-P-3638CD
10 Check basic setting for camshafts. IMPORTANT Adjust camshafts if necessary. See: ↓ AR05.20-P-6020CD
    Set basic position of camshafts AR05.20-P-6010CD
11 Install timing case cover   AR01.40-P-8000CD
GEARWHEEL DRIVE

Number Designation Engine 651
BA05.10-P-1001-02A Screw/bolt, intermediate gear to crankcase Nm 80
