Check basic position of camshafts - AR05.20-P-6010CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

Shown on engine with belt pulley

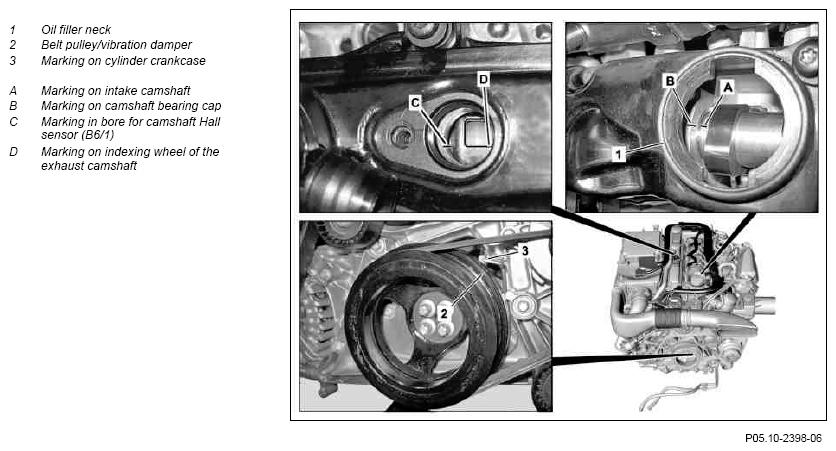

Fig 1: Camshafts Basic Position - Shown On Engine With Belt Pulley
G09974320Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove transmitter key IMPORTANT On vehicles with code (889) Keyless Go, press Start-Stop button repeatedly until the ignition is switched off.
2 Remove cylinder head cover trims
3 Unscrew oil filler cap
4 Remove camshaft Hall sensor   AR15.10-P-2000CD
5.1 Rotate engine at crankshaft using a counterholder in direction of engine rotation and place piston for cylinder 1 at top dead center (ignition TDC) Except code (B03) ECO start-stop function
NOTES The engine must not be turned back. The timing chain can skip otherwise and can cause engine damage.
IMPORTANT The 0° marking on belt pulley/vibration damper (2) must align with marking on cylinder crankcase (3).
    SPECIAL TOOL Counterholder Figure
5.2 Rotate engine at crankshaft using a suitable tool in direction of engine rotation and place piston for cylinder 1 at Top Dead Center (ignition TDC) With code (B03) ECO start/stop function
NOTES The engine must not be turned back. The timing chain can skip otherwise and can cause engine damage.
IMPORTANT The 0° marking on belt pulley/vibration damper (2) must align with marking on cylinder crankcase (3).
INSPECT Checking
6 Check setting of the intake camshaft IMPORTANT The marking on the intake camshaft (A) must coincide with the marking on the camshaft bearing cap (B). If the marking on the intake camshaft (A) is not visible, turn the crankshaft through one revolution, set to 0° and check again.
Adjust the camshafts if the markings (A, B) still do not match.
See: ↓
    Set basic position of camshafts AR05.20-P-6020CD
7 Check setting of exhaust camshaft IMPORTANT The marking on indexing wheel of the exhaust camshaft (D) must coincide with the marking in the bore for the camshaft Hall sensor (C).
Adjust camshafts if the markings (C, D) still do not match.
See: ↓
    Set basic position of camshafts AR05.20-P-6020CD
8 Install in the reverse order
Fig 2: Identifying Counterholder (651 589 00 40 00)
G09974321Courtesy of MERCEDES-BENZ USA
