Remove/install right cylinder head - AR01.30-P-5780EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276.9 in MODEL 212, 218

Shown: model 218

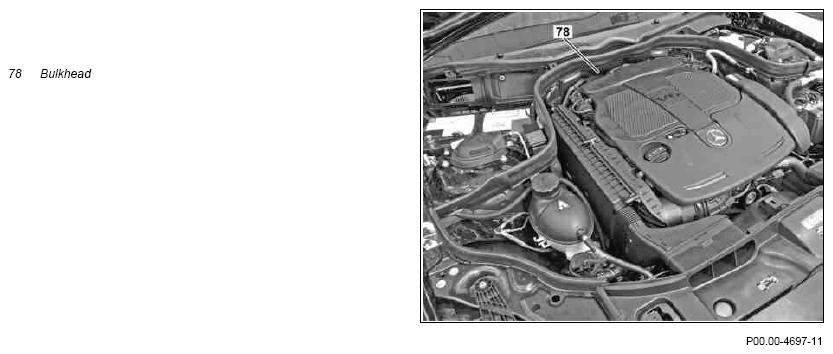

Fig 1: Right Cylinder Head Remove/Install Components - Shown On Model 218 (1 Of 4)

Courtesy of MERCEDES-BENZ USA

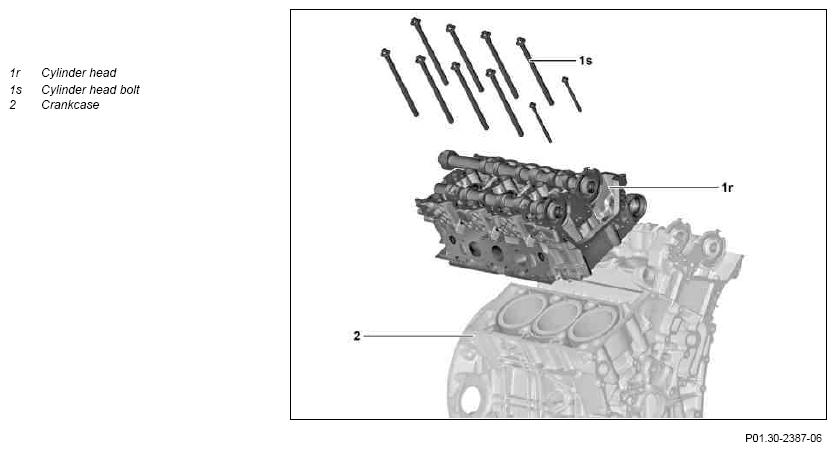

Fig 2: Right Cylinder Head Remove/Install Components - Shown On Model 218 (2 Of 4)

Courtesy of MERCEDES-BENZ USA

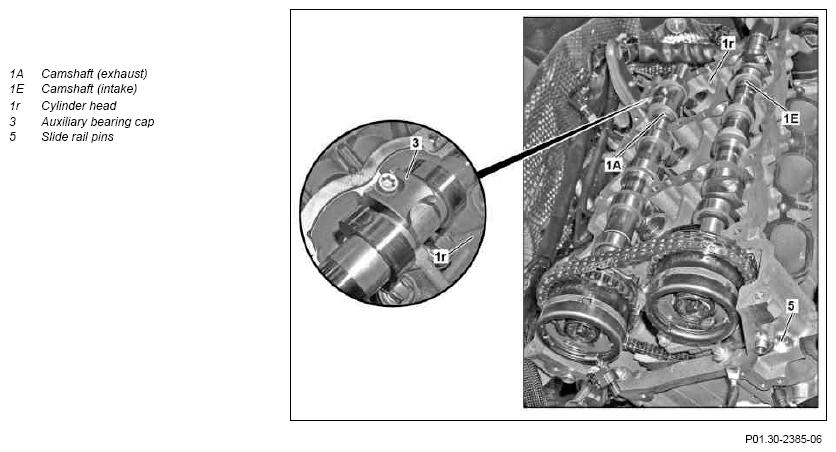

Fig 3: Right Cylinder Head Remove/Install Components - Shown On Model 218 (3 Of 4)

Courtesy of MERCEDES-BENZ USA

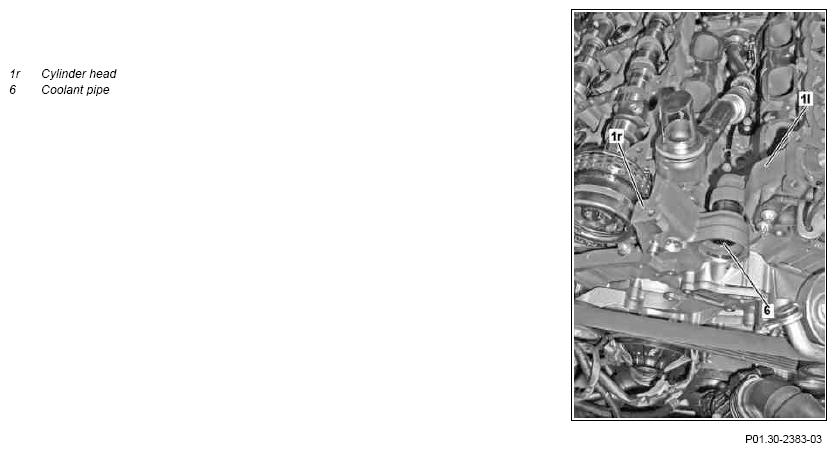

Fig 4: Right Cylinder Head Remove/Install Components - Shown On Model 218 (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Note on the -voltage on-board electrical system		AH54.00-P-0010-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Perform enable for the high voltage on-board electrical system	MODEL 212.095/195	AR54.10-P-1150EH
2	Remove bulkhead (78)	MODEL 212.095/195 Pay attention to correct seating of bulkhead (78).	AR61.25-P-6600EW
3	Remove cylinder head cover		AR01.20-P-5012EEL
4.1	Remove exhaust manifold with CAT	ENGINE 276.9 with CODE 920 (Gasoline direct injection with stratified charge)	AR14.10-P-4095EL
4.2	Remove exhaust manifold	ENGINE 276.9 except CODE 920 (Gasoline direct injection with stratified charge)	AR14.10-P-3006EHV
5	Drain coolant		AR20.00-P-1142EL
	Notes on coolant		AH20.00-N-2080-01A
6	Remove coolant thermostat		AR20.10-P-2460EL
7	Remove coolant pipe (6)	Install new coolant pipe (6).
8	Remove EGR line to exhaust gas recirculation valve	Clamp on EGR line and exhaust gas recirculation valve	*BA14.20-P-1002-01M
9	Remove chain tensioner		AR05.10-P-7800EL
10	Pull sliding rail bolts (5) out of cylinder head (1)	Apply sealant to slide rail pins (5) before inserting them.
		Threaded bolt	Fig 6
		Impact extractor	Fig 7
11	Remove camshafts (1A, 1E)		AR05.20-P-6992EL
		The camshafts (1A, 1E) and camshaft positioner must be removed together.
12	Loosen cylinder head bolts (1) in stages in reverse order of tightening procedure and remove them		AR01.30-P-5800-01MMA
		The cylinder head bolts (1s) must only be loosened for a cooled engine. The cylinder head on the left (1r) can be deformed by tensions otherwise. Replace cylinder head bolts (1s).
		Bolt, cylinder head to crankcase	*BA01.30-P-1001-01W
		Bolt, cylinder head to timing case cover	*BA01.30-P-1002-01W
13	Remove cylinder head (1r) from cylinder crankcase (2)
	Notes on sealant path for cylinder crankcase		AH01.40-P-1000-08MM
	Cylinder head changed		BT01.30-P-0004-01MM
		Apply sealant to cylinder crankcase (2). Fit new cylinder head gasket onto the crankcase (2). Pay attention to pilot bushing for fixing the cylinder head (1r).
		Application gun	Fig 5
14	Install check valve for chain tensioner on cylinder head (1r)	When replacing the cylinder head (1r).	AR01.30-P-5810EL
	Clean
15	Clean sealing surfaces at cylinder head (1r) and at crankcase (2)		AR01.00-P-0050-01A
		Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can get damaged otherwise.
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
16	Blow out threaded holes for cylinder head bolts (1s) in crankcase (2) with compressed air, and clean off the engine oil and the coolant
17	Check sealing surfaces on cylinder head (1r) and crankcase (2) for cracks and unevenness	The cylinder head (1r) and crankcase (2) must not be reworked (surface grinding). The cylinder head (1r) or the cylinder crankcase (2) may be destroyed otherwise due to exceeding the machining tolerances.
18	Install in the reverse order
19	Change engine oil and oil filter element
			AP18.00-P-0101CWZ
	Check
20	Check basic position of the camshafts (1A, 1E)		AR05.20-P-6020EL
21	Check engine cooling system for leaktightness		AR20.00-P-1010EL
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Carry out an engine test run and check engine and fuel system for leaktightness

CYLINDER HEAD

Number	Designation				ENGINE 276
BA01.30-P-1001-01W	Bolt, cylinder head to	M11 crankcase	Stage 1	Nm	20
			Stage 2	Nm	40
			Stage 3	∠°	90
			Stage 4	∠°	90

CYLINDER HEAD

Number	Designation			ENGINE 276
BA01.30-P-1002-01W	Bolt, cylinder head to timing case cover	M7	Nm	14

EXHAUST GAS RECIRCULATION

Number	Designation		ENGINE 276.9
BA14.20-P-1002-01M	Clamp on EGR line and exhaust gas recirculation valve	Nm	9

Fig 5: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Threaded Bolt (116 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
