Retrofit reversing camera - AN54.65-P-0030EW

MODEL 212.0 (except 212.007/074/077/092/095/098) up to 4/14/13 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

MODEL 212.0 (except 212.007/074/077/092/095/098) up to 4/14/13 up to model year 2014 with CODE 527 (COMAND APS) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

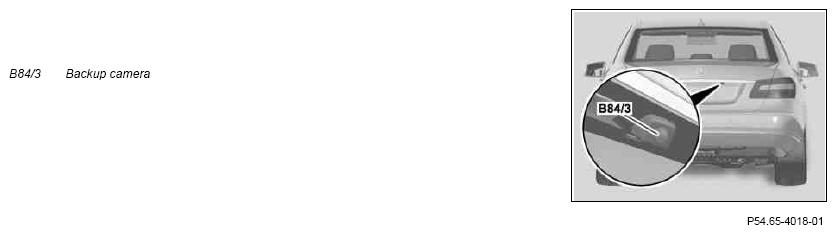

Fig 1: Backup Camera

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move drivers seat toward rear
2	Remove left front and rear door sill
			AR68.30-P-4100EW
3	Loosen front edge guard in the area of the A-pillar cover and in the area of the door sill
4	Remove left A-pillar cover in footwell
5	Remove cover below left of instrument panel
6	Remove center console
			AR68.20-P-2000EW
7	Remove left front floor covering in footwell
8	Release COMAND controller unit
			AR82.60-P-7502EW
		Do not detach wiring harnesses.
9	Remove trims in trunk
			AR68.30-P-4600EW
10	Remove handle strip from trunk lid
			AR88.50-P-5062EW
		Remove the trunk lid cover completely. Replace the old trunk lid handle strip with the trunk lid handle strip contained in the scope of supply.
11.1	Remove side bolster of backrest in rear	Vehicles with CODE 287 (Through-loading feature)
			AR91.12-P-1710CW
11.2	Remove backrest in rear Vehicles without CODE 287 (Through-loading feature)
		Vehicles without CODE 224 (Design individual rear seat system)	AR91.12-P-1620CW
		Vehicles with CODE 224 (Design individual rear seat system)	AR91.12-P-1620EW
	Install
12	Retrofit reversing camera power supply module		AN54.65-P-0030-01EW
13	Retrofit reversing camera wiring harness (B84/3)		AN54.65-P-0030-03EW
		Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
		Wiring harness repair kit	Figure
14	Install remaining parts
15	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 218 (Reversing camera)
16	Document retrofitted equipment in VeDoc	Attach a note "Reversing camera retrofitted as per AN54.65-P-0030EW" under field organization texts for DG 54.
17	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
18	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Front SAM with fuse and relay module" "Central gateway (CGW)" "COMAND controller unit"
19	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
20	Perform function test

Fig 2: Identifying Wiring Harness Repair Kit (211 589 01 99 00)

Courtesy of MERCEDES-BENZ USA
