Retrofit the backup camera wiring harness - AN54.65-P-0030-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.007/074/077/092/095/098) up to 4/14/13 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) except CODE 460 (Canada version) except CODE 494 (US version) except CODE 498 (Japanese version) except CODE 830 (Vehicles for China, additional parts) except CODE P44 (Parking package)

MODEL 212.0 (except 212.007/074/077/092/095/098) up to 4/14/13 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) except CODE 460 (Canada version) except CODE 494 (US version) except CODE 498 (Japanese version) except CODE 830 (Vehicles for China, additional parts) except CODE P44 (Parking package)

GROUND POINTS

Number Designation Model 212
BA00.19-P-1006-01D Left rear wheel arch ground point W6 Nm 10
Fig 1: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G10239991Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Passenger Car Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G10239992Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-05A Cavity preservation, solvent-free (1 l container) A 000 986 72 70 05

Connection scheme

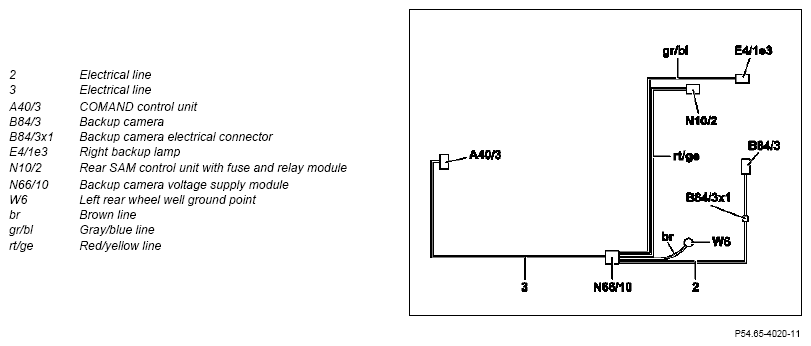

Fig 3: COMAND Control Unit Connection Schematic
G10239993Courtesy of MERCEDES-BENZ USA

Routing diagram

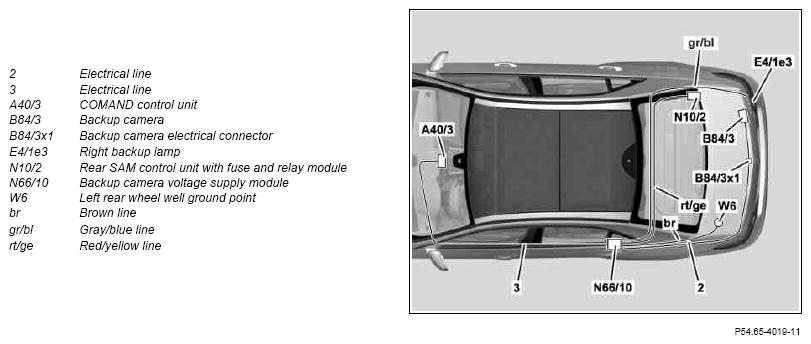

Fig 4: COMAND Control Unit Routing Diagram
G10239994Courtesy of MERCEDES-BENZ USA

NOTES Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.

  1. Route electrical line of reversing camera (B84/3) through specified opening into interior of trunk lid and clip reversing camera (B84/3) into place.
  2. Detach protective foil (4) from reversing camera (B84/3).

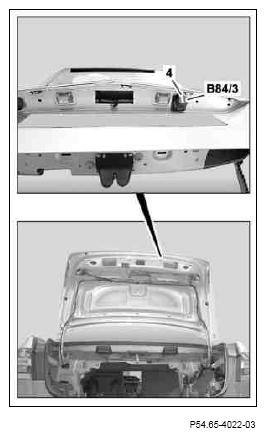

    Fig 5: Protective Foil And Reversing Camera (B84/3)
    G10239995Courtesy of MERCEDES-BENZ USA
  3. Connect black, 4-pin connector and white, 6-pin connector to reversing camera power supply module (N66/10).
  4. Install cable duct (6).

    On vehicles with no cable duct (6).

  5. Route electrical line (2) of reversing camera and brown line (BN) through cable duct (6) to left side of trunk.
  6. Route gray/blue line (GY/BU) and red/yellow line (RD/YE) along existing wiring harnesses of reversing camera power supply module (N66/10) to right side of the trunk and fix in place using cable ties.

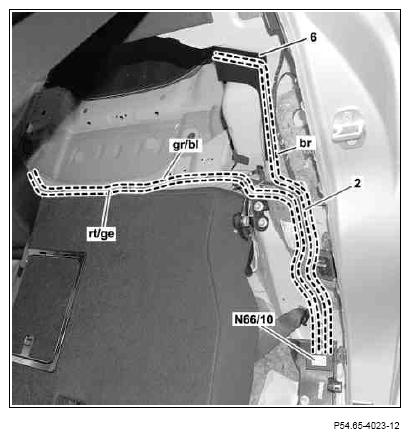

    Fig 6: Routing Electrical Line Of Reversing Camera And Brown Line Through Cable Duct
    G10239996Courtesy of MERCEDES-BENZ USA
  7. Route electrical line (2) from cable duct (6) to reversing camera, clip retaining clip connected to electrical line (2) into corresponding holes and fit clamps (5), as shown, onto trunk lid.

    NOTES Route electrical line (2) between trunk lid hinge and left rear wheel well with sufficient clearance. Otherwise, the unobstructed movement of the trunk lid hinge may be impaired or the electrical line (2) may be sheared off.

  8. Connect electrical connection for reversing camera (B84/3x1) using black, 4-pin connector of electrical line (2) and black, 4-pin connector of reversing camera.

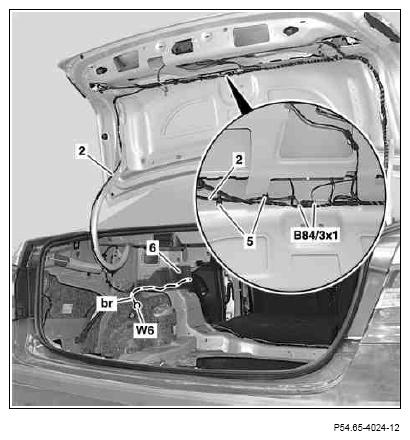

    Fig 7: Routing Electrical Line From Cable Duct To Reversing Camera, Clip Retaining Clip Connected To Electrical Line
    G10239997Courtesy of MERCEDES-BENZ USA
  9. Apply preservation agent to clamp (5) contact points.
  10. Connect brown line (BN) to ground point, left rear wheel arch (W6). TORQUE SPECIFICATION .
  11. Route gray/blue line (GY/YE) along existing wiring harnesses to right backup lamp and fix in place using cable ties.

    NOTES Route gray/blue line (GY/BU) between trunk lid hinge and right rear wheel well with sufficient clearance.

    Otherwise, the unobstructed movement of the trunk lid hinge may be impaired or the gray/blue (GY/BU) line may be sheared off.

  12. Route red/yellow line (RD/YE) along existing wiring harnesses to green fuse holder (7) of rear SAM control unit with fuse and relay module (N10/2) and fix in place with cable ties.

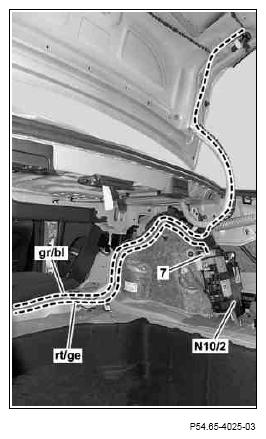

    Fig 8: Rear SAM Control Unit With Fuse And Relay Module Green Fuse Holder
    G10239998Courtesy of MERCEDES-BENZ USA
  13. Connect gray/blue (GY/BU) of reversing camera wiring harness to the blue/green line (BU/GN) of right backup lamp (E4/1e3) using potential distributor (8) and wrap felt tape around potential distributor (8).

    IMPORTANT The potential distributor (8) is available in the SPECIAL TOOL Basic wiring harness repair kit or the SPECIAL TOOL Supplement wiring harness repair kit for passenger cars.

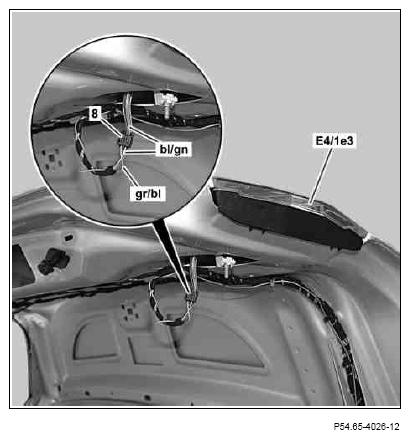

    Fig 9: Reversing Camera Wiring Harness Gray/Blue (GY/BU) And Potential Distributor
    G10239999Courtesy of MERCEDES-BENZ USA
  14. Detach green fuse holder (7) from rear SAM control unit with fuse and relay module (N10/2).
  15. Mount red/yellow line (RD/YE) into contact cavity 4 of green fuse holder (7).
  16. Insert 5 A fuse (10) into green fuse holder (7).
  17. Plug green fuse holder (7) onto rear SAM control unit with fuse and relay module (N10/2).

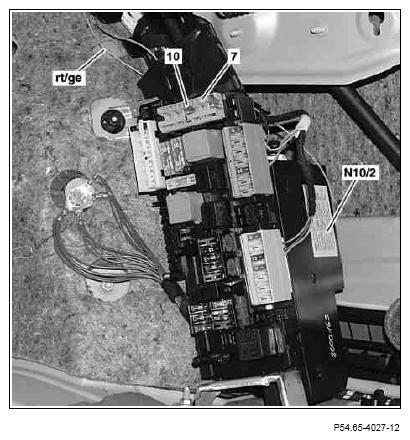

    Fig 10: Detaching Green Fuse Holder From Rear Sam Control Unit With Fuse And Relay Module
    G10240000Courtesy of MERCEDES-BENZ USA
  18. Route electrical line (3) from power supply module for reversing camera (N66/10) into existing cable ducts along given wiring harnesses to the COMAND controller unit and fix in place with cable ties.

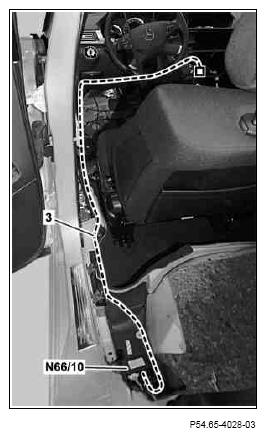

    Fig 11: Routing Electrical Line From Power Supply Module For Reversing Camera
    G10240001Courtesy of MERCEDES-BENZ USA
  19. Model 212.0 except code 518 (Media Interface) and except code 610 (Night View Assist) Install electrical line (3) into the green, 2-pin connector (9) included in the scope of supply, and plug green, 2- pin connector (9) onto green slot of COMAND controller unit (A40/3).
  20. Model 212.0 with code 518 (Media Interface), model 212.0 with code 610 (Night View Assist) Remove green, 2-pin connector (9) from COMAND controller unit (A40/3), install electrical line (3) into free slot of green, 2-pin connector (9) and plug green, 2-pin connector (9) onto green slot of COMAND controller unit (A40/3).

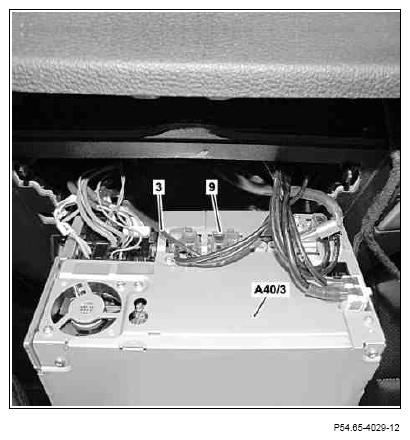

    Fig 12: COMAND Controller Unit Electrical Line And 2-Pin Connector
    G10240002Courtesy of MERCEDES-BENZ USA
  21. Model 212.0 with code 518 (Media Interface) and with code 610 (Night View Assist) Detach green, 2-pin connector (9) from COMAND controller unit (A40/3).
  22. Model 212.0 with code 518 (Media Interface) and with code 610 (Night View Assist) Remove media interface connector from contact cavity 1 of given green, 2-pin connector (9), wrap with felt tape and strap down onto the vehicle wiring harness.
  23. Model 212.0 with code 518 (Media Interface) and with code 610 (Night View Assist) Install electrical line (3) into free slot of existing green, 2-pin connector (9) and plug green, 2-pin connector (9) onto green slot of COMAND controller unit (A40/3).

    IMPORTANT The media interface video feature is no longer available.

    Fig 13: COMAND Controller Unit Electrical Line And 2-Pin Connector
    G10240003Courtesy of MERCEDES-BENZ USA
