Retrofit reversing camera - AN54.65-P-0030ES

MODEL 212.2## (except 212.207/274/277/292/298) 1# up to 4/14/13 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version/additional parts) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

MODEL 212.2## (except 212.207/274/277/292/298) 1# up to 4/14/13 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version/additional parts) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version) without CODE P44 (Parking package)

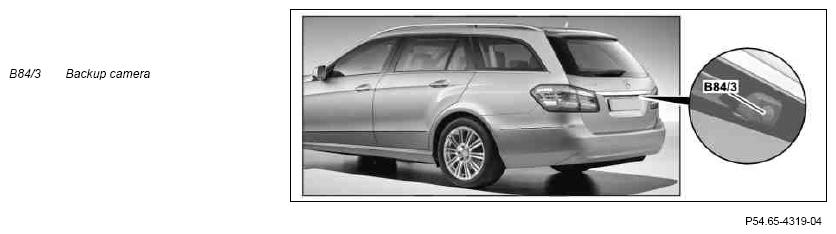

Fig 1: Backup Camera

Courtesy of MERCEDES-BENZ USA

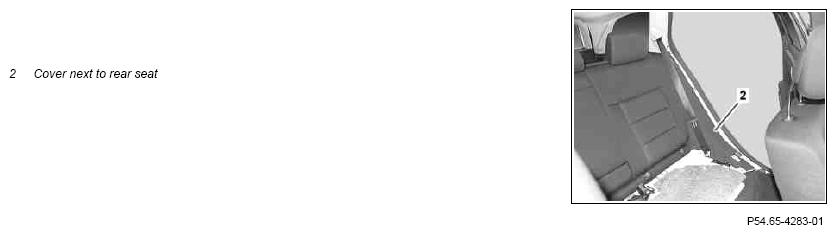

Fig 2: Cover Next To Rear Seat

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move drivers seat toward rear
2	Remove left front and rear door sill
			AR68.30-P-4100EW
3	Loosen left front edge guard in the area of the A-pillar cover and in the area of the door sill
4	Remove left A-pillar cover in footwell
5	Remove cover below left of instrument panel
6	Detach center console
			AR68.20-P-2000EW
		Do not detach wiring harnesses.
7	Remove left front floor covering in footwell
8	Release COMAND controller unit
			AR82.60-P-7502EW
		Do not detach wiring harnesses.
9	Remove trim in cargo area
			AR68.30-P-1180ES
10	Remove handle strip for liftgate	Remove trunk lid trim assembly. The trunk lid handle strip is no longer required.
11	Remove seat cushion in the rear
		Vehicles without CODE 224 (Design individual rear seat system)	AR91.12-P-1020CW
12	Fold down backrest in rear
13	Remove trim at left next to the rear seat (2)
14	Remove headliner
	Install
15	Retrofit reversing camera power supply module		AN54.65-P-0030-06ES
16	Retrofit wiring harness and reversing camera (B84/3)		AN54.65-P-0030-03ESA
		Wiring harness repair kit	Figure
17	Install remaining parts
18	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  CODE 218 (Reversing camera)
19	Document retrofitted equipment in VeDoc	Attach a note "Reversing camera retrofitted as per AN54.65-P-0030ES " under field organization texts for DG 54.
20	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
21	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Front SAM with fuse and relay module" "Central gateway (CGW)" "COMAND controller unit"
22	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
23	Perform function test

Fig 3: Identifying Wiring Harness Repair Kit (211 589 01 99 00)

Courtesy of MERCEDES-BENZ USA
