Retrofit reversing camera power supply module - AN54.65-P-0030-06ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2## (except 212.277) 1#

Slide clip (9) onto the reversing camera power supply module (N66/10).
Fasten reversing camera power supply module (N66/10) using clip (9) to inside of D-pillar.

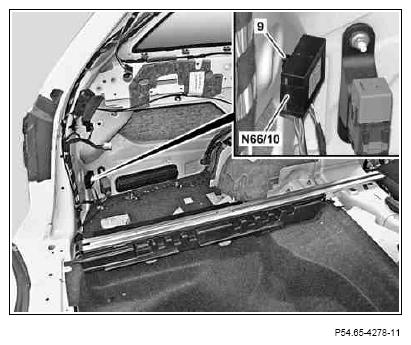

Fig 1: Reversing Camera Power Supply Module Clip
Courtesy of MERCEDES-BENZ USA
