Floor Wire Harness (Left branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Floor Wire Harness (Left branch)

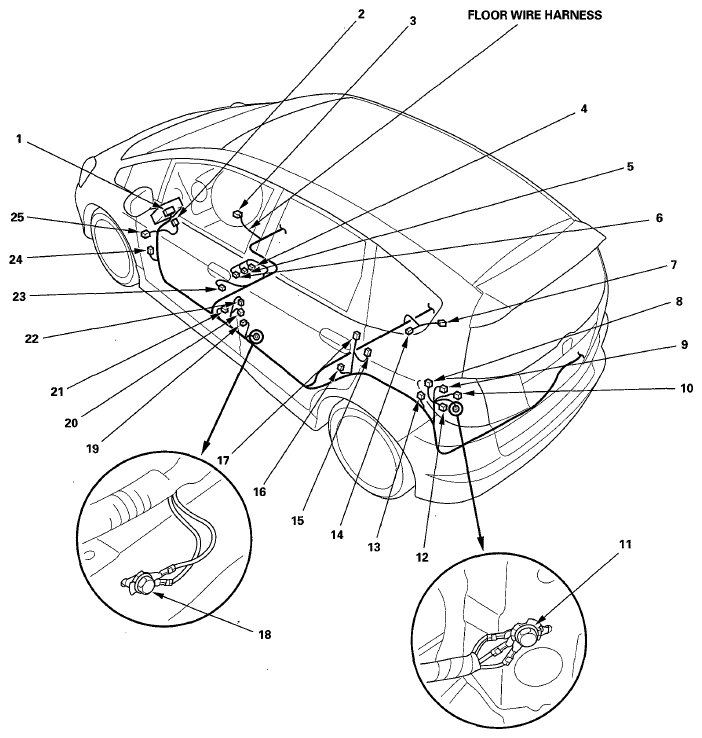

FLOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cargo area light | 13 | 2 | Left side of cargo area | - | - |
| Driver's door switch | 19 | 1 | Left B-pillar | - | - |
| Driver's seat belt buckle switch | 4 | 2 | Under driver's seat | - | - |
| Driver's seat belt tensioner | 20 | 4 | Left B-pillar | - | - |
| Driver's side airbag inflator | 6 | 2 | Under driver's seat | - | - |
| Left back-up light | 9 | 2 | Behind left taillight | - | - |
| Left rear door switch | 16 | 1 | Left C-pillar | - | - |
| Left rear wheel speed sensor | 14 | 2 | Under floor | - | - |
| Left side curtain airbag inflator | 17 | 2 | Left C-pillar | - | - |
| Left side impact sensor (first) | 21 | 4 | Left B-pillar | - | - |
| Left side impact sensor (second) | 15 | 2 | Left C-pillar | - | - |
| Left taillight/brake light | 10 | 4 | Behind left taillight | - | - |
| Left turn signal light | 12 | 3 | Behind left taillight | - | - |
| Right rear wheel speed sensor | 7 | 2 | Under floor | - | - |
| SRS unit connector B | 3 | 39 | Under middle of dash | - | - |
| Under-dash fuse/relay box connector C (see UNDER-DASH FUSE/RELAY BOX )) | 1 | 49 | Under left side of dash | - | - |
| C303 | 2 | 6 | Under left side of dash | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - |
| C601 | 24 | 12 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | - |
| C602 | 23 | - | Under middle of dash | Fuel tank subharness (see FUEL TANK SUBHARNESS ) | - |
| C604 | 5 | 3 | Under driver's seat | Driver's seat position sensor harness (see DRIVER'S SEAT POSITION SENSOR HARNESS ) | - |
| C701 | 8 | 13 | Left side of cargo area | Tailgate wire harness (see TAILGATE WIRE HARNESS ) | - |
| C752 | 25 | 4 | Under left side of dash | Driver's door wire harness (see DRIVER'S DOOR WIRE ) | - |
| C771 | 22 | 18 | Left C-pillar | Left rear door wire harness (see LEFT REAR DOOR WIRE HARNESS ) | - |
| G601 | 18 | - | Left side of floor | Body ground, via floor wire harness | - |
| G602 | 11 | - | Behind left taillight | Body around, via floor wire harness | - |
