Left Engine Compartment Wire Harness (Dash branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Left Engine Compartment Wire Harness (Dash branch)

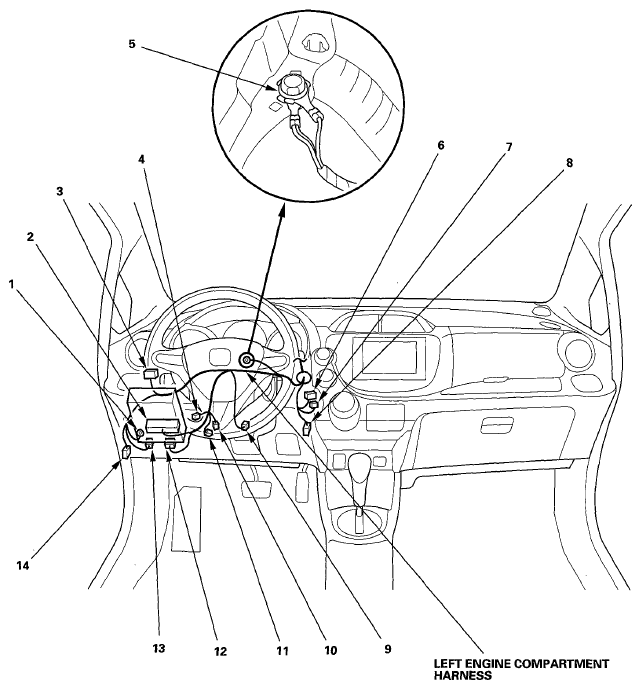

LEFT ENGINE COMPARTMENT WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Accelerator pedal position sensor | 8 | 6 | Under left side of dash | - | - |
| Brake pedal position switch | 9 | 4 | Under left side of dash | - | - |
| Clutch interlock switch (for starter) | 10 | 2 | Under left side of dash | - | M/T |
| Clutch pedal position switch (for cruise) | 11 | 2 | Under left side of dash | - | M/T |
| EPS control unit connector B | 3 | 16 | Under left side of dash | - | - |
| Optional connector (for engine starter) | 4 | 2 | Under left side of dash | - | - |
| Under-dash fuse/relay box connector B (see UNDER-DASH FUSE/RELAY BOX ) | 2 | 36 | Under left side of dash | - | - |
| C203 | 6 | 13 | Under left side of dash | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - |
| C204 | 7 | 2 | Under left side of dash | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - |
| C301 | 12 | 13 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | - |
| C302 | 13 | 4 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | - |
| C303 | 14 | 6 | Under left side of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
| T9 | 1 | - | Under left side of dash | Under-dash fuse/relay box (see UNDER-DASH FUSE/RELAY BOX ) | - |
| G401 | 5 | - | Under left side of dash | Body ground, via left engine compartment wire harness | - |
