Driver's Seat Position Sensor Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Driver's Seat Position Sensor Harness

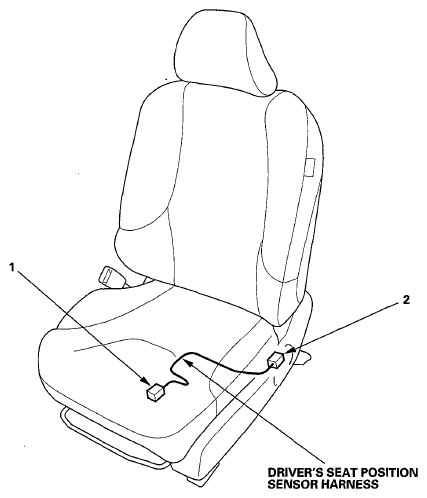

DRIVER'S SEAT POSITION SENSOR HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's seat position sensor | 2 | 2 | Inside of driver's seat | - | - |
| C604 | 1 | 3 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
