Fuel Tank Subharness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Fuel Tank Subharness

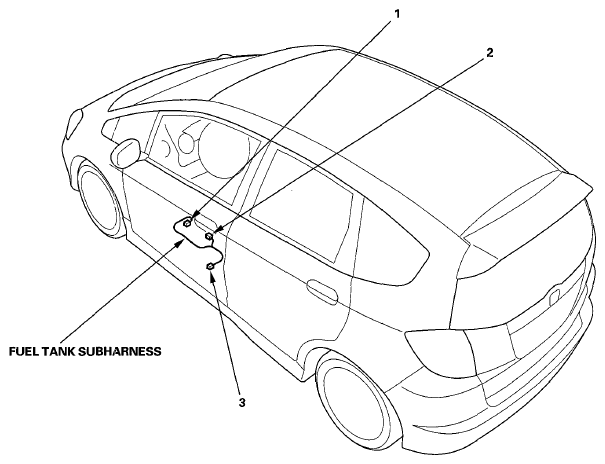

FUEL TANK SUBHARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Evaporative emission (EVAP) canister vent shut valve | 1 | 2 | Under middle of floor | - | - |
| Fuel tank pressure (FTP) sensor | 3 | 3 | Under middle of floor | - | - |
| C602 | 2 | 6 | Under middle of floor | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
