Driver's Door Wire Harness

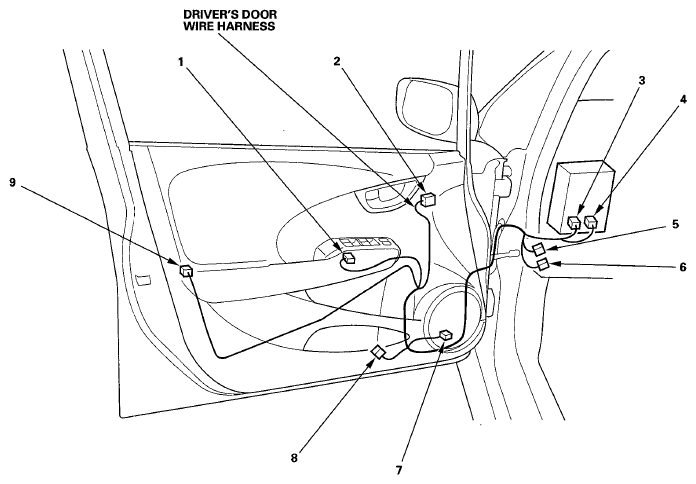

DRIVER'S DOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's door lock actuator/knob switch/key cylinder switch | 9 | 10 | Driver's door | - | With power door locks |
| Driver's door speaker | 7 | 2 | Driver's door | - | - |
| Driver's power window motor | 8 | 6 | Driver's door | - | - |
| Left power mirror | 2 | 6 | Driver's door | - | - |
| Power window master switch | 1 | 22 | Driver's door | - | - |
| Under-dash fuse/relay box connector E (see UNDER-DASH FUSE/RELAY BOX ) | 3 | 12 | Under left side of dash | - | - |
| Under-dash fuse/relay box connector F (see UNDER-DASH FUSE/RELAY BOX ) | 4 | 6 | Under left side of dash | - | - |
| C751 | 5 | 13 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | - |
| C752 | 6 | 4 | Under left side of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
