Tailgate Wire Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Tailgate Wire Harness

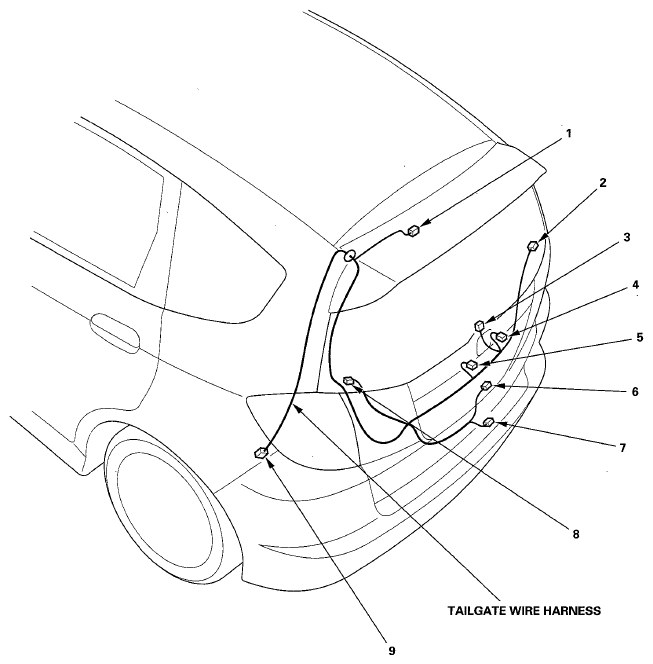

TAILGATE WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| High mount brake light | 1 | 2 | Behind high mount brake light | - | - |
| Left license plate light | 5 | 2 | Middle of tailgate | - | - |
| Rear window defogger connector A (+) | 8 | 1 | Left side of tailgate | - | - |
| Rear window defogger connector B (-) - | 2 | 1 | Right side of tailgate | - | - |
| Rear window wiper motor | 3 | 4 | Middle of tailgate | - | - |
| Right license plate light | 4 | 2 | Middle of tailgate | - | - |
| Tailgate latch switch | 7 | 2 | Lower side of tailgate | - | - |
| Tailgate lock actuator | 6 | 2 | Lower side of tailgate | - | - |
| C701 | 9 | 13 | Left side of cargo area | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
