Left Rear Door Wire Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Left Rear Door Wire Harness

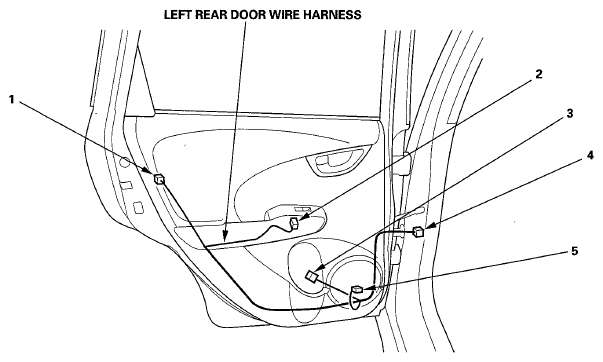

LEFT REAR DOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Left rear door lock actuator/knob switch | 1 | 10 | Left rear door | - | With power door locks |
| Left rear door speaker | 5 | 2 | Left rear door | - | - |
| Left rear power window motor | 3 | 2 | Left rear door | - | - |
| Left rear power window switch | 2 | 5 | Left rear door | - | - |
| C771 | 4 | 18 | Left B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - |
