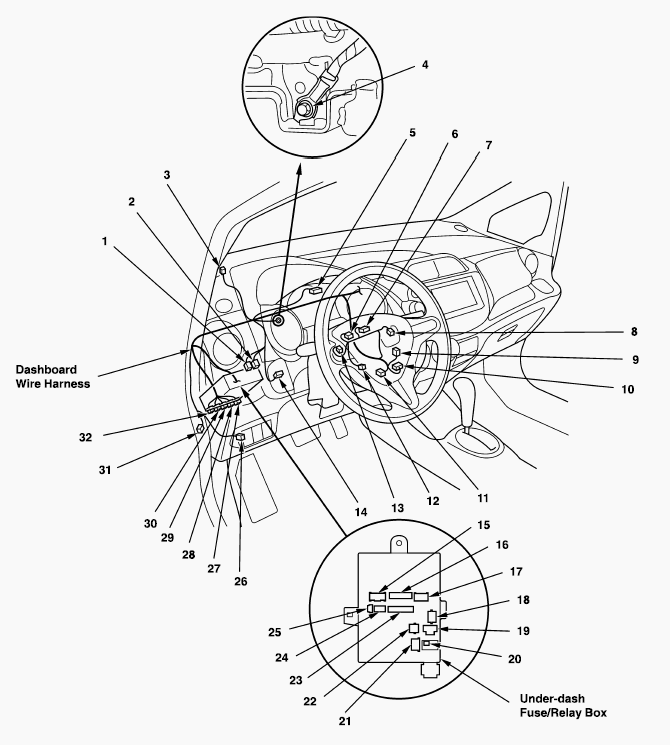

Dashboard Wire Harness (View of driver's side)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Dashboard Wire Harness (View of driver's side)
DASHBOARD WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||
|---|---|---|---|---|---|---|---|---|---|
| Auxiliary under-dash fuse box | 28 | - | Under left side of dash | - | - | ||||
| Cable reel connector A | 6 | 20 | In the steering column | - | - | ||||
| Combination light switch | 13 | 12 | In the steering column | - | - | ||||
| Driver's airbag inflator | 7 | 4 | In the steering column | - | - | ||||
| Fog light relay | 2 | 4 | under left side of dash | Auxiliary under-dash relay box | - | ||||
| Gauge control module | 5 | 32 | Behind gauge | - | - | ||||
| HandFreeLink control unit | 26 | 32 | Under left side of dash | - | (1) | ||||
| HandFreeLink control unit | 26 | 28 | Under left side of dash | - | (2) | ||||
| Ignition key switch | 10 | 6 | In the steering column | - | - | ||||
| Ignition switch | 11 | 7 | In the steering column | - | - | ||||
| Immobilizer-keyless control unit | 9 | 7 | In the steering column | - | - | ||||
| Left tweeter | 3 | 2 | Left side of dash | - | With tweeter | ||||
| Power mirror switch | 14 | 13 | Left side of dash | - | - | ||||
| Security horn relay | 1 | 4 | Under left side of dash | Auxiliary under-dash relay box | Security | ||||
| Steering angle sensor | 12 | 5 | In the steering column | - | - | ||||
| Under-dash fuse/relay box connector K (see UNDER-DASH FUSE/RELAY BOX ) | 15 | 10 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector M (see UNDER-DASH FUSE/RELAY BOX ) | 16 | 34 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector N (see UNDER-DASH FUSE/RELAY BOX ) | 17 | 8 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector P (see UNDER-DASH FUSE/RELAY BOX ) | 25 | 4 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector Q (see UNDER-DASH FUSE/RELAY BOX ) | 24 | 16 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector R (see UNDER-DASH FUSE/RELAY BOX ) | 23 | 28 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector S (see UNDER-DASH FUSE/RELAY BOX ) | 18 | 3 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector T (see UNDER-DASH FUSE/RELAY BOX ) | 19 | 2 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector W (see UNDER-DASH FUSE/RELAY BOX ) | 22 | 1 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector X (see UNDER-DASH FUSE/RELAY BOX ) | 21 | 3 | Under left side of dash | - | - | ||||
| Under-dash fuse/relay box connector Y (see UNDER-DASH FUSE/RELAY BOX ) | 20 | 3 | Under left side of dash | ELD | - | ||||
| VSA OFF switch | 27 | 5 | Left side of dash | - | With VSA | ||||
| Wiper/washer switch | 8 | 8 | In the steering column | - | - | ||||
| C301 | 29 | 13 | Under left side of dash | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - | ||||
| C302 | 33 | 4 | Under left side of dash | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - | ||||
| C601 | 31 | 12 | Under left side of dash | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) | - | ||||
| C751 | 32 | 13 | Under left side of dash | Driver's door wire harness (see DRIVER'S DOOR WIRE ) | - | ||||
| C801 | 30 | 4 | Under left side of dash | Roof wire harness (see ROOF WIRE HARNESS ) | - | ||||
| G501 | 4 | - | Under left side of dash | Body ground, via dashboard wire harness | - | ||||
|
|||||||||
