Overview Of Exterior Lights System Components - GF82.10-S-9998TRA
Model 447

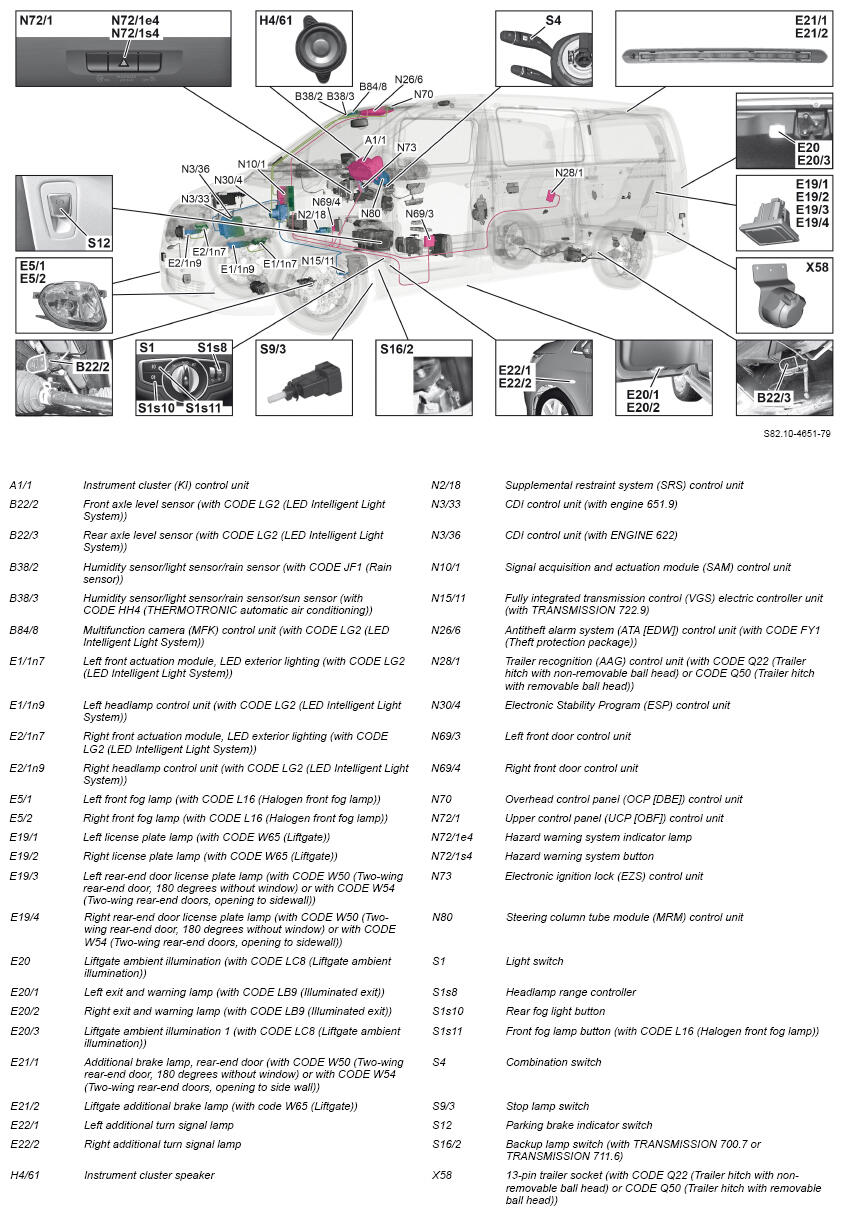

except code XM0 (Facelift)

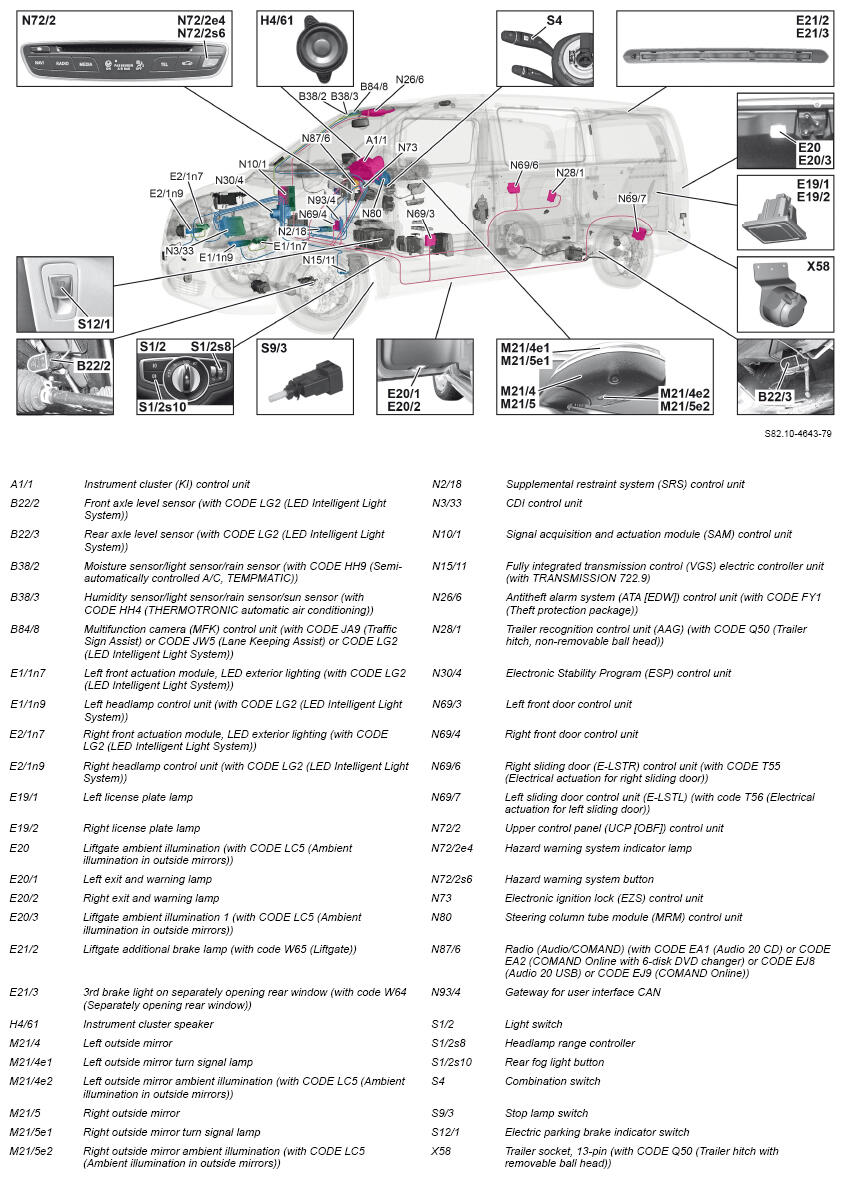

Model 448.7/8
Shown on model 447.6/7 (with engine 622, 651)
Shown: model 447.8 (with engine 651)

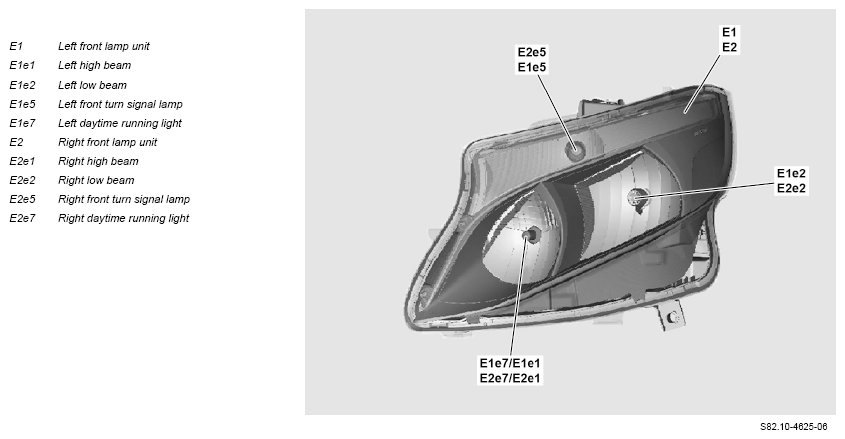

Shown on left front lamp unit (without CODE LG2 (LED Intelligent Light System))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1 m1)
- Right headlamp range adjustment actuator motor (E2m1)

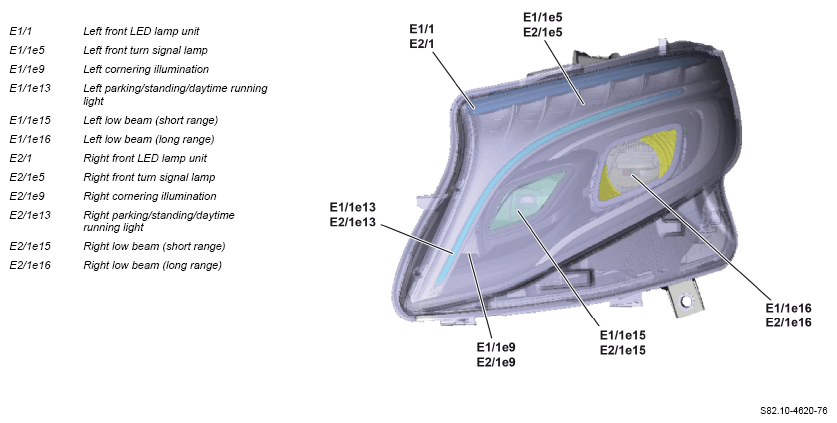

Shown on left front LED lamp unit (with CODE LG2 (LED Intelligent Light System))
The following components are not shown:
- Left active curve light position sensor (E1/1b1)
- Left headlamp range adjustment actuator motor (E1/1m1)
- Left active curve light actuator motor (E1/1 m2)
- Left light distribution actuator motor (E1/1 m3)
- Left front lamp unit fan motor (E1/1m5)
- Right active curve light position sensor (E2/1b1)
- Right headlamp range adjustment actuator motor (E2/1m1)
- Right active curve light actuator motor (E2/1 m2)
- Right light distribution actuator motor (E2/1 m3)
- Right front lamp unit fan motor (E2/1m5)

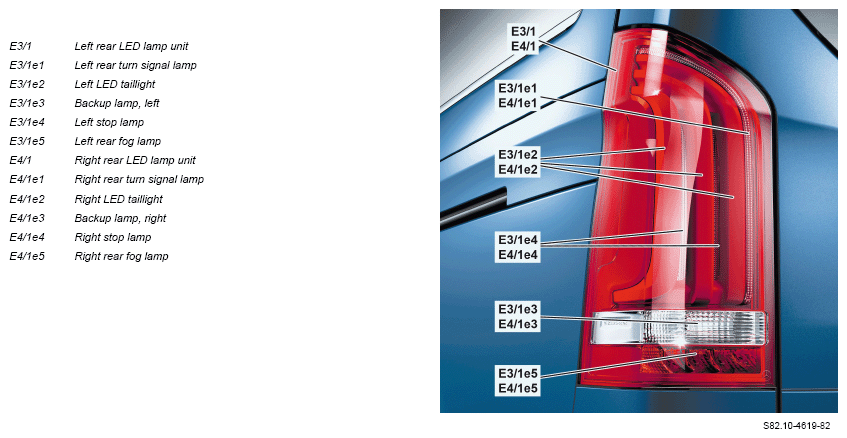

Shown on left rear lamp unit (with CODE LG4 (Taillight, brake light and turn signal light in LED technology))

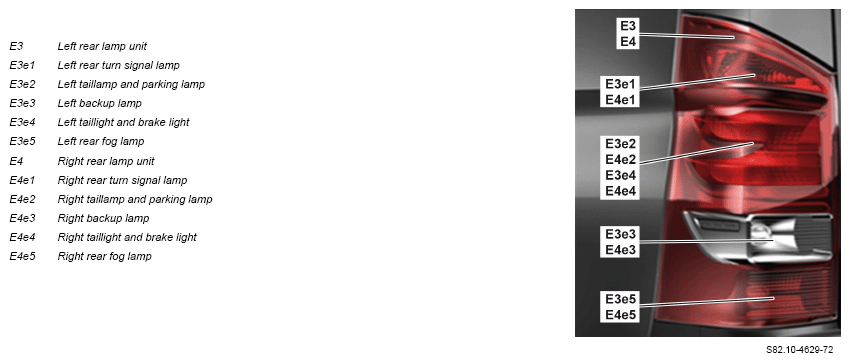

Shown on left rear lamp unit (without CODE LG4 (Taillight, brake light and turn signal light in LED technology))

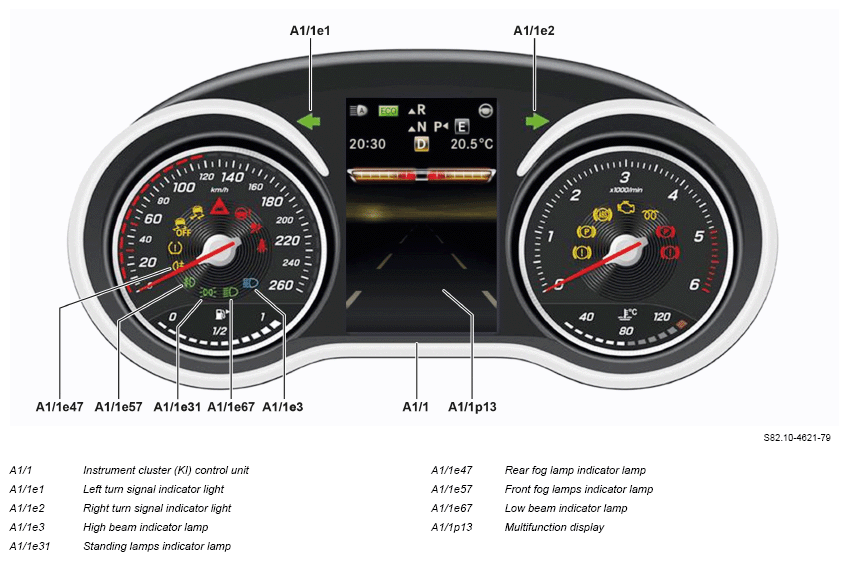

| Instrument cluster (IC) control unit, component description | Model 447.6/7/8 except code XM0 (Facelift) Model 448.7/8 A1/1 |
GF54.30-S-6004TRA | |
| Rain/light sensor with additional functions, component description | Model 447.6/7/8 with code JF1 (rain sensor) except code XM0 (Facelift) Model 448.8 with code JF1 (rain sensor) B38/2, B38/3 |
GF54.21-S-6005TRA | |
| Multifunction camera (MFK) control unit, component description | Model 447.6/7/8 with code JW5 (Lane keeping assist) except code XM0 (Facelift) Model 447.6/7/8 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) Model 448.8 with code JA9 (Traffic Sign Assist) Model 448.8 with code JW5 (Lane keeping assist) B84/8 |
GF54.21-S-3301TRA | |
| Actuation module, LED exterior lighting, front, component description | Model 447 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) model 448.8 with code LG2 (LED Intelligent Light System) E1/1n7, E2/1n7 | GF82.10-S-2160TRA | |
| Headlamp control unit, component description | Model 447.6/7/8 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift) Model 448.8 with code LG2 (LED Intelligent Light System) E1/1n9, E2/1n9 |
GF82.10-S-2020TRA | |
| Supplemental restraint system control unit, component description | Model 447.6/7/8 except code XM0 (Facelift) except code XM7 (MOPF II) |
GF91.60-S-4080TRA | |
| Model 448.7/8 N2/18 |
|||
| Component description for CDI control unit | Model 447.6/7/8 with engine 651.9 except code XMO (Facelift) N3/33 |
GF07.16-S-6000TRB | |
| Model 447.6/7 with engine 622 except code XMO (Facelift) N3/36 |
GF07.16-S-6000TRA | ||
| Component description for ME-SFI (ME) control unit | Model 448 with engine 274 N3/34 |
GF07.61-S-6000TRC | |
| SAM control unit, component description | Model 447.6/7/8 except code XMO (Facelift) N10/1 |
GF54.21-S-4157TRA | |
| Fully integrated transmission control unit (VGS), component description | Model 447.6/7/8 with transmission 722.9 except code XMO (Facelift) Model 448.7/8 with transmission 722.9 N15/11 |
GF27.60-S-5173TRA | |
| ATA/tow-away protection/interior protection control unit, component description | Model 447.6/7/8 with code FY1 (Anti-Theft Protection package) except code XMO (Facelift) N26/6 |
GF80.50-S-4131TRA | |
| Component description for trailer recognition control unit | Model 447.6/7/8 with code Q50 (Trailer coupling with removable ball-type head) except code XMO (Facelift) except code XM7 (MOPF II) Model 447.6/7 with code Q22 (Trailer coupling, rigid coupling head) except code XMO (Facelift) except code XM7 (MOPF II) N28/1 |
GF31.19-S-4050TRA | |
| Electronic Stability Program (ESP(R)) control unit, component description | Model 447 except code XMO (Facelift) except code XM7 (MOPF II) Model 448 N30/4 |
GF42.45-S-3005TRA | |
| Component description for left front door control unit | Model 447 except code XMO (Facelift) except code XM7 (MOPF II) Model 448 N69/3 |
GF72.29-S-6001TRA | |
| Component description for right front door control unit | Model 447 except code XMO (Facelift) except code XM7 (MOPF II) Model 448 N69/4 |
GF72.29-S-6009TRA | |
| Upper control panel control unit, component description | Model 447.8 except code XMO (Facelift) Model 448.8 |
GF54.21-S-6040TRA | |
| N72/2 Model 447.6/7 except code XMO (Facelift) Model 448.7 N72/1 |
GF54.21-S-6040TRB | ||
| Component description for the electronic ignition lock control unit | Model 447.6/7/8 except code XMO (Facelift) except code XM7 (MOPF II) Model 448 except code XM7 (MOPF II) N73 |
GF80.57-S-6001TRA | |
| Steering column tube module control unit (MRM), component description | Model 447.6/7/8 except code XMO (Facelift) except code XM7 (MOPF II) Model 448.7/8 N80 |
GF54.21-S-6052TRA | |
| Component description for the radio | Model 447.8 with code EA1 (Audio 20 CD) except code XM0 (Facelift) Model 447.8 with code EJ8 (Audio 20 USB) except code XM0 (Facelift) N87/6 |
GF82.60-S-3122TRB | |
| Model 447.8 with code EA2 (COMAND Online with 6-disc DVD changer) except code EA1 (Audio 20 CD) except code EJ8 (Audio 20 USB) except code XM0 (Facelift) Model 447.8 with code EJ9 (COMAND Online) except code EA1 (Audio 20 CD) except code EJ8 (Audio 20 USB) except code XM0 (Facelift) Model 448.8 with code EA2 (COMAND Online with 6-disc DVD changer) N87/6 |
GF82.60-S-3122TRC | ||
| Gateway for user interface CAN, component description | Model 447.8 except code XM0 (Facelift) Model 448.8 N93/4 |
GF54.21-S-2124TRA | |
| Table of contents for function description of exterior lights | Model 447.6/7/8 except code XM0 (Facelift) Model 448.7/8 |
GF82.10-S-0999TRA |
