Remove/Install Complete Sideview Mirror - AR88.70-S-9000E
Model 447, 448
Shown on Model 447.8
Shown on Model 447.8 with code F65 (Automatically folding outside mirror), with codeJA7 (Blind Spot Assist), with code EH4 (Convenience Telephony), and with code JS1 (360° camera (360 degree viewing system, SURROUND VIEW))
Shown on Model 447 with code ZU3 (OLU Connect Unit)
Shown on Model 447 with code JH3 (Communication module (LTE) for digital services)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door trim on left and right front door. | Model 447, 448.8 with code JA7 (Blind Spot Monitoring) Model 447.6/7, 448.7 with code F68 (Exterior mirrors, electrically. adjustable and heated) Model 447.6/7 with code F64 (Electrically folding exterior mirrors) Model 447.8, 448.8 with code F65 (Exterior mirrors, automatically folding) Model 447.8, 448.8 with code F69 (Exterior mirrors heated and electrically adjustable, with integral indicators) Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) Model 447.8 with code EH4 (Comfort telephony) Model 447 with code JH3 (Communication module (LTE) for digital services) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) Model 447 with code JO3 (OLU Connect Unit) Model 447 with code JO4 (OLU Compute Unit) |
AR72.10-S-6575E |

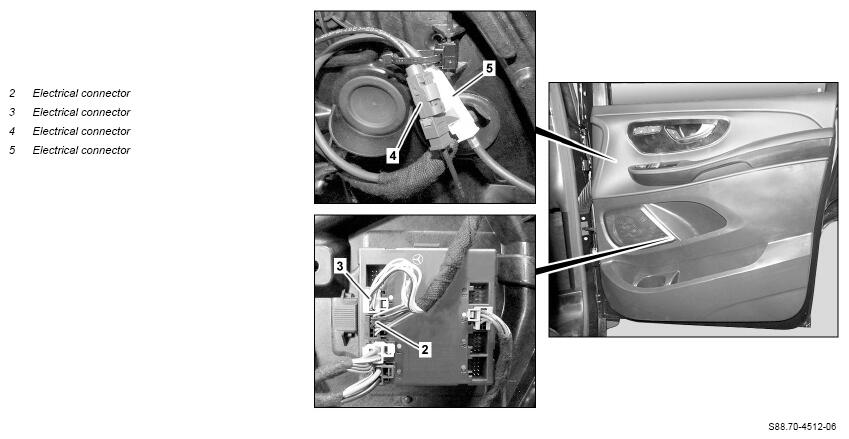

| 2 | Disconnect electrical connector (2). | Model 447, 448.8 with code JA7 (Blind Spot Monitoring) Model 447.6/7, 448.7 with code F68 (Exterior mirrors, electrically. adjustable and heated) Model 447.8, 448.8 with code F69 (Exterior mirrors heated and electrically adjustable, with integral indicators) |
|
| 3 | Disconnect electrical connector (3). | Model 447.6/7 with code F64 (Electrically folding exterior mirrors) Model 447.8, 448.8 with code F65 (Exterior mirrors, automatically folding) |
|
| 4 | Remove electrical wiring harness on outside mirror (8) from door module. | Model 447, 448.8 with code JA7 (Blind Spot Monitoring) Model 447.6/7, 448.7 with code F68 (Exterior mirrors, electrically. adjustable and heated) Model 447.6/7 with code F64 (Electrically folding exterior mirrors) Model 447.8, 448.8 with code F65 (Exterior mirrors, automatically folding) Model 447.8, 448.8 with code F69 (Exterior mirrors heated and electrically adjustable, with integral indicators) Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) Model 447.8 with code EH4 (Comfort telephony) Model 447 with code JH3 (Communication module (LTE) for digital services) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) Model 447 with code JO3 (OLU Connect Unit) Model 447 with code JO4 (OLU Compute Unit) |
Fig 1 |
| 5 | Release and disconnect electrical connector (4). | Model 447.8 with code EH4 (Comfort telephony) When removing outside mirror (8) on front passenger side. |
|
| 6 | Release and disconnect electrical connector (5). | Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) | |

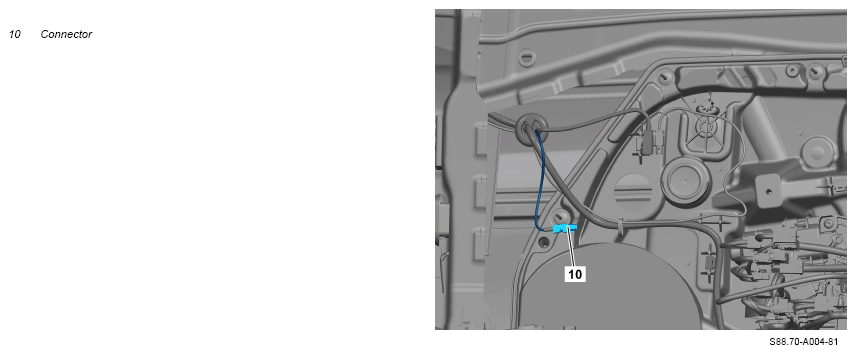

| 7 | Release and disconnect connector (10) of electrical connector. | Model 447 with code JO3 (OLU Connect Unit) Model 447 with code JO4 (OLU Compute Unit) When removing outside mirror (8) on front passenger side. |
|

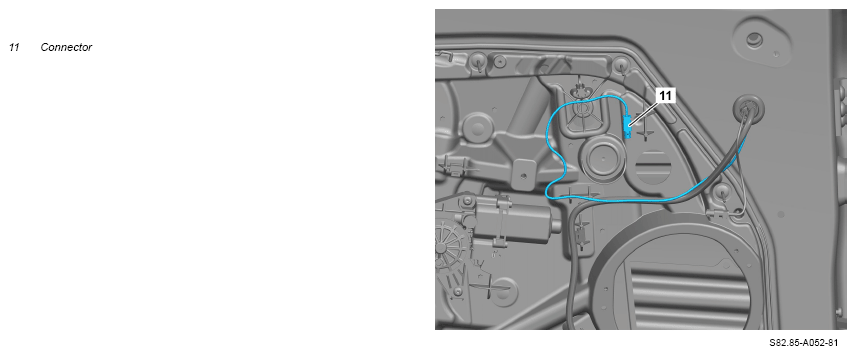

| 8 | Release and disconnect connector (11) of electrical connector. | Model 447 with code JH3 (Communication module (LTE) for digital services) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) |
|

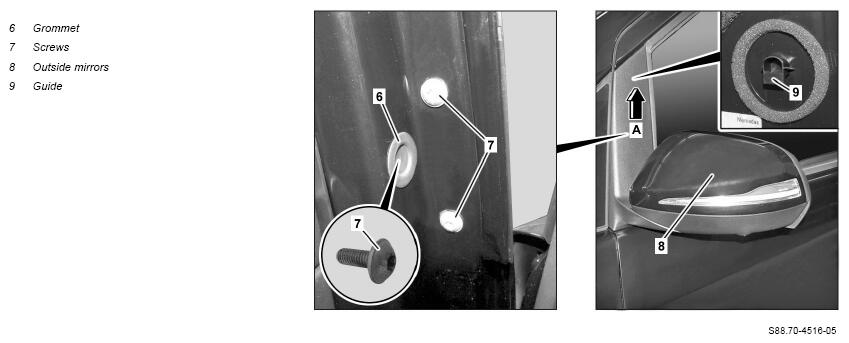

| 9 | Remove grommet (6). | ||
| 10 | Unscrew screws (7). | ||
| 11 | Move outside mirror (8) in direction of arrow (arrow A) and turn. | ||
| 12 | Remove outside mirror (8) and while doing so, guide electrical wiring harness with grommet out of front door. | Model 447, 448.8 with code JA7 (Blind Spot Monitoring) Model 447.6/7, 448.7 with code F68 (Exterior mirrors, electrically. adjustable and heated) Model 447.6/7 with code F64 (Electrically folding exterior mirrors) Model 447.8, 448.8 with code F65 (Exterior mirrors, automatically folding) Model 447.8, 448.8 with code F69 (Exterior mirrors heated and electrically adjustable, with integral indicators) Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) Model 447.8 with code EH4 (Comfort telephony) Model 447 with code JH3 (Communication module (LTE) for digital services) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) Model 447 with code JO3 (OLU Connect Unit) Model 447 with code JO4 (OLU Compute Unit) Guide pull-in aid from inside toward outside and fasten to electrical wiring harness. |
|
| 13 | Remove outside mirror trim. | When replacing outside mirror (8). | AR88.70-S-9040E |
| 14 | Remove side camera. | When replacing outside mirror (8). Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) Model 447, 448 with code JB6 (Parking package with 360-degree camera) Model 447 with code EZ6 (Parking package with 360-degree camera) |
AR54.30-S-3002E |
| 15 | Remove Global System Mobile (GSM) antenna. | When replacing outside mirror (8) on front passenger side. Model 447.8 with code EH4 (Comfort telephony) |
AR82.85-S-0010E |
| 16 | Remove LTE antenna. | Model 447 with code JH3 (Communication module (LTE) for digital services) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) When replacing outside mirror (8). |
AR82.85-S-1105E |
| 17 | Remove Onboard Logic Unit antenna. | When replacing outside mirror (8) on front passenger side. Model 447 with code JO3 (OLU Connect Unit) Model 447 with code JO4 (OLU Compute Unit) |
AR82.62-S-0033E |
| 18 | Install in the reverse order. | ||
| Calibrate | |||
| 19 | Calibrate all cameras in 360° camera system using diagnostic system. | Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) Model 447, 448 with code JB6 (Parking package with 360-degree camera) Model 447 with code EZ6 (Parking package with 360-degree camera) |
|
| AD00.00-S-2000-04E | |||
| Check | |||
| 20 | Check all electrical outside mirror functions (8) for proper function. | ||
| AD00.00-S-2000-04E | |||
| Inform | |||
| 21 | Print out certificate for customer. | Model 447 with code ZU7 (National version for Canada) Model 447 with code ZU8 (National version for USA) When replacing outside mirror (8). |
|
| Information on modified mirror glass, certificate | OF88.70-S-9020-01A |
