Remove/Install Sideview Mirror Trim - AR88.70-S-9040E
Model 447, 448

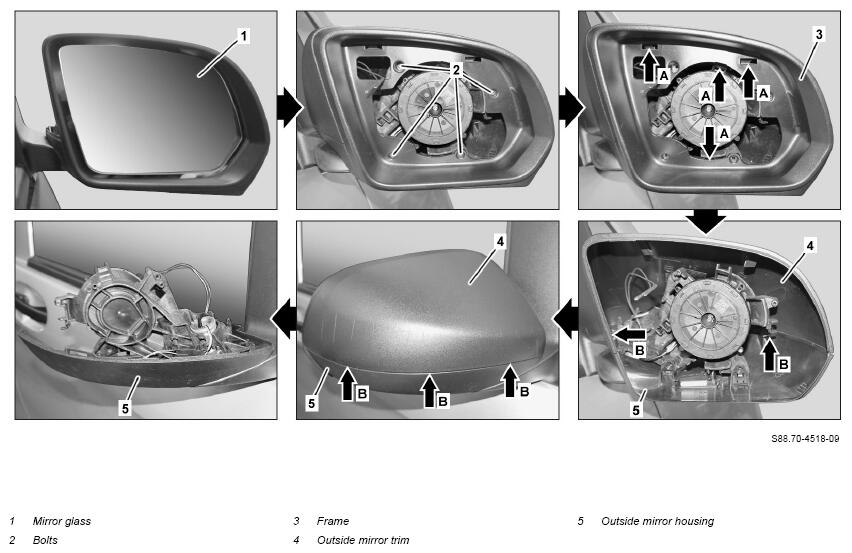

Shown on Model 447.7 with code F68 (Electrically adjustable heated outside mirror)
| Remove/install | |||
| 1 | Remove mirror glass (1) | AR88.70-S-9020E | |
| 2 | Unscrew screws/bolts (2) | ||
| 3 | Release catch hook (arrows A) and remove frame (3) | ||
| 4 | Unlock catch hook (arrows B) and remove outside mirror paneling (4) from outside mirror housing (5) | Fig 1 | |
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform function check of turn signal indicators in outside mirrors | Model 447.8, 448.8 |
