Remove/Install OLU Antenna In Right Outside Mirror - AR82.62-S-0033E
Model 447
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Completely remove right outside mirror. | AR88.70-S-9000E | |
| 2 | Remove trim of outside mirror. | AR88.70-S-9040E | |

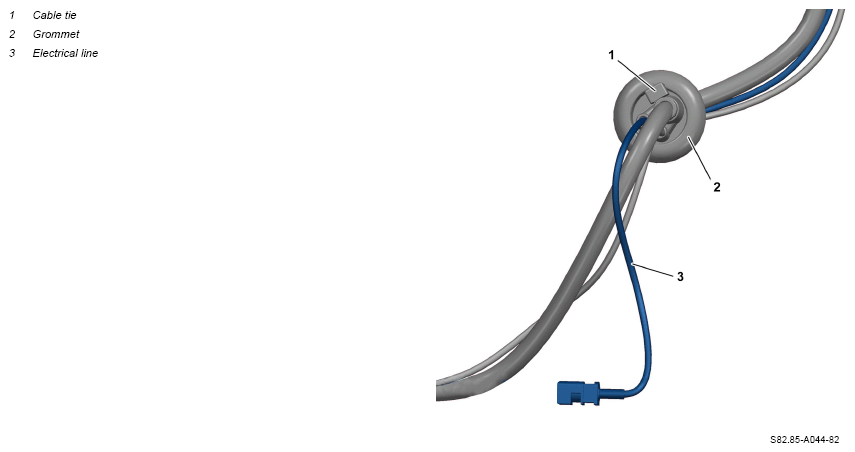

| 3 | Remove cable tie (1) at grommet (2). | ||
| 4 | Release and remove plug coupling of electric line (3). | ||
| 5 | Expose electric line (3) of antenna (5) using a suitable pull-off aid. | ||

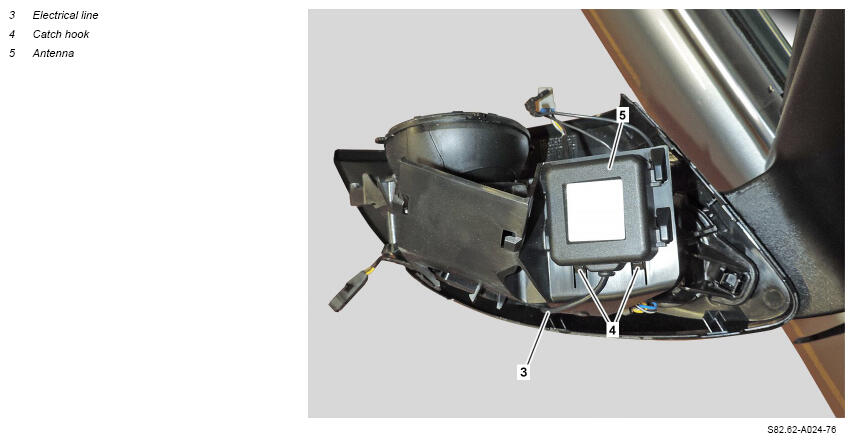

| 6 | Release catch hooks (4) and remove antenna (5) from outside mirror. | ||
| 7 | Install in the reverse order. |
