Remove/Install 360° Camera In Outside Mirror - AR54.30-S-3002E

Model 447, 448.8

With Code JS1 (360° camera (SURROUND VIEW))

Model 447, 448

With Code JB6 (Parking package with 360-degree camera)

Model 447

With Code EZ6 (Parking package with 360-degree camera)

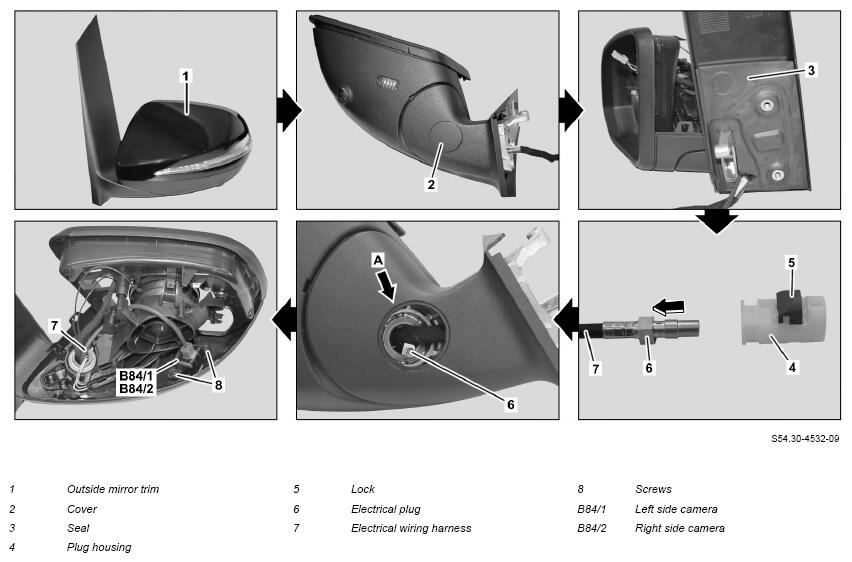

Fig 1: 360° Camera In Outside Mirror Components Location - Model 447 With Code JS1, JB6, EZ6

Courtesy of MERCEDES-BENZ USA

Shown on left outside mirror

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with Motor 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove left and right outside mirror.		AR88.70-S-9000E
3	Remove trim of outside mirror (1).		AR88.70-S-9040E
4	Remove cover (2).	Observe installation position for cover (2).
5	Remove seal (3).
6	Unlock lock (5), pull out electrical plug (6) in direction of arrow and remove plug housing (4).
7	Remove electrical wiring harness (7) from mount of outside mirror.	When pulling out, ensure unobstructed movement of electrical wiring harness (7) in the opening (arrow A). Otherwise the electrical wiring harness (7) can get damaged.
8	Remove screws (8).
9	Remove electrical wiring harness (7) from housing of outside mirror and remove together with left side camera (B84/1) or right side camera (B84/2).	Make sure that the electrical wiring harness (7) at the outside mirror housing is routed correctly.
10	Install in the reverse order.
11	Perform commissioning of left side camera (B84/1) or right side camera (B84/2) using diagnostic system	If left side camera (B84/1) or right side camera (B84/2) has been replaced.
			AD00.00-S-2000-04E
12.1	Calibrate left side camera (B84/1) or right side camera (B84/2) using diagnostic system	If left side camera (B84/1) or right side camera (B84/2) has been removed.
			AD00.00-S-2000-04E
12.2	Calibrate all the cameras in the 360° camera system using the diagnostic system.	If left side camera (B84/1) and right side camera (B84/2) have been removed.
			AD00.00-S-2000-04E
