Remove/Install LTE Antenna In Outside Mirror - AR82.85-S-1105E
Model 447 With Code JH3 (Communication module (LTE) for digital services)
Model 447 With Code JH4 (Communication module (LTE) for ERA-Glonass)
Model 447 With Code JH6 (Pre-installation for communications module for digital services (LTE))

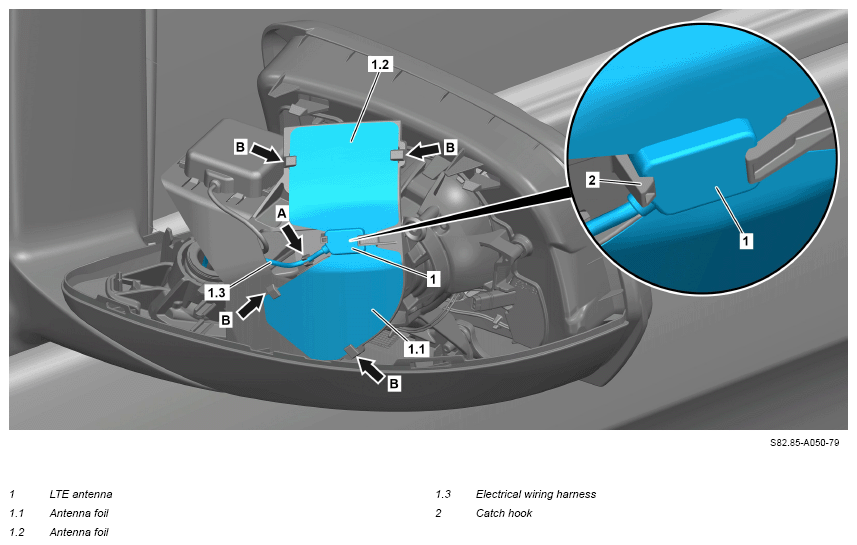

Shown with installed left outside mirror

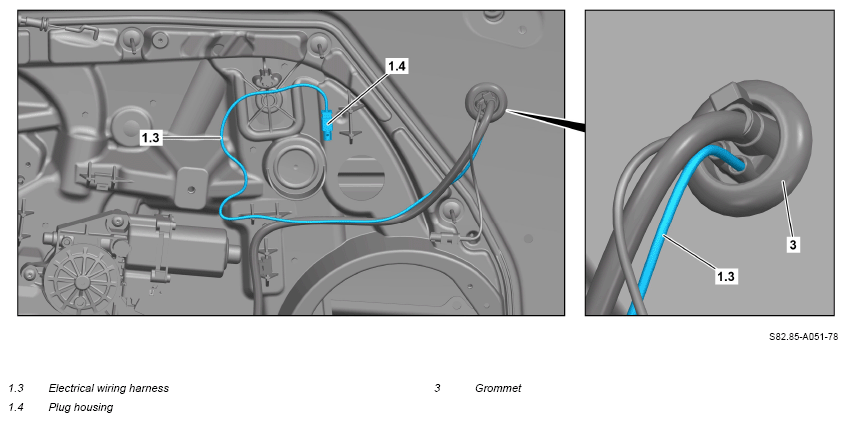

Shown with installed left outside mirror
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove left outside mirror. | Model 447 with code JH3 (Communication module (LTE) for digital services) except code XM7 (MOPF II) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) except code XM7 (MOPF II) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) except code XM7 (MOPF II) |
AR88.70-S-9000E |
| 1.2 | Remove right outside mirror. | Model 447 with code JH3 (Communication module (LTE) for digital services) with code XM7 (MOPF II) Model 447 with code JH4 (Communication module (LTE) for ERA-Glonass) with code XM7 (MOPF II) Model 447 with code JH6 (Pre-installation for communications module for digital services (LTE)) with code XM7 (MOPF II) |
AR88.70-S-9000E |
| 2 | Remove upper cover of relevant outside mirror. | AR88.70-S-9040E | |
| 3 | Guide antenna foils (1.1, 1.2) under retaining tabs (arrows B). | Otherwise, the LTE antenna (1) may malfunction. |
|
| 4 | Unclip electrical wiring harness (1.3) from holder (arrow A). | ||
| 5 | Release LTE antenna (1) at catch hook (2) and release from outside mirror. | ||
| 6 | Remove plug housing (1.4) from electrical wiring harness (1.3). | ||
| 7 | Guide electrical wiring harness (1.3) through grommet (3) and outside mirror. | ||
| 8 | Remove LTE antenna (1). | ||
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Perform function test of LTE antenna (1). |
