Retrofit Camera Cover Control Unit (Code: VS2KAMKLAP) - SM54.21-S-0250A

Model 447.6##/7## 13 as of 844857 up to 853657

with code FR8 (Rear view camera)

with code XM0 (Facelift)

Model 447.8## #3 as of 865110 up to 921571

with code FR8 (Rear view camera)

with code XM0 (Facelift)

Model 447.8## #3 as of 865119 up to 921573

with code JS1 (360° camera (SURROUND VIEW))

with code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Check
1	Check whether vehicle is affected by measure.	Affected vehicles: Retrofit camera cover control unit (code: VS2KAMKLAP) For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.	SM54.21-S-0250-01AAA
2	Check if code FR1 (Rear camera, non-foldable) or code IX1 (Special control purchasing logistics 1) is present in vehicle documentation (VeDoc).	If code FR1 (Rear camera, non-foldable) or IX1 (Special control purchasing logistics 1) is present in vehicle documentation (VeDoc), ↓ continue with operation step 3. If neither the code FR1 (Rear camera, non-foldable) or the IX1 (Special control purchasing logistics 1) are present in VeDoc, ↓ continue with operation step 4.
	Remove code
3	Remove code FR1 (Rear camera, non-foldable) or code IX1 (Special control purchasing logistics 1) in vehicle documentation (VeDoc).	Only carry out if code FR1 (Rear camera, non-foldable) or code IX1 (Special control purchasing logistics 1) is present in VeDoc. The code FR1 (Rear camera, non-foldable) or code IX1 (Special control purchasing logistics 1) can only be removed from VeDoc by a user with write permissions. If no one with change authorization is available, contact the "Wholesale" level first, e.g. "Market Performance Center" (MPC), "General Distributor" (GV), "Logistics Center" (LC), "Regional Logistics Center" (RLC) or "European Logistics Center" (ELC). If, for organizational reasons, the "Wholesale" level is unable to provide the assistance mentioned here, you may then, as an alternative, contact the VeDoc Hotline per ticket in the XENTRY Support (XSF) system. To rule out any routing errors, it is advisable to generate the Ticket in "XSF" from inside VeDoc. In this instance, the ticket must be forwarded in "XSF" from the responsible "Wholesale" level to the VeDoc Hotline.
	Remove
4.1	Remove passenger bench seat in 2nd row.	Model 447.7 with code U63 (Passenger compartment seats, 3-passenger bench seat, 2nd row) with code UR3 (Seat attachment with quick locking (2 passenger seat rows))
			AR91.21-S-4425E
4.2	Move passenger seats of right side all way forward and fold over seat backrest.	Model 447 with code US9 (Individual seat, 2nd rear row. right) See owner's manual.
4.3	Move passenger bench seat, 1st row and 2nd row all the way forward and fold over seat backrest.	Model 447 except code UR3 (Seat fastening with quick lock (2 passenger seat row)) except code ZK7 (MARCO POLO equipment line) See owner's manual.
5.1	Remove load compartment shelf.	Model 447 with code YG4 (Comfort cargo area divider)
			AR68.80-S-5805E
5.2	Remove bed extension.	Mode 447 with code V9B (FUN 2 package: Sleep) Model 447 with code ZK7 (MARCO POLO equipment line)
		Model 447.8 with code V9B (FUN 2 package: Sleep) except code ZK7 (MARCO POLO equipment line)	AR91.75-S-0010EE
		Model 447 with code ZK7 (MARCO POLO equipment line)	AR91.75-S-0010E
6	Remove lock for bed extension on right side of vehicle.	Mode 447 with code V9B (FUN 2 package: Sleep) Model 447 with code ZK7 (MARCO POLO equipment line)
			AR91.75-S-9872E

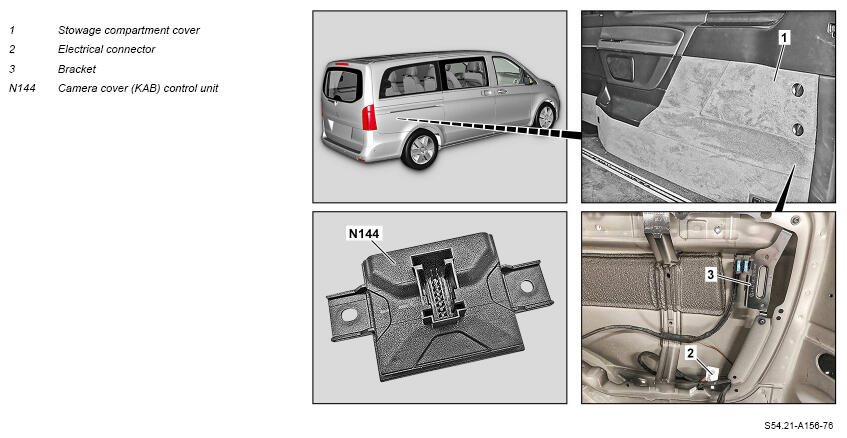

7.1	Remove stowage compartment cover (1).	Model 447 with code V23 (Interior trim, superior quality version)
7.2	Remove rear right load compartment trim.	Model 447.6 Model 447.7 except code V23 (Interior trim, superior quality version)
		Only remove lower right rear load compartment trim.	AR68.30-S-1180E
8	Remove cover for vehicle tool kit mount.	All vehicles with cover for vehicle tool kit mount
9	Remove jack.	Model 447 with code Y36 (Jack) Model 447 with code RR6 (Spare wheel with jack)
10	Remove tools in vehicle tool kit mount.	If installed.
11	Remove D-pillar trim.	All vehicles with code V23 (Interior trim, superior quality version) and vehicle tool kit mount
		Model 447.8 with code ZK7 (MARCO POLO equipment line) Unclip inner trim only  and pull downward out of guides.	AR68.30-S-4495E
12	Partly remove rear right side trim in rear passenger compartment.	All vehicles with code V23 (Interior trim, superior quality version) and vehicle tool kit mount Model 447.7 with code V23 (Interior trim, superior version) Model 447.8 except code ZK7 (MARCO POLO equipment line)	SM54.21-S-0250-02A
		Model 447.8 with code ZK7 (MARCO POLO equipment line)	SM54.21-S-0250-02B
		Bolt, guide to body	*BA72.20-Z-1008-03KOJ
		Long wedge	Fig 2

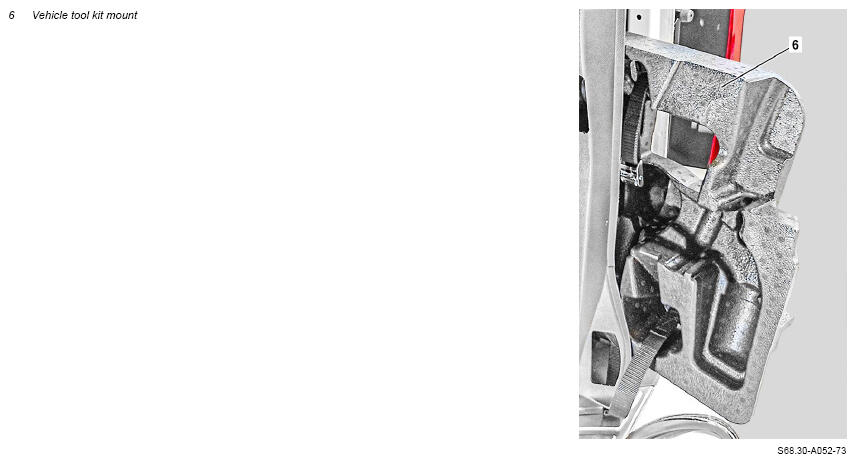

13	Remove vehicle tool kit mount (6).	All vehicles with vehicle tool kit mount
		Remove vehicle tool kit mount (6) towards rear.	AR68.30-S-5020E
	Install

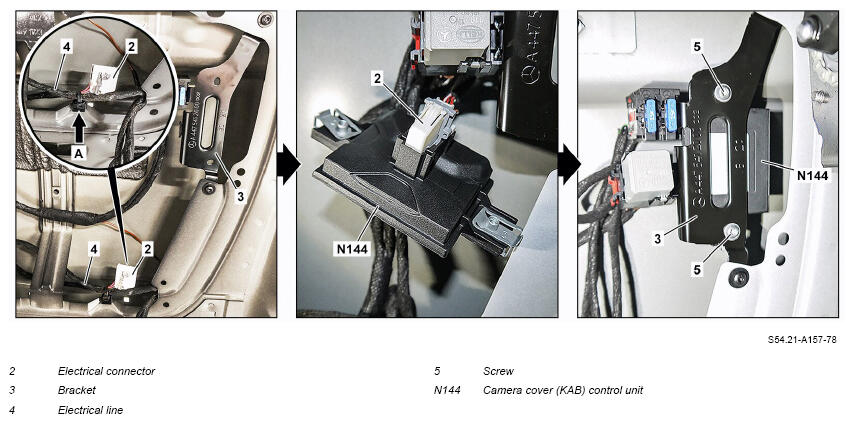

14	Route electrical connector (2) to holder (3).	To do so, detach cable tie (arrow A) from electric line (4). The electrical connector (2) for the camera cover (KAB) control unit (N144) is strapped down in the lower area of the D-pillar. Dispose of detached cable ties (arrow A) properly. To do so, observe the applicable legal requirements and specifications of the relevant country.
15	Connect electrical connector (2) to camera cover (KAB) control unit (N144).
16	Retrofit camera cover (KAB) control unit (N144) in holder (3).	Screw in bolts (2) to do this.
17	Install in the reverse sequence.	Operation steps 13 to 4.1.
	Perform initial startup
18	Install the 12 V charger.
	Maintaining on-board electrical system voltage when performing test and diagnosis work on vehicle	A sufficient power supply for the on-board electrical system battery must be guaranteed throughout the entire work procedure. Otherwise any undervoltage that occurs may damage the control units. Follow the operating instructions for the 12 V charger. Use the 12 V charger to ensure an adequate voltage (min. 12.5 V) for the on-board electrical system battery.	AR54.10-S-1127E
19	Install vehicle diagnosis system.	If XENTRY Diagnosis is not yet attached.
			AD00.00-S-2000-04E
	Service Information: Regio DVD and Retail Data Storage	Always use the latest XENTRY Diagnosis software release. The operation steps in XENTRY Diagnosis must be followed precisely at all times. If XENTRY Diagnosis is already connected to vehicle, ↓ continue with operation step 20.	SI00.01-D-0044SG
20	Commission camera cover (KAB) control unit (N144).	To do this, select the following menu items: Quick test view → N144 camera cover (KAB) → Adaptations → Commissioning → Commissioning of control unit
	Perform SCN coding
21.1	Perform SCN coding in reversing camera (RFK) control unit (B84/20).	Model 447 with code FR8 (Reversing camera)
	SCN coding of control units	To do this, select the following menu items: Quick test view → B84/20 - Reversing camera (RFK) control unit → Adaptations → Control units update → Updating of SCN coding Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
21.2	Perform SCN coding in 360° camera control unit (N153).	Model 447.8 with code JS1 (360° Camera)
	SCN coding of control units	To do this, select the following menu items: Quick test view → SVS - 360° camera (N153) → Adaptations → Control units update → Updating of SCN coding Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
	Carry out calibration
22.1	Calibrate reversing camera (RFK) control unit (B84/20) using diagnostic system and calibration device.	Model 447 with code FR8 (Reversing camera)
			AR54.65-S-0030-01EA
		Calibration device	Fig 1
22.2	Calibrate rear 360° camera (B84/4) using diagnostic system.	Model 447.8 with code JS1 (360° Camera)
23	Remove vehicle diagnosis system.
24	Remove the 12 V charger.
	Maintaining on-board electrical system voltage when performing test and diagnosis work on vehicle		AR54.10-S-1127E
	Check
25	Perform function check on reversing camera or 360° camera.
	Request
26	Ask customer to hand over operator manual insert that refers to the reduced functionality of the camera cover.	If installed. Dispose of the operator manual insert handed over by the customer properly. To do so, observe the applicable legal requirements and specifications of the relevant country.

Fig 1: Identifying Calibration Device (000 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
