Remove/Install Lock For Bed Extension - AR91.75-S-9872E
Model 447.7
with code ZH6 (Marco Polo ACTIVITY)
Model 447.8
with code V9B (FUN 2 package: Sleeper)
Model 447.8
with code ZK7 (Equipment line MARCO POLO)
Model 447.8 with code ZK7 (MARCO POLO equipment line)
Model 447.7 with code ZH6 (Marco Polo ACTIVITY) or model 447.8 with code V9B (FUN 2 package: sleep)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Completely fold up bed extension | ||
| 2 | Remove screw/bolt (2) | ||

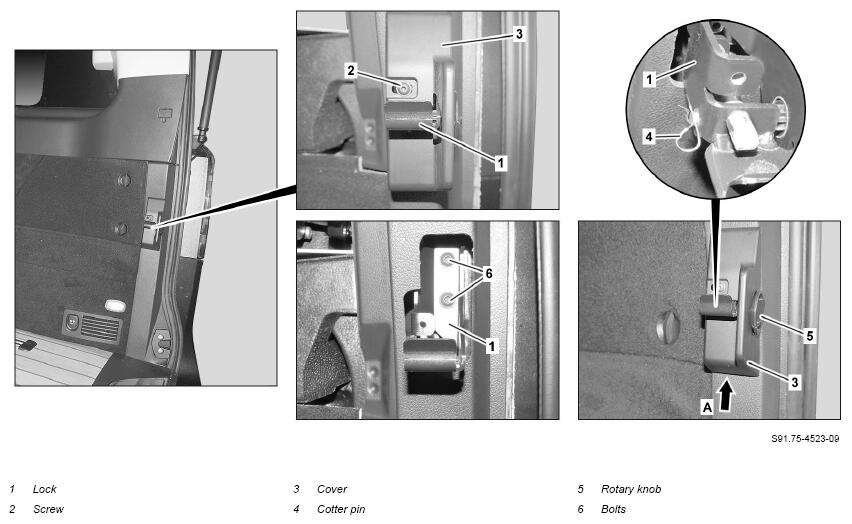

| 3.1 | Unclip cover (3) in lower area (arrow A) | Model 447.8 with code ZK7 (Equipment line MARCO POLO) |
Fig 1 |

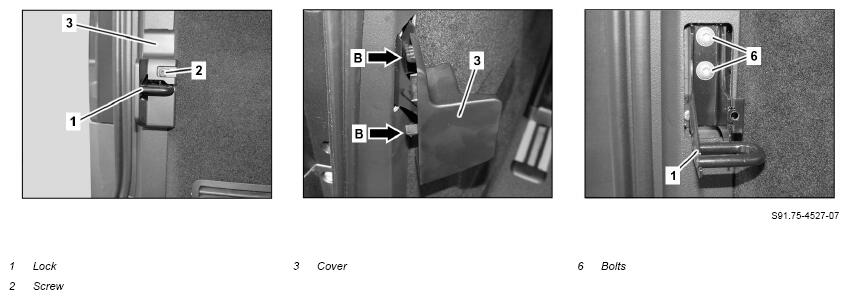

| 3.2 | Unclip cover (3) from catch hooks (arrows B) | Model 447.7 with code ZH6 (Marco Polo ACTIVITY) Model 447.8 with code V9B (FUN 2 package: Sleeper) |
Fig 1 |
| 4 | Remove cotter pin (4) | Model 447.8 with code ZK7 (Equipment line MARCO POLO) |
|
| 5 | Remove rotary knob (5) from lock (1) | Model 447.8 with code ZK7 (Equipment line MARCO POLO) |
|
| 6 | Remove cover (3) from lock (1) | ||
| 7 | Remove screws/bolts (6) and remove lock (1) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Perform function test of lock (1) |
