Check Condition Of Positive Line Of Auxiliary Battery And Optimize Routing (Code: VS2KAZUBAT) - SM54.10-S-0049A

Model 447.703 #3 as of 570911 up to 852723

with code XM0 (Facelift)

with code ZH6 (Marco Polo ACTIVITY)

Model 447.813 #3 as of 553048 up to 852727

with code XM0 (Facelift)

with code ZK7 (Equipment line MARCO POLO)

Model 447.813 #3 as of 591189 up to 853611

with code XM0 (Facelift)

with code Z93 (Marco Polo HORIZON)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
Notice	Notes on battery		AH54.10-P-0001-01A
Notice	Assessment of damage in wiring harnesses		AH00.19-P-1000-05A
	Notes on cable protection		AH00.19-P-1000-11A
	Advantages of repairing wiring harnesses		AH00.19-P-1000-03A
	Repair methods for wiring harnesses		AH00.19-P-1000-04A
	Check
1	Check whether vehicle is affected by measure.	Affected vehicles: Check condition of positive line of auxiliary battery and optimize routing (code: VS2KAZUBAT) For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. There is no need to also check the affected vehicles in the workshop information system (WIS) or vehicle list.	SM54.10-S-0049-01AAA
	Remove
2	Detach ground line of on-board electrical system battery.		AR54.10-S-0003E
3	Remove left front seat.		AR91.10-S-1000E
4	Remove left seat console (1).		AR91.10-S-3000E
5	Remove auxiliary battery (G1/1).	Model 447 with code E28 (Auxiliary battery for retrofit consumer) Model 447 with code EE8 (Battery 12V 100 Ah)	AR54.10-S-0007E
6	Expose positive line (2) and electrical subharness (11) of auxiliary battery (G1/1).	Remove any existing cable ties and fabric tape from positive terminal up to branch off main wiring harness (arrow A).
	Check
7	Check positive line (2) of auxiliary battery (G1/1).	Check positive line (2) of auxiliary battery (G1/1) for damage (e.g., chafe marks etc.) in repair area. If positive line (2) of auxiliary battery (G1/1) is damaged, ↓ continue with operation step 8. If positive line (2) of auxiliary battery (G1/1) is not damaged, ↓ continue with operation step 9.
	Replace
8	Replace positive line (2) of auxiliary battery (G1/1).	Only if positive line (2) of auxiliary battery (G1/1) is damaged.	SM54.10-S-0049-02A
	General repair methods for wiring harness		AR00.19-S-0100E
	Protect repair area after cable repairs		AR00.19-P-0100-08A
	000 588 00 84 00 Heat gun	If further electrical wiring harnesses in the repair area are damaged, they must be repaired properly. The positive line (2) is supplied with additional electric lines they are not required as part of this service measure and can be disposed of properly. To do so, observe the applicable legal requirements and specifications of the relevant country. Dispose of replaced components correctly. To do so, observe the applicable legal requirements and specifications of the relevant country.	WS54.00-P-0049B
		M6	*BA00.10-Z-1002-01KOA
		Nut, wiring harness to auxiliary battery relay	*BA54.18-Z-1005-02KOA
	Routing

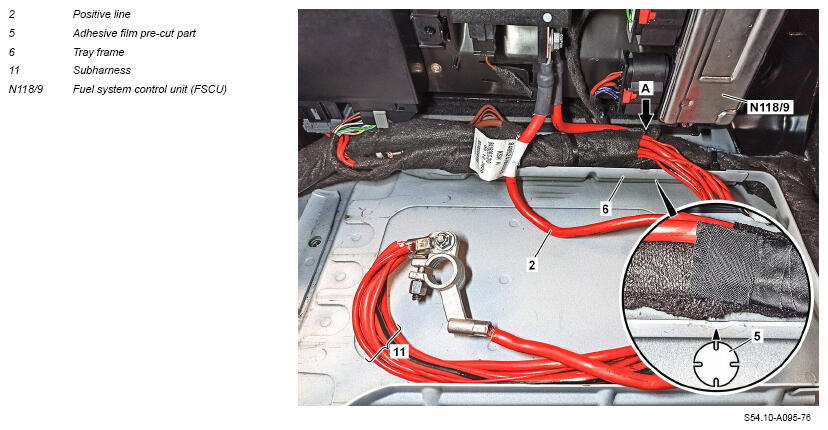

9	Attach adhesive foil pre-cut part (5) to position shown on tray frame (6).	Apply adhesive foil pre-cut part (5) exactly over cut of tray frame (6) as shown.

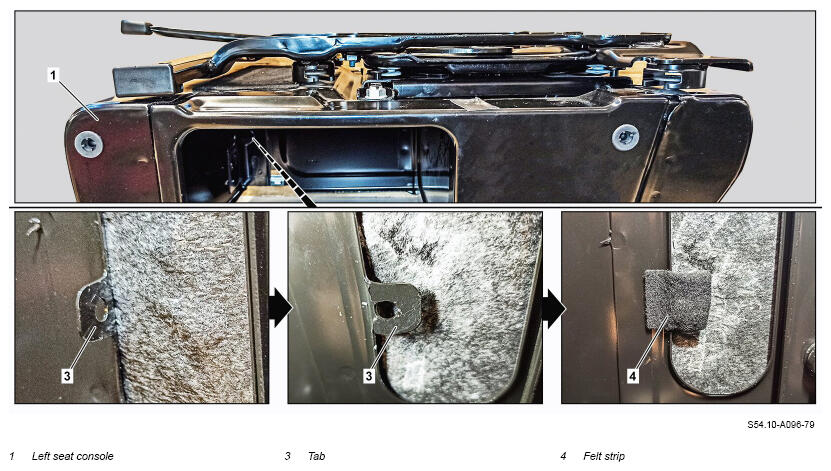

10	Bend shackle (3) of left seat console (1) and fit with a felt strip (4).
11	Wrap fabric tape around positive line (2) of auxiliary battery (G1/1) together with electrical subharness (11).	Use fabric tape A 002 983 91 13, see parts ordering note table. The fabric tape is sufficient for several vehicles.	SM54.10-S-0049-03A

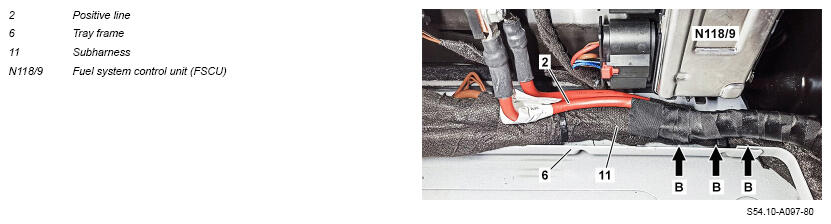

12	Route positive line (2) of auxiliary battery (G1/1) together with electrical subharness (11) as shown (arrows B).	Route positive line (2) in front of fuel system control unit (FSCU) (N118/9) (if present). The positive line (2) and the electrical subharness (11) must run parallel to the tray frame (6), as shown (arrows B).

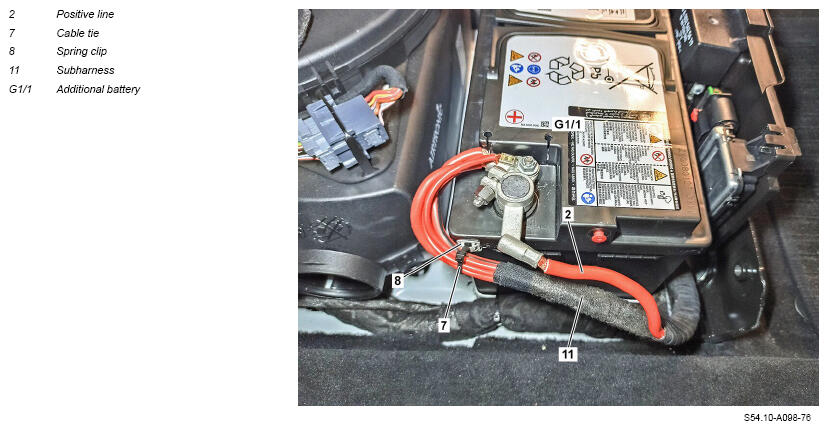

13	Fasten positive line (2) of auxiliary battery (G1/1), at position shown, using a cable tie (7) and spring clip (8).
	Install
14	Install auxiliary battery (G1/1).	Model 447 with code E28 (Auxiliary battery for retrofit consumer) Model 447 with code EE8 (Battery 12V 100 Ah) When installing the auxiliary battery (G1/1), make sure that the positive line (2) and the electrical subharness (11) do not chafe on the left seat console (1). Otherwise, the electrical system of the vehicle may be damaged. The positive line (2) and the electrical subharness (11) must run parallel to the tray frame (6), as shown (arrows B).	AR54.10-S-0007E
15	Install left seat console (1).		AR91.10-S-3000E
16	Install left front seat.		AR91.10-S-1000E
17	Attach ground line of on-board electrical system battery.		AR54.10-S-0003E
