Wrap Positive Line Of Auxiliary Battery In Tape (Code: VS2KAZUBAT) - SM54.10-S-0049-03A

Model 447.703 #3 as of 570911 up to 852723

with code XM0 (Facelift)

with code ZH6 (Marco Polo ACTIVITY)

Model 447.813 #3 as of 553048 up to 852727

with code XM0 (Facelift)

with code ZK7 (Equipment line MARCO POLO)

Model 447.813 #3 as of 591189 up to 853611

with code XM0 (Facelift)

with code Z93 (Marco Polo HORIZON)

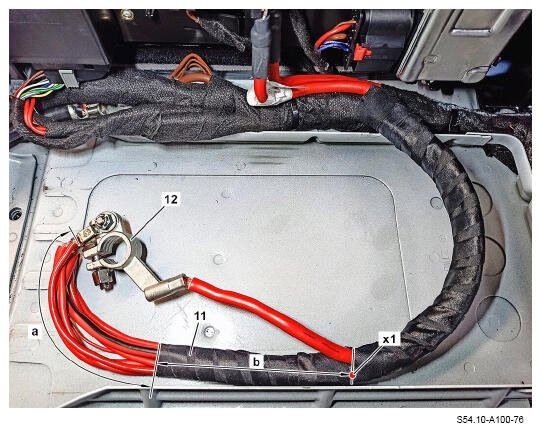

1. Measure and mark dimension (a) of electrical subharness (11).

   Dimension (a) must be approx. 120 mm.

2. Measure dimension (b) of electrical subharness (11) and mark (x1).

   Dimension (b) must be approx. 120 mm.

   Courtesy of MERCEDES-BENZ USA

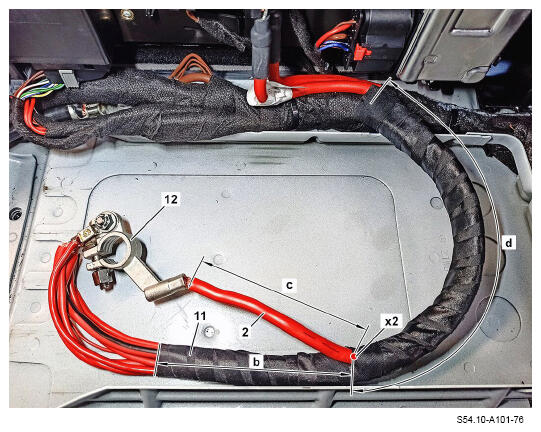

3. Measure dimension (c) of positive line (2) and mark (x2).

   Dimension (c) must be approx. 110 mm.

4. Fix positive line (2) with electrical subharness (11) in place at marked points (x1, x2) using fabric tape.

   Use fabric tape A 002 983 91 13.

5. Measure and mark dimension (d) as from marked points (x1, x2).

   Dimension (d) must be approx. 210 mm.

6. Wrap fabric tape around electrical subharness (11) along dimension (b).

   Use fabric tape A 002 983 91 13.

7. Wrap fabric tape around electrical subharness (11) together with positive line (2) along dimension (d).

   Use fabric tape A 002 983 91 13.
