Replace Positive Line Of Auxiliary Battery With Removed Left Seat Base (Code: VS2KAZUBAT) - SM54.10-S-0049-02A
Model 447.703 #3 as of 570911 up to 852723
with code XM0 (Facelift)
with code ZH6 (Marco Polo ACTIVITY)
Model 447.813 #3 as of 553048 up to 852727
with code XM0 (Facelift)
with code ZK7 (Equipment line MARCO POLO)
Model 447.813 #3 as of 591189 up to 853611
with code XM0 (Facelift)
with code Z93 (Marco Polo HORIZON)
MODIFICATION NOTES
| 01.09.2022 | Information on "Delivery of positive line (2) with additional electric lines", added. | Operation step 4 |
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
WIRING HARNESS
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA54.18-Z-1005-02KOA | Nut, wiring harness to auxiliary battery relay | Nm | 9 |
Remove

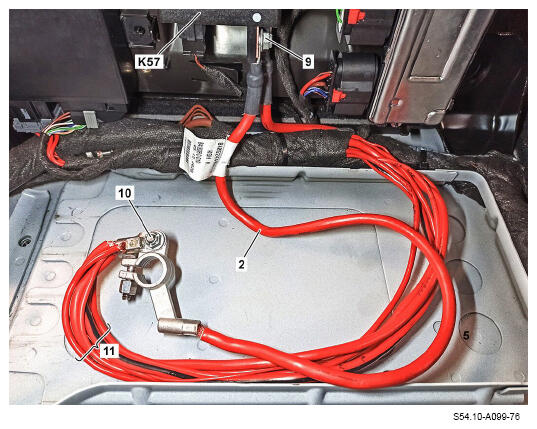

- Remove nut (9) from battery cutoff relay (K57).
- Remove nut (10).
- Expose positive line (2).
Dispose of removed positive line (2) properly. To do so, observe the applicable legal requirements and specifications of the relevant country.
Replace
- Connect new positive line (2) to electrical subharness (11) and attach nut (10)
.
- Attach nut (9) to battery cutoff relay (K57)
