Remove/Install Rear Axle Shaft - AR35.30-P-0620RQ

Model 190, 197

Courtesy of MERCEDES-BENZ USA

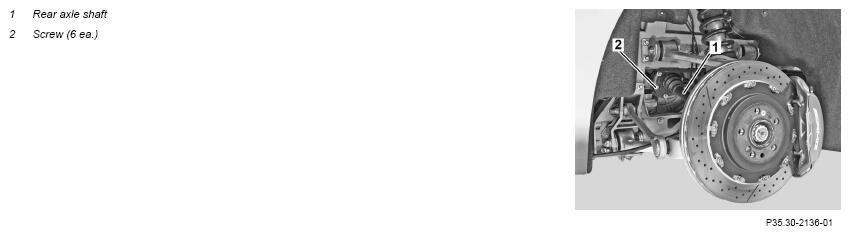

Shown on model 190 with code B07 (AMG - Ceramic brake system)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on handling, transport and storage of composite brake disks	Model 190, 197 except code B07 (AMG - ceramic brake system)	AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks	Model 190, 197 with code B07 (AMG - ceramic brake system)	AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove hub cover from rear wheel.	If hub cover cannot be removed, ↓ remove rear wheel, remove hub cover and remount rear wheel.
			AR40.10-P-1100RQ
2	Loosen collar nut of rear axle shaft (1).	The vehicle must be standing on its wheels for this.
		Socket wrench bit	Fig 2
3	Remove rear wheel.		AR40.10-P-1100RQ
4	Remove collar nut of rear axle shaft (1).		AR35.30-P-0115-01RQ
		Socket wrench bit	Fig 2
5	Remove brake caliper and secure with connected lines on vehicle against falling down.	Model 190 with code B07 (AMG - ceramic brake system)	AR42.10-P-0080RGA
		Model 190 except code B07 (AMG - ceramic brake system)	AR42.10-P-0080RG
		Model 197	AR42.10-P-0080RQ
		Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function.
6	Release upper transverse control arm from wheel carrier.		AR35.20-P-0121RQ
7.1	Remove tie rod at wheel carrier.	Model 190 except code 201 (Rear axle steering) Model 197
			AR35.20-P-0109RQ
7.2	Remove actuator of rear axle steering.	Model 190 with code 201 (Rear axle steering)	AR46.80-P-0012RG
8.1	Remove torsion bar linkage from wheel carrier.	Model 190	AR32.35-P-3329RG
8.2	Remove torsion bar linkage from lower control arm.	Model 197
9	Remove screws (2) and remove rear axle shaft (1).	Do not move vehicle with removed rear axle shaft (1) on the wheels any longer. Otherwise the wheel bearing may be damaged.
		If the rear axle shaft (1) is firmly seated, ↓ push rear axle shaft (1) out of wheel hub.
		Extraction and insertion tool	Fig 1
	Check
10	Check constant velocity joint and boot for damage.	If there is a problem, ↓ Replace rear axle shaft (1) completely.
11	Check boot and upper ball joint at upper transverse control arm for damage.
		Model 190	AP35.20-P-3552D
		Model 197.3/4	AP35.20-P-3555RQ
	Install
12	Insert rear axle shaft (1) into wheel hub.	Do not damage boots of the rear axle shaft (1).
		Extraction and insertion tool	Fig 1
13	Position and tighten screws (2).
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		Replace screw/bolts (2).
		Bolt, rear axle shaft to transmission	*BA35.30-P-1002-01E
14.1	Attach torsion bar linkage to wheel carrier.	Model 190
		Replace screws and nuts of suspension components.	AR32.35-P-3329RG
14.2	Attach torsion bar linkage to lower control arm.	Model 197
		Replace screws and nuts of suspension components.
		Nut, torsion bar linkage to transverse control arm	*BA32.35-P-1005-03D
15.1	Mount tie rod onto wheel carrier.	Model 190 except code 201 (Rear axle steering) Model 197
			AR35.20-P-0109RQ
15.2	Install actuator of rear axle steering.	Model 190 with code 201 (Rear axle steering)	AR46.80-P-0012RG
16	Install upper transverse control arm on wheel carrier.		AR35.20-P-0121RQ
		Replace screws and nuts of suspension components.
17	Install brake caliper.	Model 190 with code B07 (AMG - ceramic brake system)	AR42.10-P-0080RGA
		Model 190 except code B07 (AMG - ceramic brake system)	AR42.10-P-0080RG
		Model 197	AR42.10-P-0080RQ
		Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function.

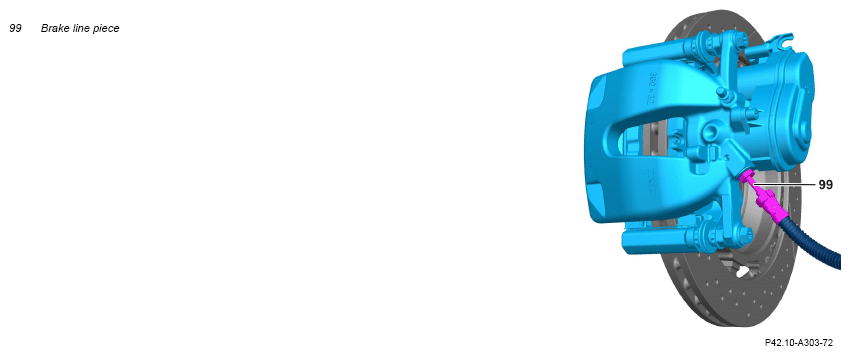

		Model 190 The brake line pieces (99) of the brake hoses must not be bent. Replace the affected brake hoses with damaged brake line pieces (99) immediately.
		If brake line piece (99) is damaged, ↓ Replace affected brake hose.
		Model 190	AR42.10-P-0013RG
18	Install rear wheel.		AR40.10-P-1100RQ
19	Tighten collar nut of rear axle shaft (1).		AR35.30-P-0115-01RQ
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
		Replace collar nut of rear axle shaft (1).
		The vehicle must be standing on its wheels for this.
		Do not yet secure the collar nut of the rear axle shaft (1) using the caulker.
		Collar nut, rear axle shaft to rear axle shaft flange	*BA35.30-P-1001-01E
		Socket wrench bit	Fig 2
20	Remove rear wheel.		AR40.10-P-1100RQ
21	Secure collar nut of rear axle shaft (1) using caulker.		AR35.30-P-0115-01RQ
22	Install rear wheel.		AR40.10-P-1100RQ
23	Attach hub cover to rear wheel.

Fig 1: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench Bit (220 589 01 09 00)

Courtesy of MERCEDES-BENZ USA
