Check Condition Of Rear Axle And Control Arms - AP35.20-P-3552D
Model 190
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory tasks | |||
| 1 | Release parking brake | ||
| Remove | |||
| 2 | Remove center underfloor covering | ||
| AR61.30-P-1001RG | |||
| Check | |||
| 3 | Check wheel bearing by firmly pulling, pushing and turning the wheels | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check rear axle carrier for cracks, deformation and corrosion | If there are problems: ↓ Rectify problem subject to separate repair order. |
|

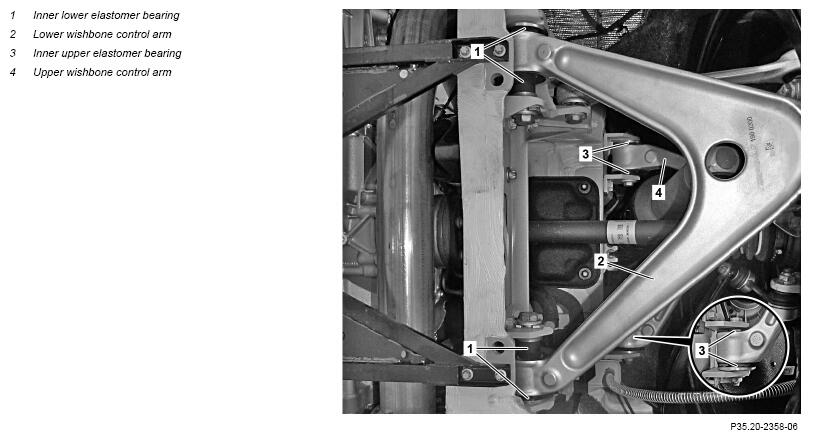

| 5 | Check inner lower elastomer bearings (1) of lower wishbone control arms (2) for cracks, deformation and wear and check for play by tugging and pressing firmly | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 6 | Check inner upper elastomer bearings (3) of upper wishbone control arms (4) for cracks, deformation and wear and check for play by tugging and pressing firmly | If there are problems: ↓ Rectify problem subject to separate repair order. |
|

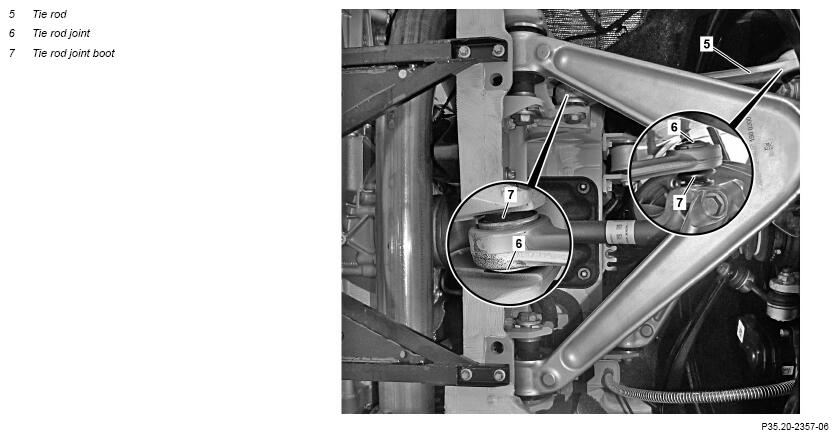

| 7 | Check tie rod ball joints (6) of tie rods (5) for cracks, deformation and wear as well as for play by firmly tugging and pulling | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 8 | Check tie rod ball joint boots (7) for cracks, deformation and wear | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 9 | Check outer lower elastomer bearing (8) for cracks, deformation and wear as well as play by firmly tugging and pushing | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 10 | Check outer upper elastomer bearing (9) for cracks, deformation and wear as well as play by firmly tugging and pushing | If there are problems: ↓ Rectify problem subject to separate repair order. |
|

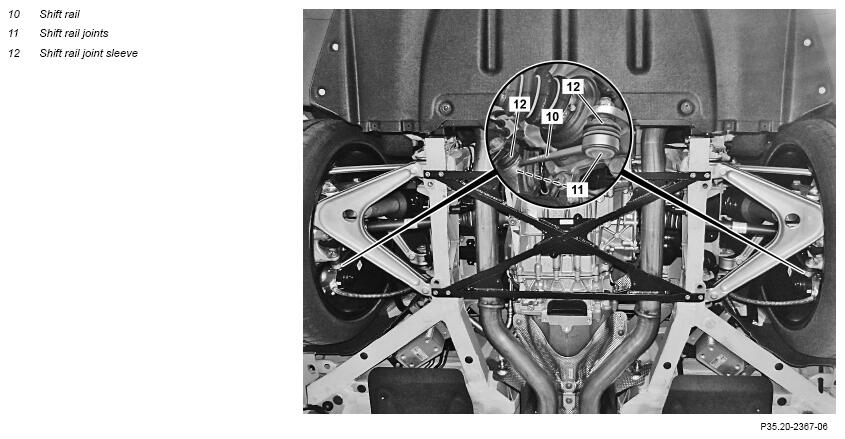

| 11 | Check shift rail joints (11) of shift rails (10) for cracks, deformation and wear as well as for play by firmly tugging and pulling | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 12 | Check shift rail joint boot (12) for condition, leaktightness and correct seating | If there are problems: ↓ Rectify problem subject to separate repair order. |
|

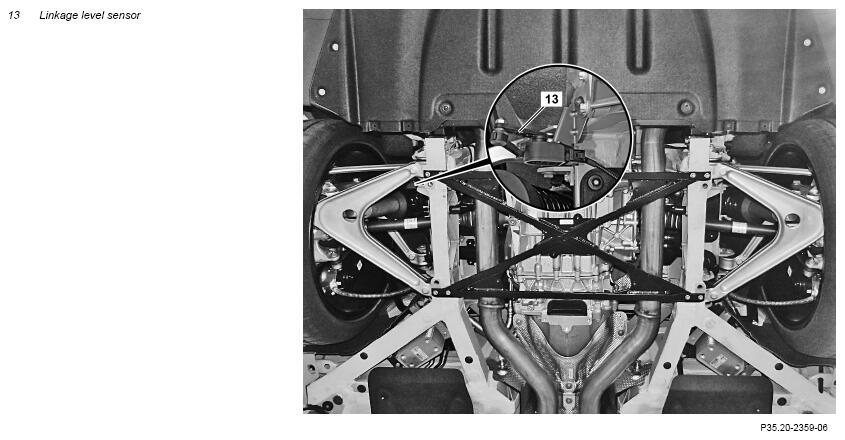

| 13 | Check linkage for level sensor (13), ball heads and sensor for correct seating, cracks, deformation, corrosion and play | Vehicles with level sensors If there are problems: ↓ Rectify problem subject to separate repair order. |
|

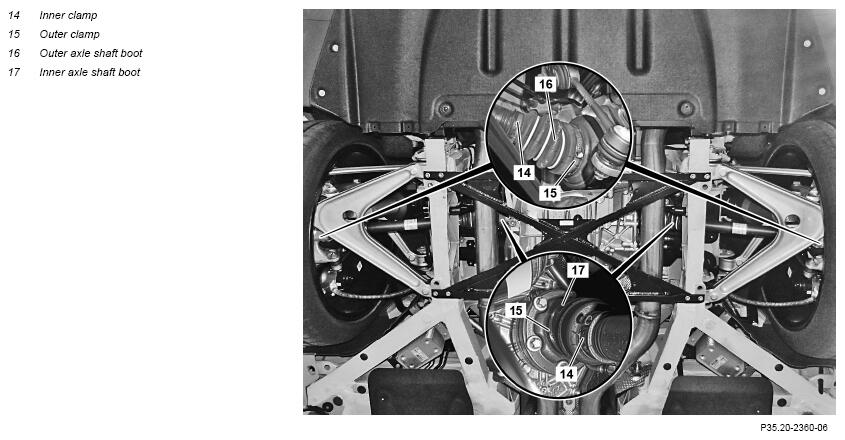

| 14 | Check inner clamps (14) and outer clamps (15) of drive shaft boots for condition and correct seating | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 15 | Check outer drive shaft boots (16) for condition, leaktightness and correct seating. | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| 16 | Check inner drive shaft boots (17) for condition, leaktightness and correct seating. | If there are problems: ↓ Rectify problem subject to separate repair order. |
|
| Install | |||
| 17 | Install underfloor paneling under the rear axle | ||
| AR61.30-P-1001RG |
