Remove/Install Rear Axle Upper Transverse Control Arm - AR35.20-P-0121RQ

Model 190

Model 197

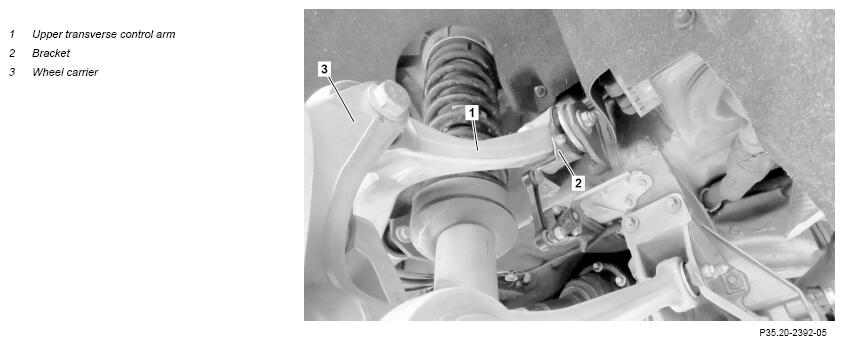

Shown on model 197, right side

Courtesy of MERCEDES-BENZ USA

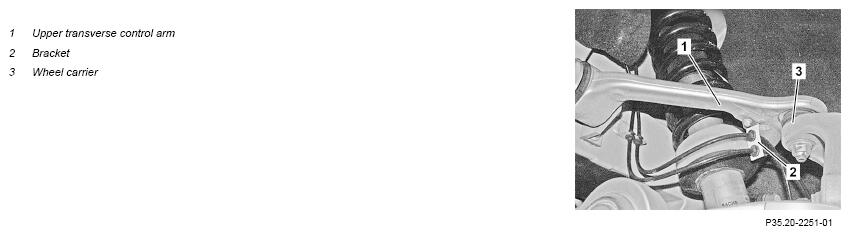

Shown on model 190, left side

Fig 1: Rear Axle Upper Transverse Control Arm Components Location - Model 190 (Shown On Left Side)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1	Secure vehicle on the lifting platform and raise	Model 190	AR00.60-P-0100RG
		Model 197	AR00.60-P-0100RQ
2	Detach rear complete wheel		AR40.10-P-1100RQ
3	Detach holder (2)	If installed.
4	Lift wheel carrier (3) using telescopic lifter and transmission platform until rear axle shaft is almost horizontal.	While working on the rear axle care must be taken to ensure that the surfaces of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Support plate	Fig 5
		Major assembly mount	Fig 6
5.1	Unscrew nut of upper transverse control arm (1) at hub/rotor assembly (3) and pry off upper transverse control arm (1) from hub/rotor assembly (3)	Model 197
		The hub/rotor assembly (3) must be secured against tilting.
		When unscrewing the nut, counterhold at the ball studs with interior torx.
		Puller	Fig 2
		Press	Fig 3
		Thrust piece	Fig 4
5.2	Unscrew screw/bolt of upper transverse control arm (1) at hub/rotor assembly (3)	Model 190
		The hub/rotor assembly (3) must be secured against tilting.
6	Lower telescopic lifter	Model 190
		It must be ensured that lines that are attached to the suspension components are not subjected to tension or kinked. In order to prevent damage.
		The hub/rotor assembly (3) must be secured against tilting.
		Support plate	Fig 5
		Major assembly mount	Fig 6
7	Unscrew screws/bolts of upper transverse control arm (1) on transverse control arm brackets and remove upper transverse control arm (1)	The transverse control arm bracket may only be detached for repair work on the body. Otherwise, the thread in the frame may be damaged.
		Model 190
		The spring must be free of tension so as to be able to remove the rear screw/bolt.
8	Perform visual check of elastomer bearing and upper ball joint of the upper transverse control arm (1) and check for wear	If a problem arises ↓ Replace upper transverse control arm (1).
	Install
9	Lift wheel carrier (3) using telescopic lifter and transmission platform until rear axle shaft is almost horizontal.	Model 190
		While working on the rear axle care must be taken to ensure that the surfaces of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		It must be ensured that lines that are attached to the suspension components are not subjected to tension or kinked. In order to prevent damage.
		The hub/rotor assembly (3) must be secured against tilting.
		Support plate	Fig 5
		Major assembly mount	Fig 6
10	Mount upper transverse control arm (1) and tighten screws/bolts of upper transverse control arm (1) at transverse control arm brackets	The upper transverse control arm (1) must be preinstalled also at hub/rotor assembly (3) before tightening the screws/bolts. So that the elastomer bearings are not under tension in ready-to-drive condition.
		Screws/bolts and nuts of suspension components must always be replaced.
		Bolt, upper transverse control arm to body	*BA35.20-P-1001-07D
11.1	Tighten nut of upper transverse control arm (1) at hub/rotor assembly (3)	Model 197
		The hub/rotor assembly (3) must be secured against tilting.
		Screws/bolts and nuts of suspension components must always be replaced.
		When tightening the nut, counterhold at the ball studs with interior torx.
		Nut, upper transverse control arm to wheel carrier	*BA35.20-P-1002-07D
11.2	Tighten screw/bolt of upper transverse control arm (1) at hub/rotor assembly (3)	Model 190
		The hub/rotor assembly (3) must be secured against tilting.
		Screws/bolts and nuts of suspension components must always be replaced.
		Nut, upper transverse control arm to wheel carrier	*BA35.20-P-1002-07D
12	Lower telescopic lifter	Support plate	Fig 5
		Major assembly mount	Fig 6
13	Mount bracket (2)	If installed.
14	Mount rear complete wheel		AR40.10-P-1100RQ
15	Detach vehicle lift safety device and lower vehicle	Model 190	AR00.60-P-0100RG
		Model 197	AR00.60-P-0100RQ
	Measure
16	Perform wheel alignment check		AR40.20-P-0200RQ

Fig 2: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Thrust Piece (129 589 10 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Support Plate (000 588 10 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Major Assembly Mount (000 588 11 62 00)

Courtesy of MERCEDES-BENZ USA
