Overview Of System Components For Electric Seats - GF91.29-P-9992RR
Model 190
With Code P64 (Memory package)

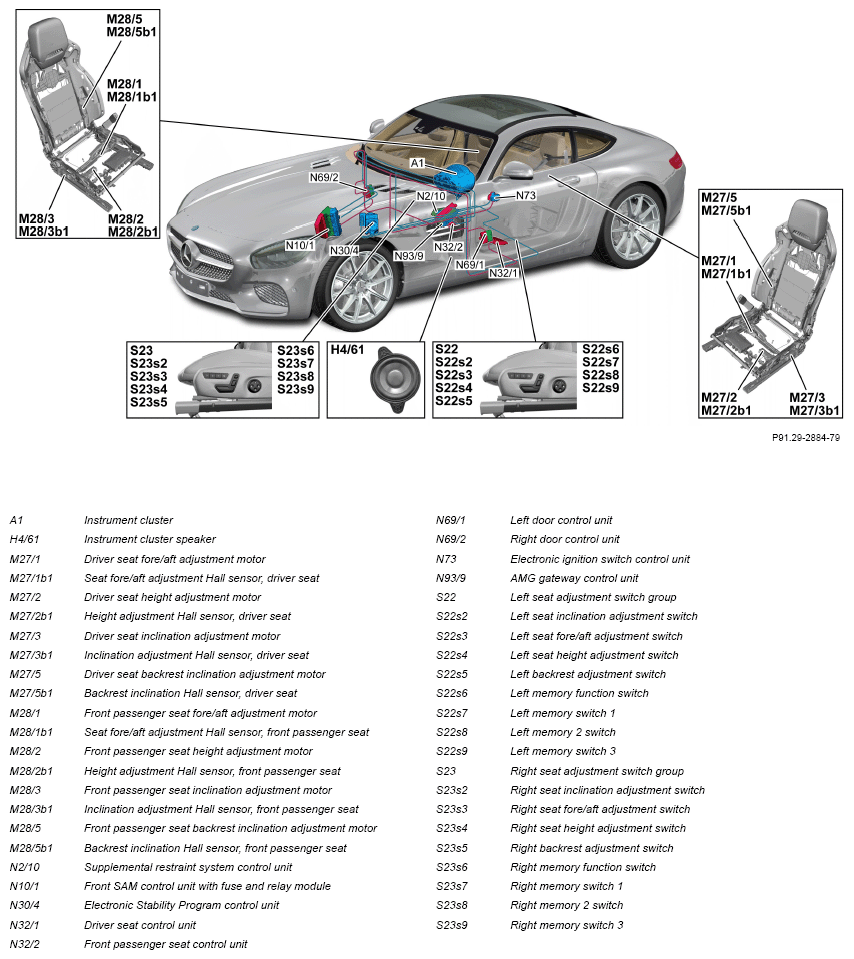

Electrical seat adjustment (ESE), shown on model 190.377

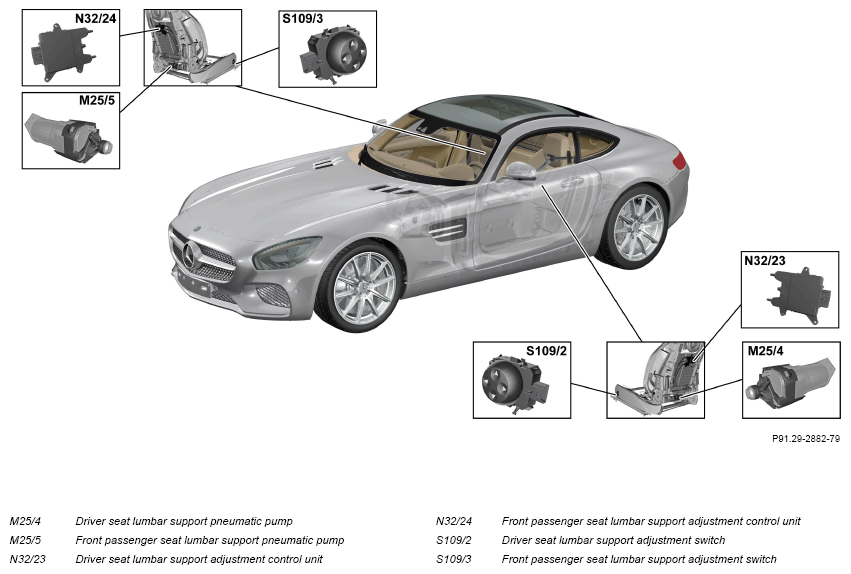

Lumbar support adjustment, shown on model 190.377

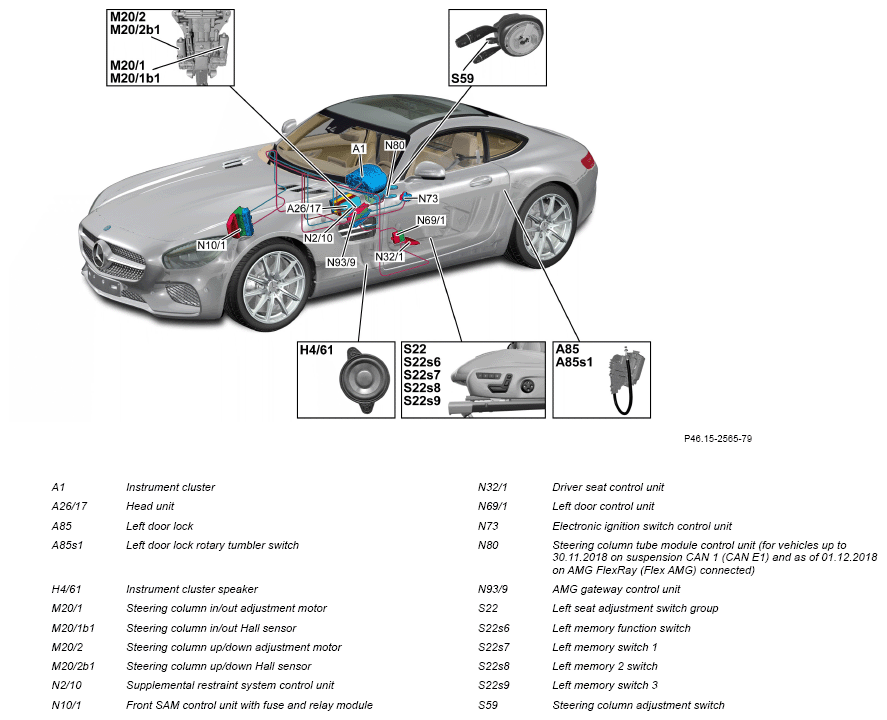

Electrical steering column adjustment, shown on model 190.377
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 with code 520 (Audio 20 USB) with code P64 (Memory package) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RR | |
| Model 190 with code 531 (COMAND APS) with code P64 (Memory package) except code 520 (Audio 20 USB) A26/17 |
GF82.85-P-3140RRA | ||
| Model 190 with code 506 (Audio 20 NTG 5.5 radio) with code P64 (Memory package) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RRB | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RR | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231RR | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241RR | |
| Component description for lumbar support control unit | N32/23, N32/24 | GF91.29-P-5281RR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 up to 11/30/18 up to model year 2019 with code P64 (Memory package) N80 |
GF54.21-P-6051RR | |
| Model 190 as of 12/1/18 as of model year 2019 with code P64 (Memory package) N80 |
GF54.21-P-6051RRM | ||
| AMG gateway control unit, component description | Model 190 with transmission 700.4 with code P64 (Memory package) N93/9 |
GF54.21-P-1001RR | |
| Table of contents for function description of electric seats | GF91.29-P-0992RR |
