Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997RR
Model 190 Up To 11/30/18
Up To Model Year 2019
With Code 218 (Rear view camera)
Model 190 Up To 11/30/18
Up To Model Year 2019
With Code 220 (PARKTRONIC system (PTS))

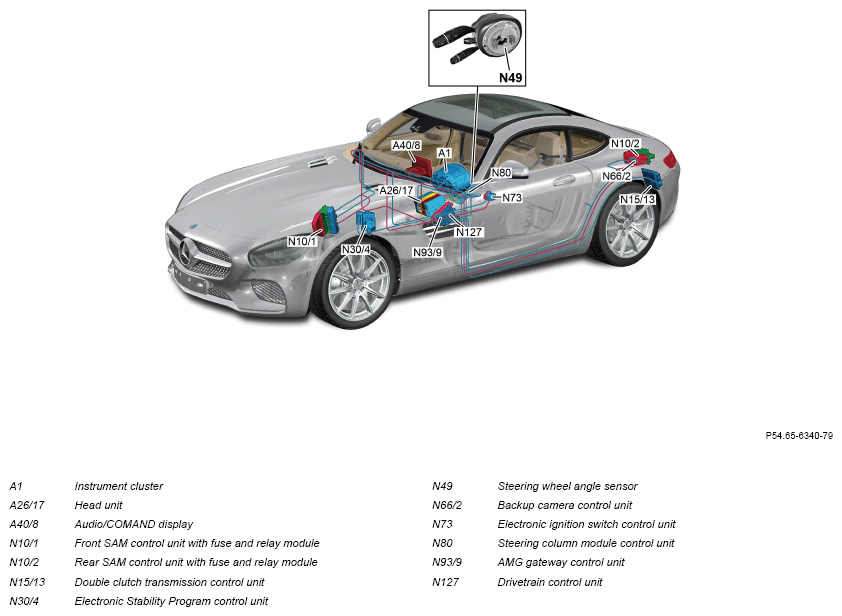

Reversing camera (With Code 218 (Reversing camera))

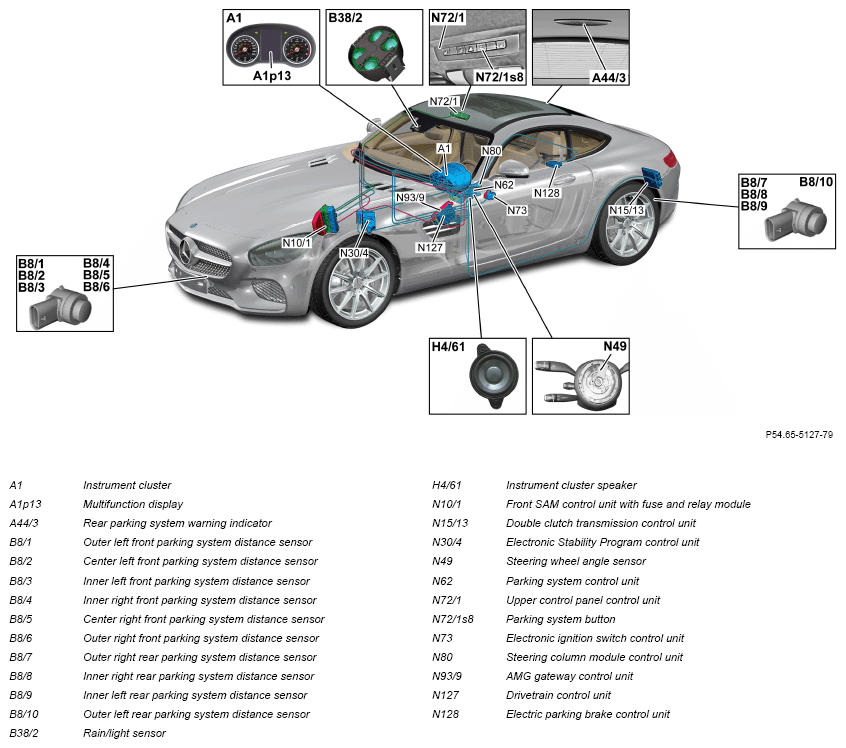

Parking system (with CODE 220 (PARKTRONIC))
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 up to 11/30/18 up to Model year 2019 with code 218 (Rear view camera) with code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 190 up to 11/30/18 up to Model year 2019 with code 220 (PARKTRONIC system (PTS)) with code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RR | |
| Model 190 up to 11/30/18 up to Model year 2019 with code 218 (Rear view camera) with code 531 (COMAND APS) except code 520 (Audio 20 USB) Model 190 up to 11/30/18 up to Model year 2019 with code 220 (PARKTRONIC system (PTS)) with code 531 (COMAND APS) except code 520 (Audio 20 USB) A26/17 |
GF82.85-P-3140RRA | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RR | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RR | |
| Dual clutch transmission control unit, component description | N15/13 | GF27.60-P-5171RR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Parking system control unit component description | Model 190 up to 11/30/18 up to Model year 2019 with code 220 (PARKTRONIC system (PTS)) N62 |
GF54.65-P-5002RR | |
| Component description for reversing camera control unit | Model 190 up to 11/30/18 up to Model year 2019 with code 218 (Rear view camera) |
GF54.65-P-5030RR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RR | |
| AMG gateway control unit, component description | Model 190 up to 11/30/18 with transmission 700.4 up to Model year 2019 with code 218 (Rear view camera) Model 190 up to 11/30/18 with transmission 700.4 up to Model year 2019 with code 220 (PARKTRONIC system (PTS)) N93/9 |
GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 up to 11/30/18 with engine 178.9 up to Model year 2019 with code 218 (Rear view camera) Model 190 up to 11/30/18 with engine 178.9 up to Model year 2019 with code 220 (PARKTRONIC system (PTS)) N127 |
GF54.21-P-2141MNB | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RR | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997RR |
