Remove/Install Detachable Parts When Replacing Windshield - AR67.10-P-1050RG
Model 190
Shown on model 190.3
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on working in engine compartment | AH60.00-P-0042-01RG | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000RG | |

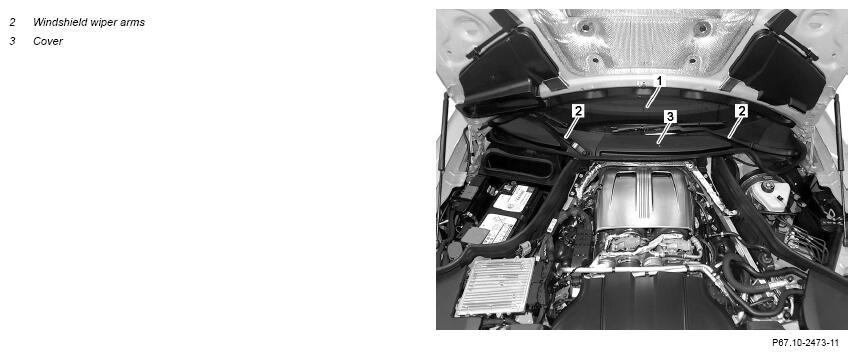

| 2 | Remove left and right wiper arms (2) | AR82.30-P-6100RQ | |
| 3 | Loosen left and right seal and remove cover (3) | ||
| Fig 1 | |||
| 4 | Unclip left and right drip rail and remove | Model 190.3 | |
| 5 | Remove left and right A-pillar paneling (5) | Model 190.4 | AR68.30-P-4050RGR |
| Model 190.3 | AR68.30-P-4050RG | ||
| 6 | Remove inside rearview mirror | AR68.40-P-0001RG | |

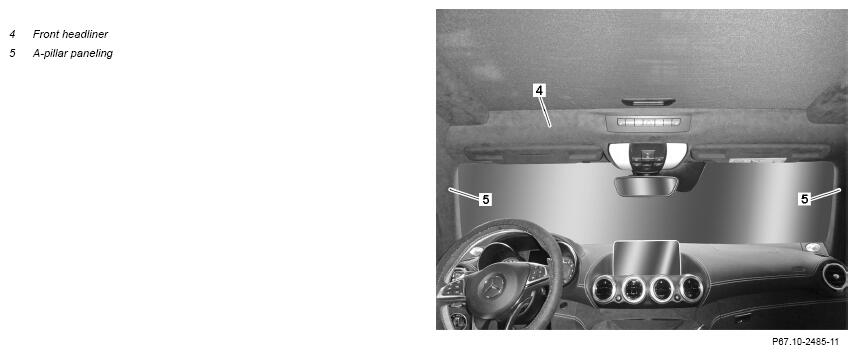

| 7 | Remove front headliner (4) | Model 190.4 | AR68.30-P-7607RGR |
| Model 190.3 | AR68.30-P-7607RG | ||
| 8 | Remove multifunction camera | Model 190 with code 22P (Lane tracking package) Model 190 with code 513 (Speed Limit Assist) Model 190 with code 608 (Adaptive Highbeam Assist) |
AR54.21-P-3000RG |
| 9 | Remove rain/light sensor | AR82.30-P-7800RG | |
| 10 | Install in the reverse order |
