Remove/Install Front Headliner - AR68.30-P-7607RG

Model 190.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

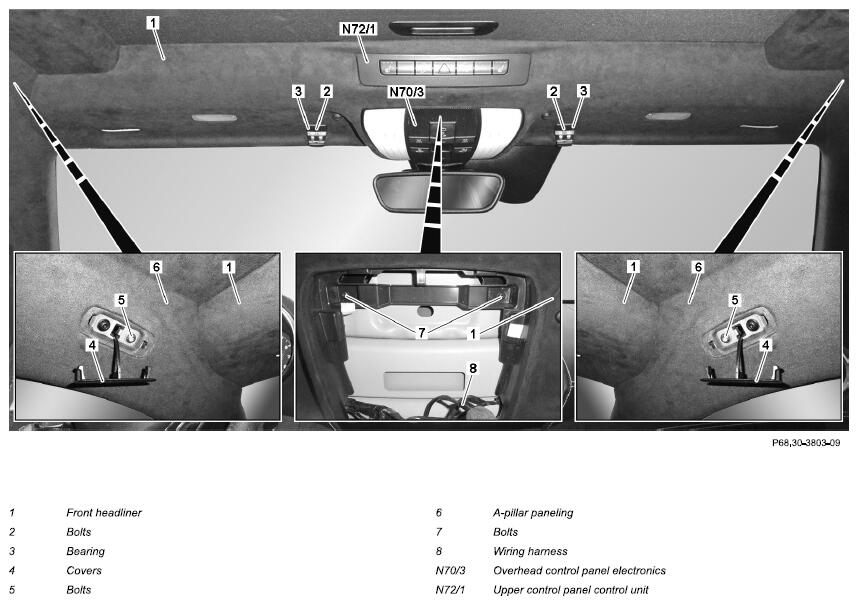

1	Remove electronic overhead control panel (N703)		AR82.20-P-1000RG
2	Remove both sun visors		AR68.60-P-5480RG
3	Unscrew bolts (2)	Do not remove bearing (3).
4	Unclip covers (4) from A-pillar paneling (6) on left and right	Mounting wedge	Fig 1
5	Unscrew front screws (5) from A-pillar paneling (6) on left and right
6	Loosen A-pillar paneling (6) on left and right in area of headliner	Mounting wedge	Fig 1
7	Remove bolts (7)
8	Unclip front headliner (1) and lower	Do not tension electrical wiring harness (8). Otherwise the electrical wiring harness (8) can be damaged. Mounting wedge	Fig 1
9	Release and disconnect electrical connection from upper control panel control unit (N72/1).	Position electrical wiring harness (8) on front headliner (1) on cutout for electronic overhead control panel (N70/3).
10	Remove front headliner (1)	When replacing front headliner (1) ↓ Remove upper control panel control unit (N72/1).	AR54.21-P-1262RG
11	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
