Remove/Install Front Headliner - AR68.30-P-7607RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open soft top
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove both sun visors		AR68.60-P-5480RG
4	Remove overhead control panel		AR82.20-P-1000RG

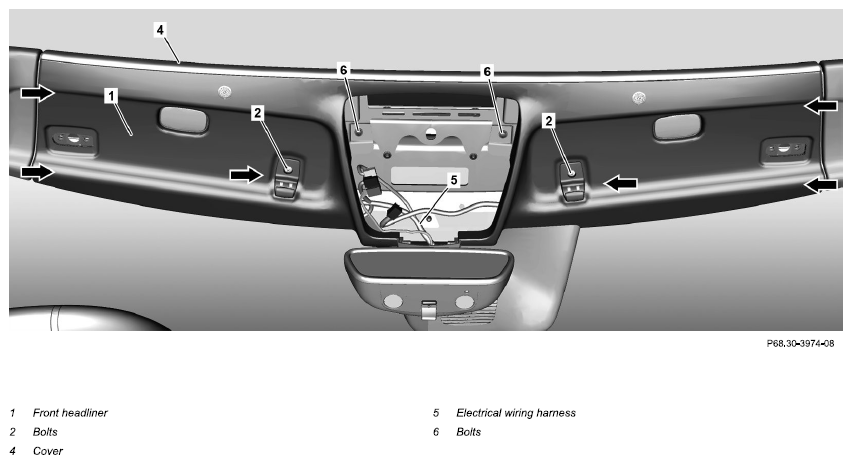

5	Unscrew bolts (2)
6	Remove bolts (6)

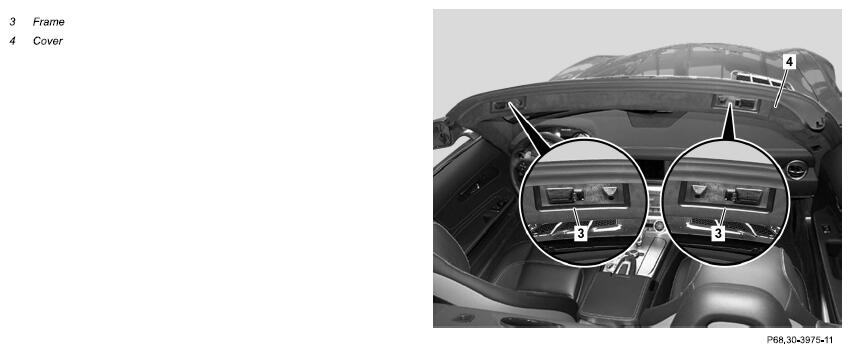

7	Unclip both frames (3)	Clip remover	Fig 1
8	Unclip paneling (4) toward rear	Clip remover	Fig 1
9	Unclip cover from inside rearview mirror		AR68.40-P-0001RG
10	Expose electrical wiring harness (5) in area of inside rearview mirror and release electrical connectors and disconnect	The number of electrical connectors varies according to vehicle equipment. So that the electrical wiring harness (5) can be guided through the opening in the front headliner (1) when removing.
11	Unclip front headliner (1) as shown on arrows and remove toward rear until electrical connectors are accessible
12	Release electrical connectors on front headliner (1) and disconnect
13	Remove front headliner (1) toward rear
14	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
