Remove/Install Wiper Arm - AR82.30-P-6100RQ

Model 190

Model 197

Courtesy of MERCEDES-BENZ USA

Shown on model 197

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
Notice	Notes on working in engine compartment	Model 190	AH60.00-P-0042-01RG
	Remove
1	Move windshield wiper system to park position
2	Switch off ignition, remove transmitter key if necessary and place transmitter key down outside of KEYLESS-GO transmission range
3	Open hood	Model 190, 197
		Model 190	AR88.40-P-1000RG
4	Remove caps (3)

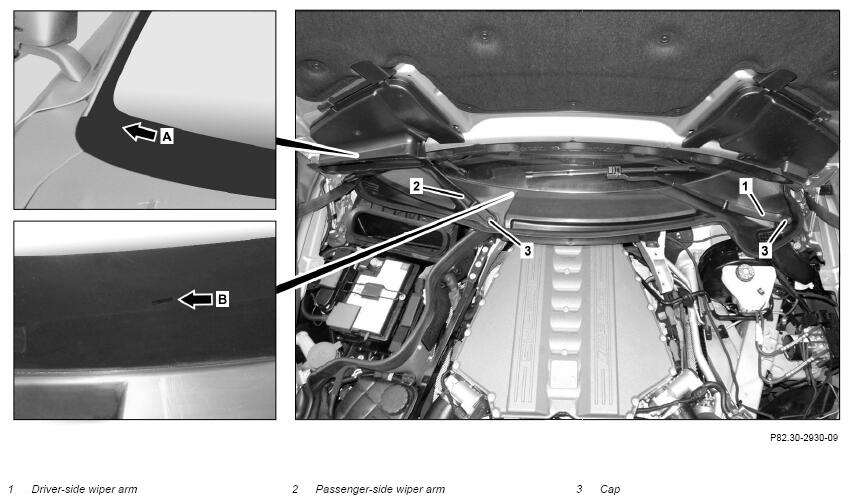

5	Unscrew nuts, remove driver-side wiper arm (1) and passenger-side wiper arm (2)	Puller	Fig 1
	Install
6	Switch on ignition	Ignition must be switched on so that wiper motors self-lock and do not turn when tightening the wiper arms.
		Ensure that windshield wiper system is switched off and is not switched on again.
7	Position wiper blade of passenger-side wiper arm (2) on assembly marking (arrow A) in windshield silk-screen print and tighten nut	Nut, wiper arm to wiper motor	*BA82.30-P-1002-01N
8	Position wiper blade of driver-side wiper arm (1) on assembly marking (arrow B) in windshield silk-screen print and tighten nut	Nut, wiper arm to wiper motor	*BA82.30-P-1002-01N
9	Install caps (3)

WINDSHIELD WIPER

Number	Designation		Model 190	Model 197
BA82.30-P-1002-01N	Nut, wiper arm to wiper motor	Nm	22	22

Fig 1: Identifying Puller (001 589 57 33 00)
