Remove/Install Paneling On A-pillar - AR68.30-P-4050RG

Model 190.3

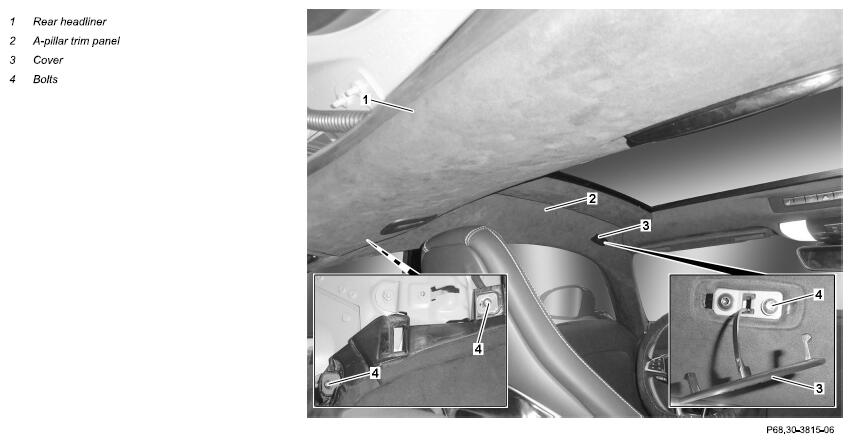

G16682470Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Unclip side paneling In rear and place into vehicle with connected belt strap IMPORTANT Side paneling can remain in vehicle. AR68.30-P-4780RG
2 Remove rear headliner (1)   AR68.30-P-7608RG
3 Unclip cover (3)
4 Remove bolt s (4)
5 Remove A-pillar trim (2) IMPORTANT A-pillar trim (2) is clipped in front area.
6 Install in the reverse order
