Remove/Install Inside Rearview Mirror - AR68.40-P-0001RG
Model 190
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of transmitter (garage door opener) of inside rearview mirror (A67) | Model 190 with code 231 (Garage door opener) When replacing inside rearview mirror (A67). | |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A | ||
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Unclip overhead control panel electronic circuitry (N70/3) and lower at rear | AR82.20-P-1000RG | |

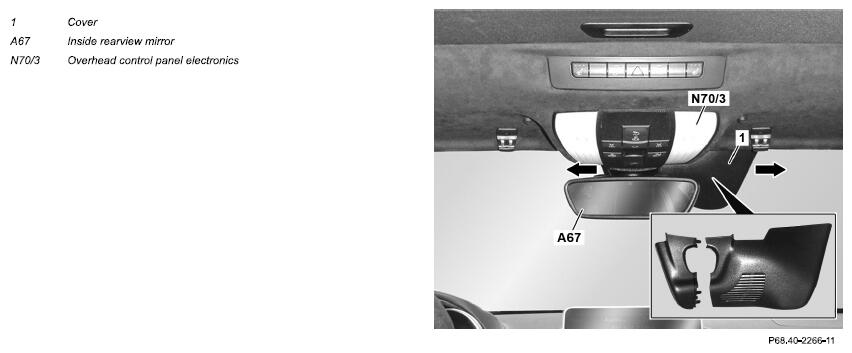

| 4 | Unclip cover (1) from mirror base in direction of arrow | ||

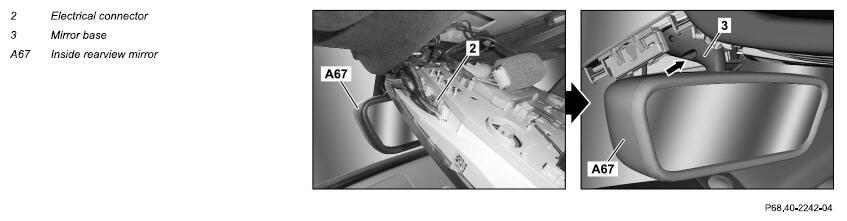

| 5 | Turn inside rearview mirror (A67) on mirror base (3) 60° manually or with suitable tool and remove from mirror holder | ||
| 6 | Release and disconnect electrical connection (2) | ||
| 7 | Remove subharness and inside rearview mirror (A67) | ||
| 8 | Install in the reverse order | ||
| Adjust | |||
| 9 | Adjust inside rearview mirror (A67) to steering variant | When replacing inside rearview mirror (A67). | AR68.40-P-0001-01A |
